Agilent Technologies E4438C

Chapter 9 293
BERT
Bit Error Rate Tester–Option UN7

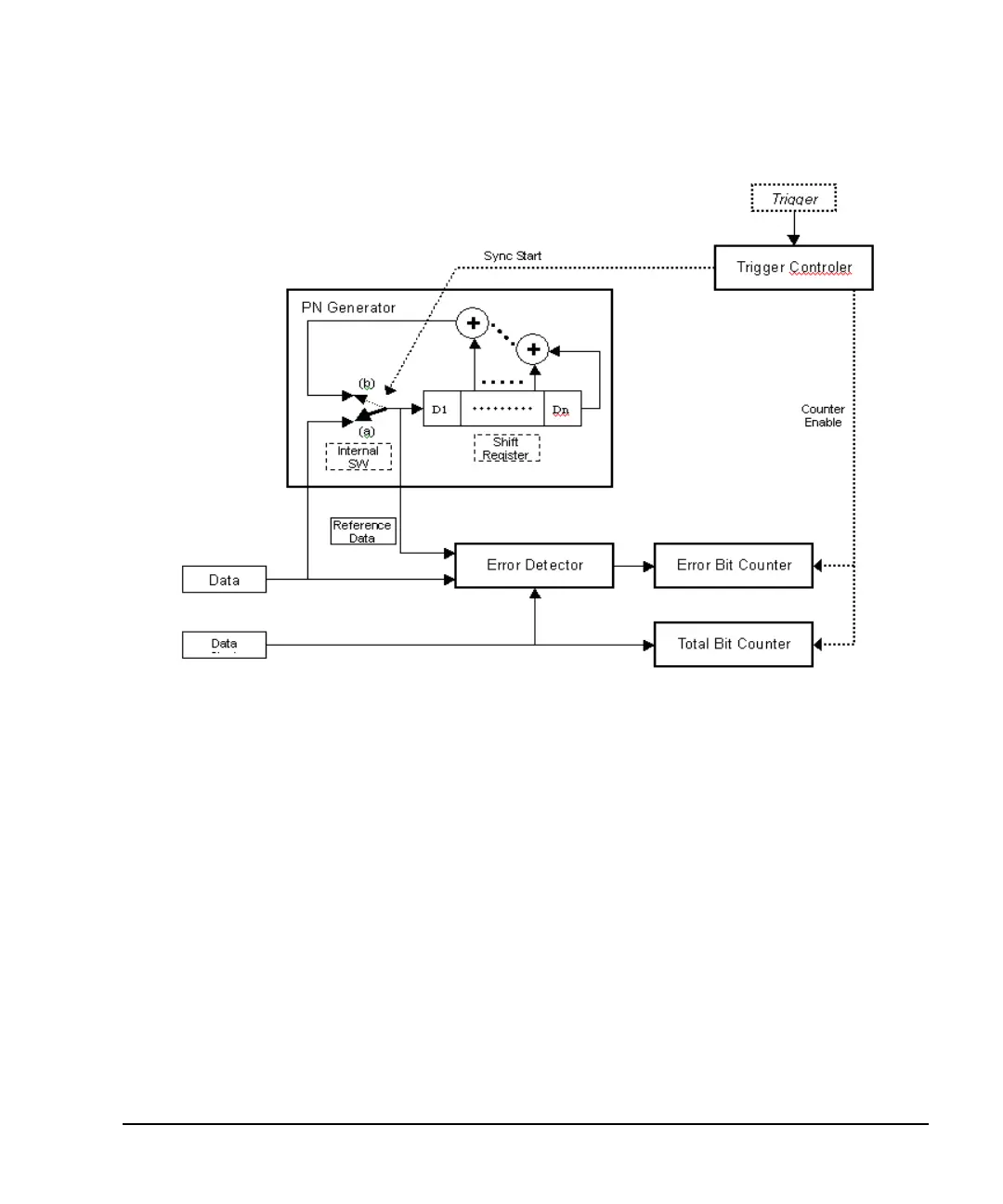

Figure 9-24
In this example, the triggering sequence is where you have an incoming data clock and data bit sequences,
the trigger is active, and the BERT measurement begins. Refer to Figure 9-25.
