294 Chapter 9
BERT
Bit Error Rate Tester–Option UN7

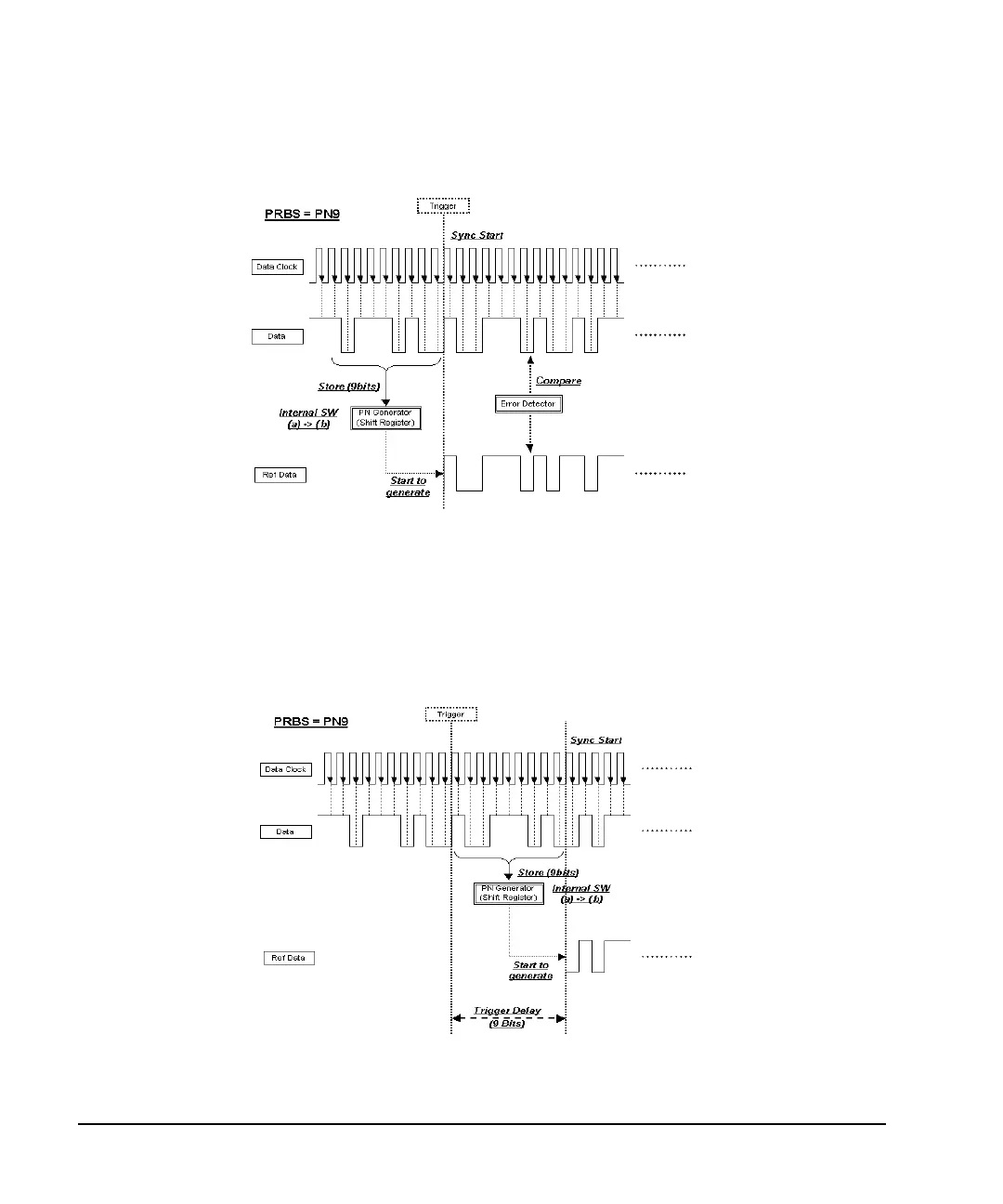

Figure 9-25
In this example, synchronization occurs after receiving a trigger.
The reference data is generated by stored data bits. If the BERT measurement accepts data bits immediately
after receiving a trigger, set the trigger delay to On and the trigger delay count to a value corresponding to
the data format. For PN9 set the delay to 9. Refer to Figure 9-26.
Figure 9-26
In this example, the triggering sequence is where the trigger delay is active with a cycle count.
