Chapter 15 433
W-CDMA Digital Modulation for Component Test
W-CDMA Concepts

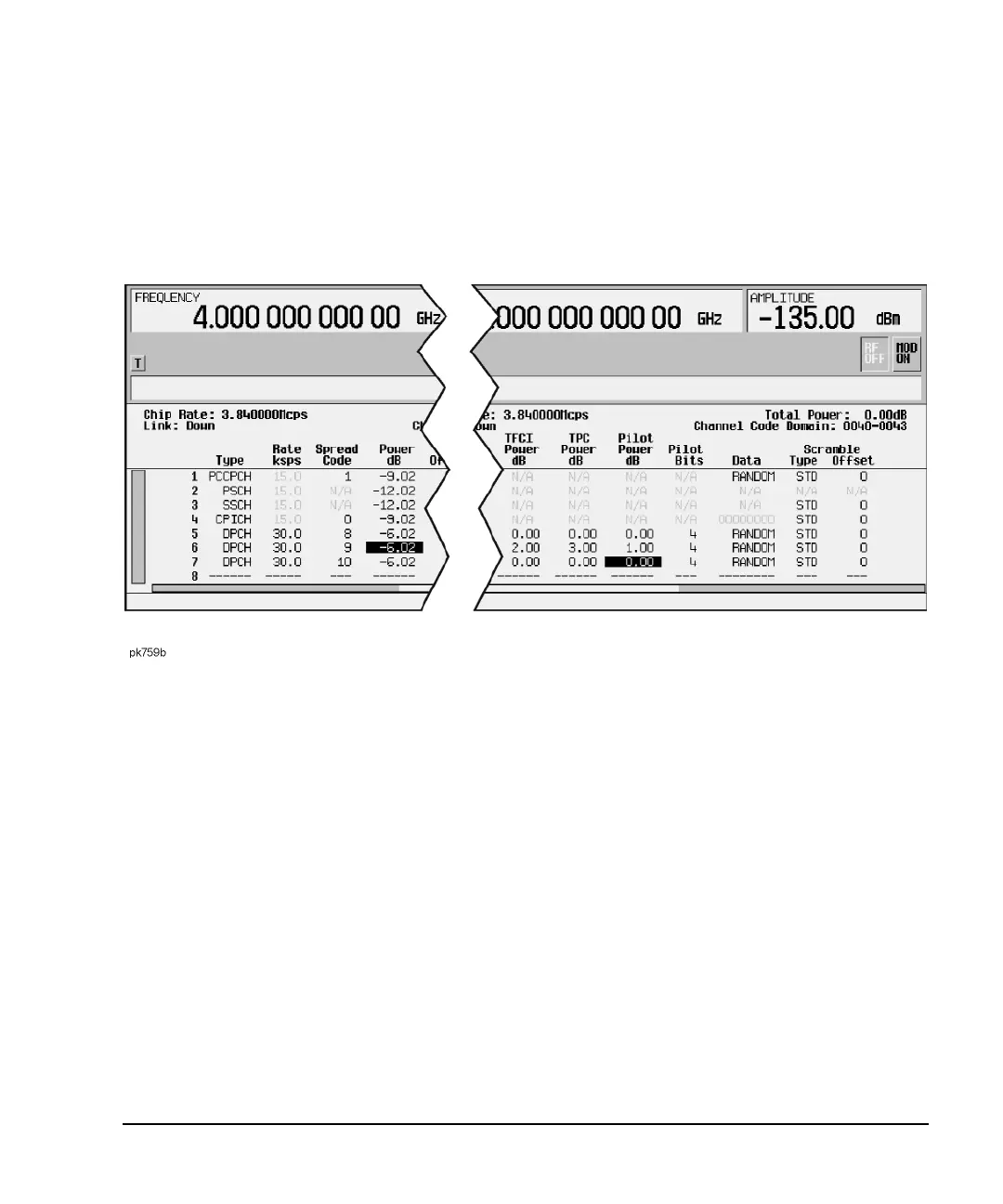

The display in Figure 15-13 shows that the channel in row 6 of the table editor has the data transmit power
(Power dB) set to −6.02 dB with the following offsets: TFCI Power set to 2.00 dB, TPC Power set to
3.00 dB, and Pilot Power set to 1.00 dB. Because of these offsets, the control symbols corresponding to
TFCI, TPC, and Pilot will transmit at −4.02 dB, −3.02 dB, and −5.02 dB respectively.
Figure 15-13 Table Editor Showing TFCI, TPC, and Pilot Power Offsets
