Chapter 16 461
W-CDMA Uplink Digital Modulation for Receiver Test
Understanding the PRACH

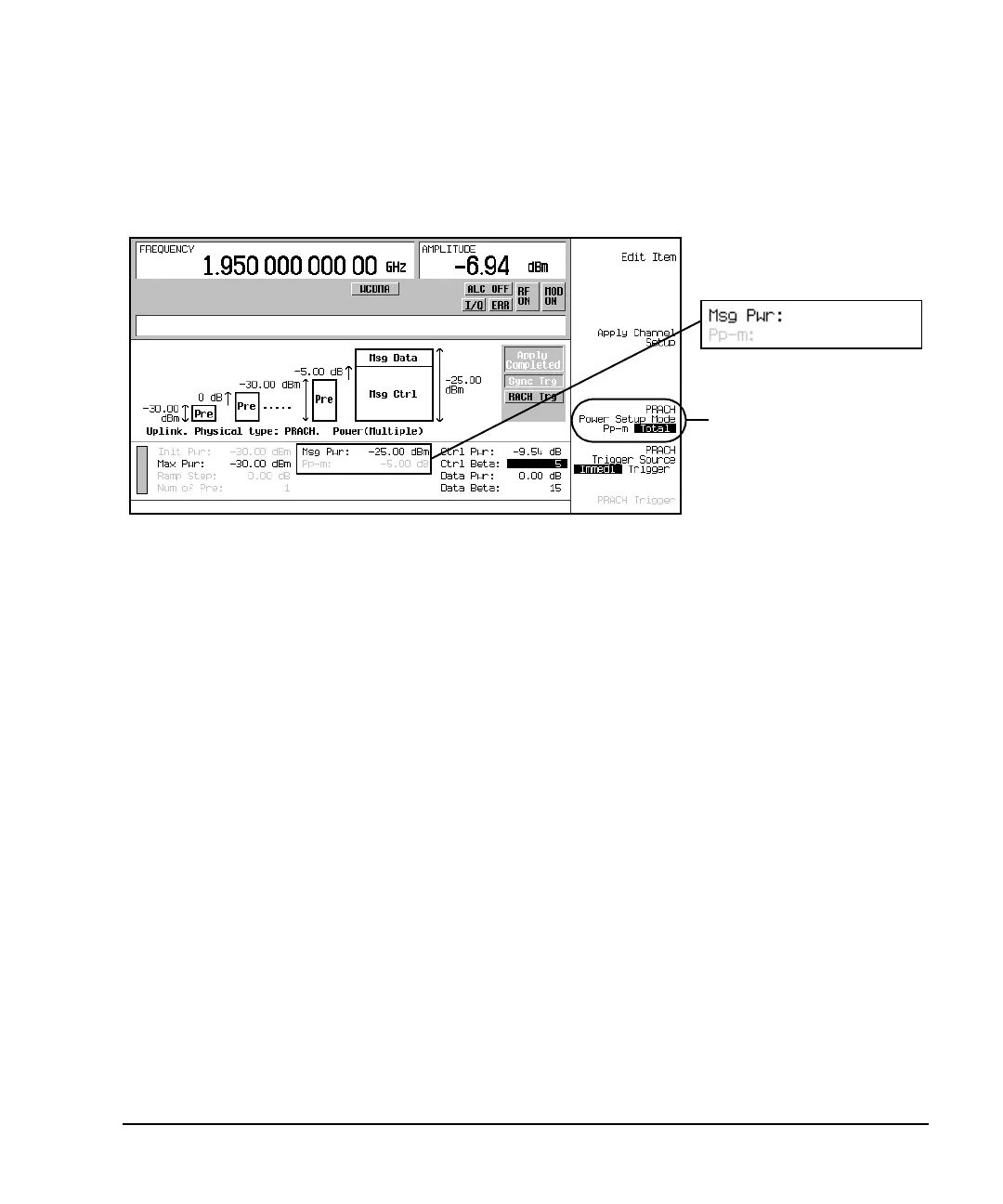

Figure 16-11 shows the selection of the total mode along with the two fields mentioned earlier.
Figure 16-11 Total Mode Selection
Total Power Mode Selected
Pp-m is Inactive
Msg Pwr is Active
