592 Chapter 17
W-CDMA Downlink Digital Modulation for Receiver Test
Configuring for Transmit Diversity and BERT

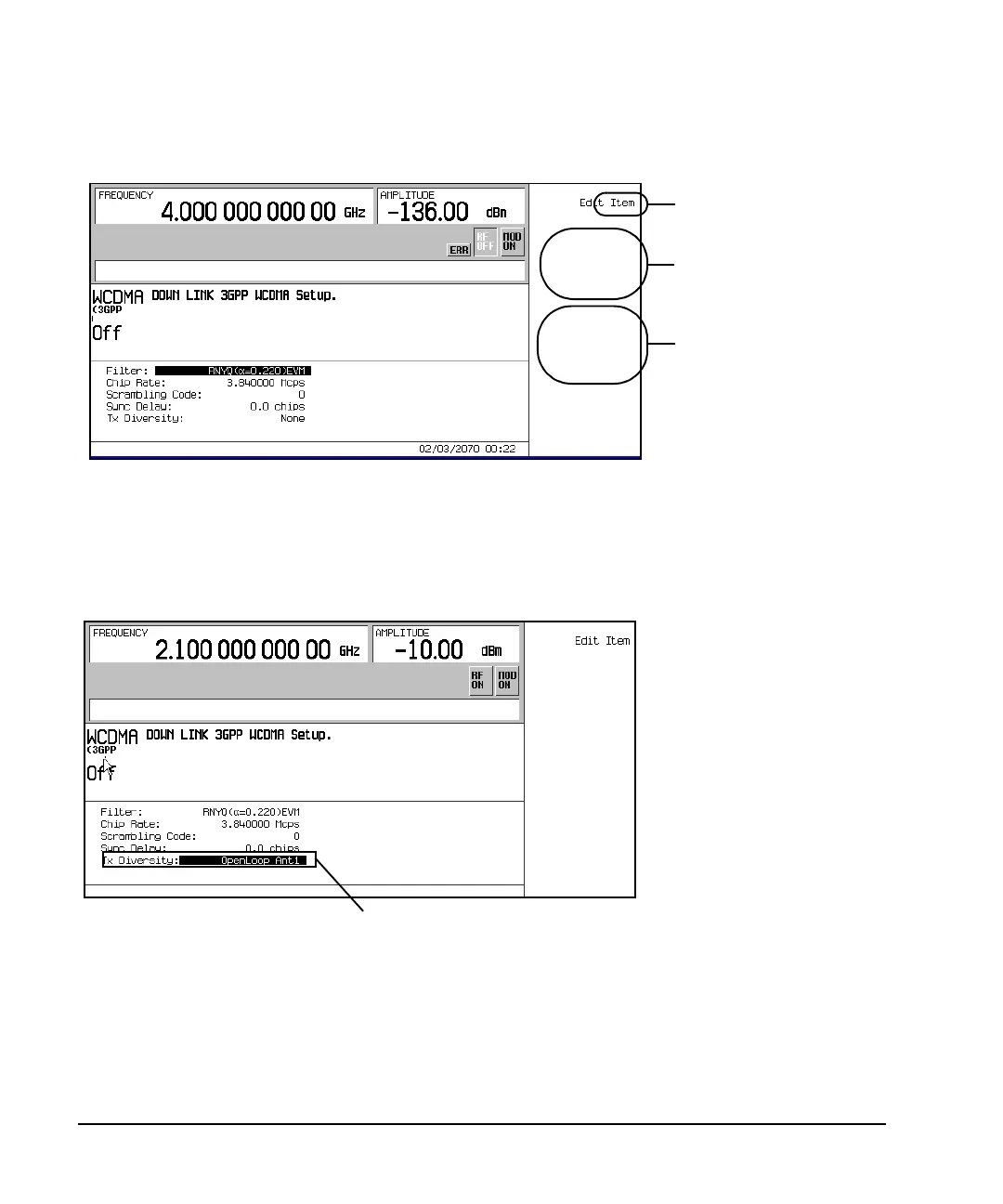

Figure 17-12 Transmit Diversity Mode Selection Display
4. Press the
OpenLoop Ant1 softkey.
ESG one is now selected as antenna one. Notice that the display summary for the
Tx Diversity field now shows OpenLoop Ant1. This is shown in Figure 17-13.
Figure 17-13 Antenna One Selection
5. Press the
Return hardkey to return to the first-level W-CDMA softkey menu.
Antenna Selection–TSTD
Antenna Selection–TSTD
is not Active for the SCH on
Selection when Tx Diversity
is not used
is Active for the SCH
the Selected Antenna
Transmit Diversity Selection Showing
To Next Page
