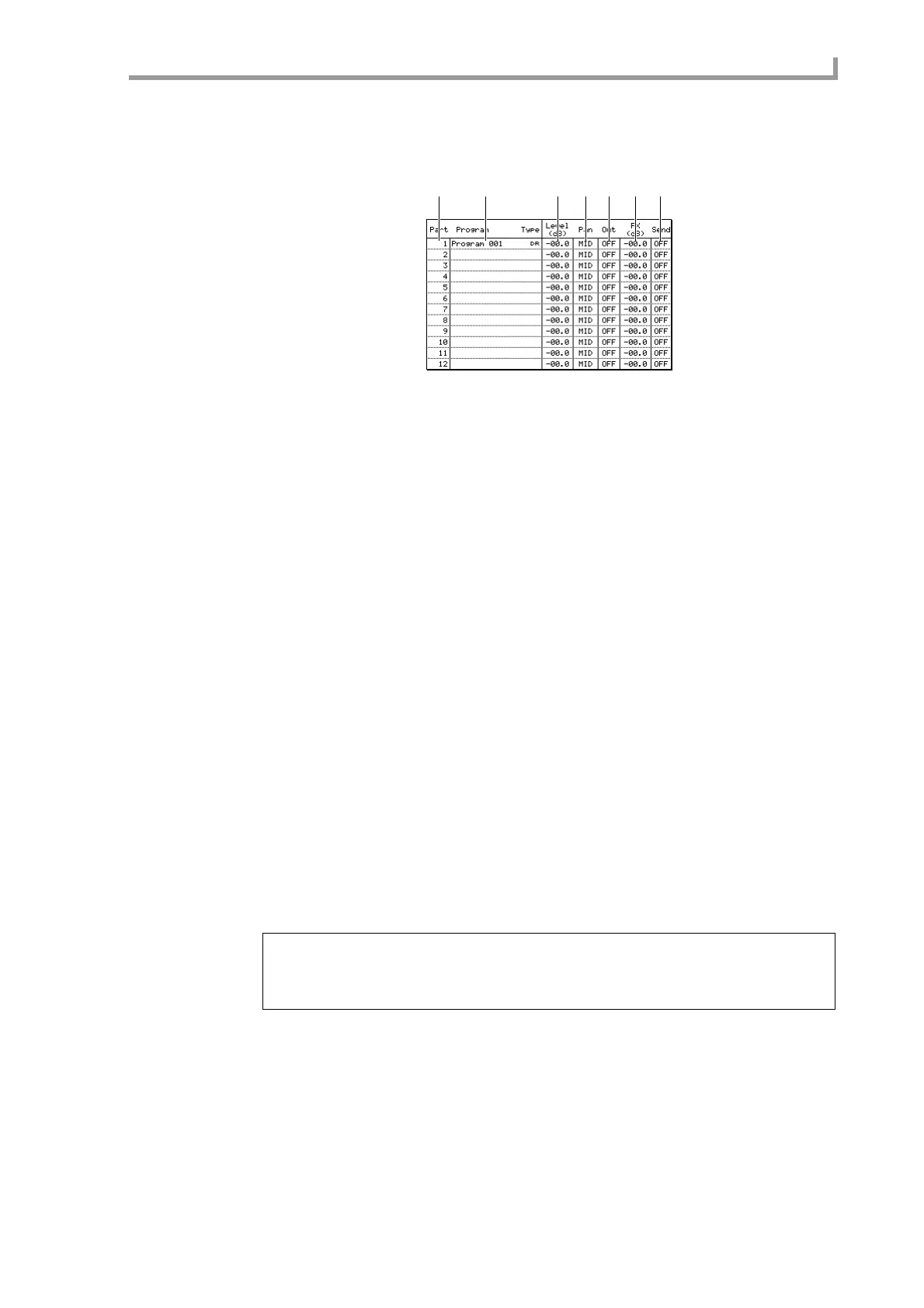

Part list block
This area lists the parts in the currently selected multi, and displays their mix parameters.
A Part field
Displays the part numbers. You can move the cursor to this field and turn the [JOG] dial
to scroll the list.
When you mute or solo a part, a symbol (M/S) indicating the mute or solo status will
appear at the left of the part number.
If you press the [WINDOW] key in this field, the Part popup window will appear.
B Program/Type field
Selects the program that is used by the part. The right side of this field indicates the type
of program (drum program = DR/key group program = KG) that is currently selected.
If you move the cursor to this field and press the [WINDOW] key, the Program List
popup window will appear. This popup window lists the programs used by the parts.
C Level (dB) field
Adjusts the volume of the part over a range of –60.0–+06.0.
D Pan field
Adjusts the pan of the part over a range of L50–MID–R50.
E Out field
Selects the jack from which the audio signal of the part will be output.
F FX field
Adjusts the send level to the effect bus.
G Send field
Selects the effect bus to which the audio signal of the part will be sent.
OFF ........................The signal will not be sent to the effect bus.
A–D........................The signal will be sent to an effect bus A–D.
AB/CD ...................The signal will be sent to effect buses A+B or C+D.
Hint: When you adjust the value of the Level field/FX field/Pan field, an offset will be applied to the
volume/send level/pan that is specified within the program.
Even if you set the Out field to an output jack, this setting will be ignored if the program itself specifies
an output destination. The output destination setting within the program will take priority.
