Key group mix page
199
D Level field
Indicates the level of the program. When the cursor is located at this field, you can turn
the [JOG] dial to adjust the setting.
E Tune field
Indicates the pitch of the program. When the cursor is located at this field, you can turn
the [JOG] dial to adjust the setting.
F Monitor field
Specifies how the program will be played from the pads or a MIDI keyboard.
MULTI ...................The program will sound according to the MIDI receive channel set-
ting of the currently selected multi.
PROGRAM ............The currently selected program will always sound when you play the
pads or a MIDI keyboard.

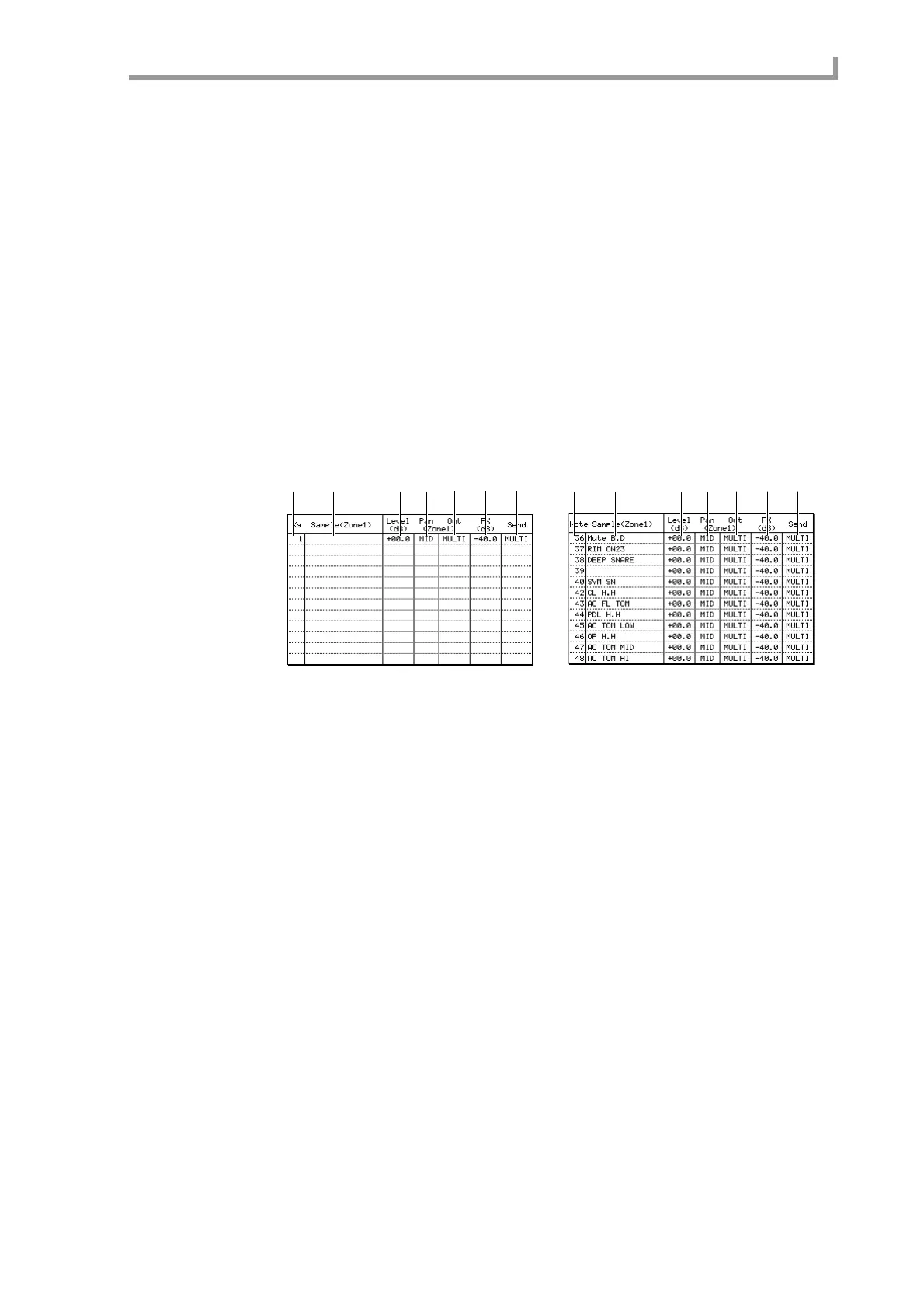

Sample list block
In this area you can adjust mix parameters such as level, pan, and effect send level for
each key group or note number.
A Kg/Note field
For a key group program this field indicates the key group, and for a drum program it indi-
cates the note number. When editing a key group program, you can move the cursor to
this field and press the [WINDOW] key to open the Create New Keygroup popup window,
where you can create a key group. When editing a drum program, you can move the cursor
to this field and press the [WINDOW] key to open the Copy Parameters popup window.
B Sample field
Indicates the sample that is assigned to each key group/note number. You can turn the
[JOG] dial in this field to change the assignment. If you press the [WINDOW] key in this
field, the Sample popup window will appear.
C Level field
Adjusts the level of each key group or note number, in a range of –60.00–+06.00 (dB).
D Pan field
Adjusts the pan of each key group or note number, in a range of L50–MID–R50.
E Out field
Selects one of the following as the output destination for the sample assigned to each key
group or note number.
MULTI ...................Output from the jack selected by the multi.
L/R .........................Output from the [MAIN OUT] jacks.
1–8..........................Output from an individual output 1–8.
1/2–7/8 ...................Output in stereo from a pair of individual outputs.
If you select a destination other than MULTI, the sample will be output from the jack you
specify here, regardless of the multi settings.
1 2 3 4
5 6 7
1 2 3 4
5 6 7
