MIDI mode
78
MIDI mode
Routing page
Changing the routing of MIDI events
Here you can changing the routing of the MIDI events that are input from the [MIDI IN
I] and [MIDI IN II] connectors or generated by the pads.
To access this page........[MIDI] key
A Routing block
Functions
• [F2] key (FILTER)
Displays the Filter page.
• [F3] key (EVENT)
Displays the Event page.
• [F6] key (PANIC)
Sends All Note Off, Reset All Controllers, Damper Off, and Bend 0 messages from the
MIDI connectors.
Routing block
Here you can change the destination of the MIDI events that are input from the [MIDI IN
I]/[MIDI IN II] connectors or generated by the pads.

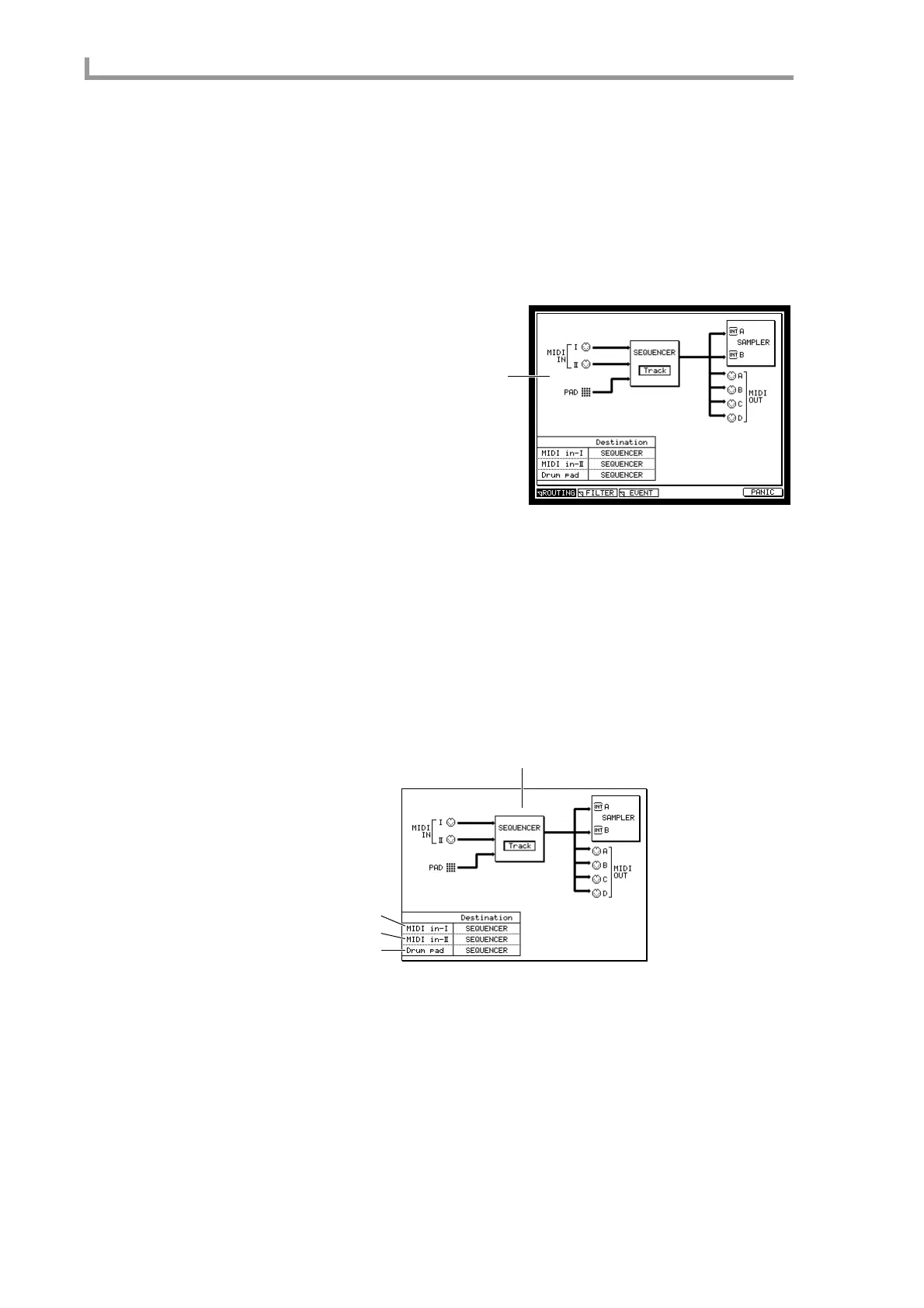

A Block diagram
Displays the current routing of MIDI messages.
B MIDI in-I field
Selects one of the following as the destination of the MIDI events received at the [MIDI
IN I] connector.
INT-A.....................Virtual MIDI port A of the sampler section
SEQUENCER........The sequencer section
C MIDI in-II field
Selects one of the following as the destination of the MIDI events received at the [MIDI
IN II] connector.
1
2
1
4
3
