Select page
137
Effect mode
Select page

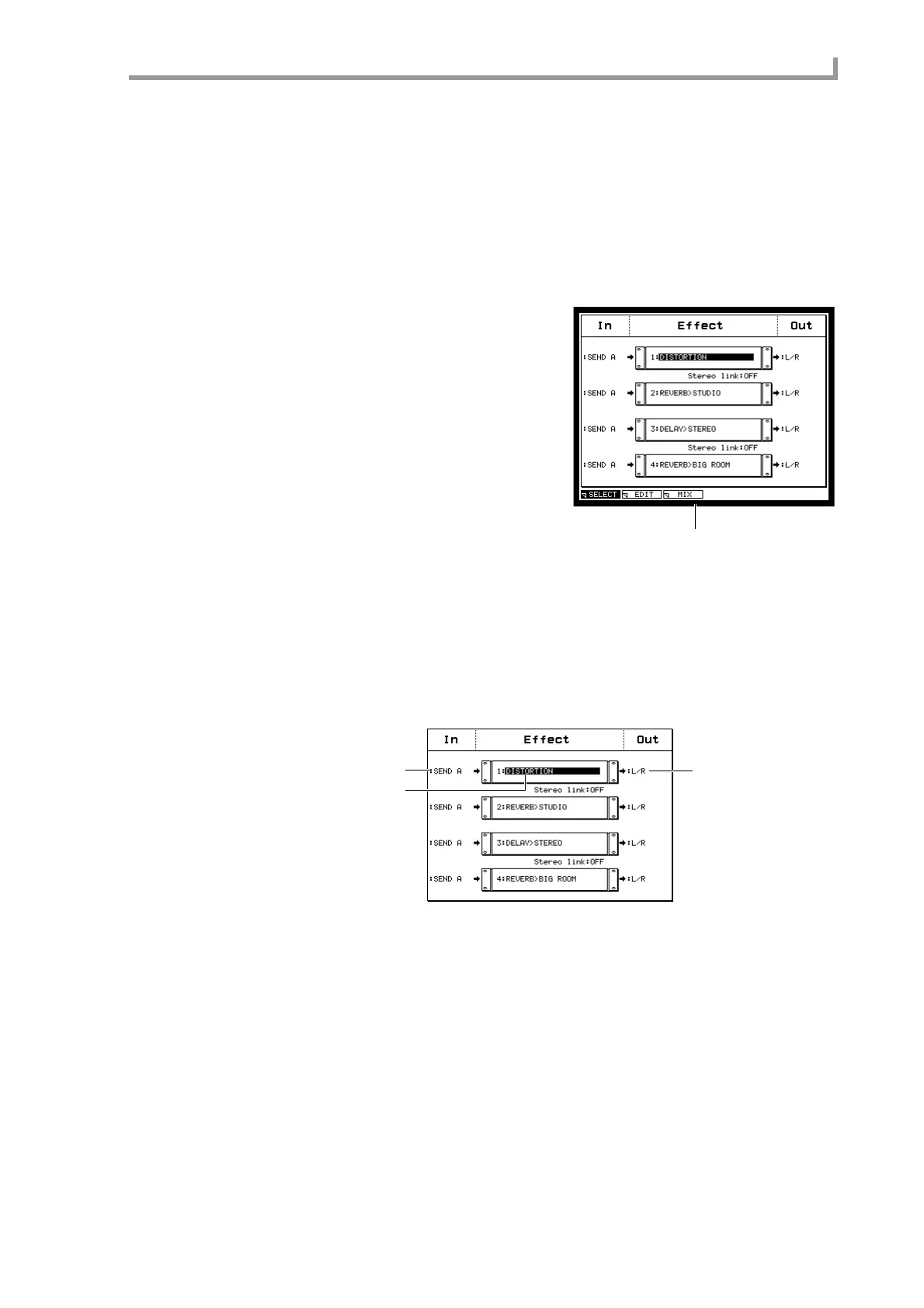

Specifying the effect type and routing
Here you can select the effect type used for effects 1–4, and change the input/output sig-
nal routing.
To access this page ....... [EFFECT] key
A Effect block
Functions
• [F2] key (EDIT)
Displays the Edit page.
• [F3] key (MIX)
Displays the Mix page
Effect block
Here you can select the effect type used for effects 1–4, and select the input signal and
output destination for each effect.
A In field
Selects the signal that will be input to each effect 1–4. You can select the following signals.
SEND A–SEND D ......The signal of effect bus A–D
FX 1–FX 4 ..................The output signal of effect 1–4
B Effect field
Selects the effect type that will be used by each effect 1–4. The Select Effect Type popup
window will appear when you turn the [JOG] dial.
C Output field
Selects one of the following output destinations for effects 1–4.
OFF ........................No signal will be output from that effect.
L/R.......................... The signal will be output immediately before the [MAIN OUT] jacks.
1/2–7/8................... The signal will be output in stereo to individual outputs 1/2–7/8.
(This can be selected only if the individual output option is installed.)
1
1
3
2
To Next Page
