Chapter 1 - Introduction
The Switch can be managed through the Switch’s serial port,Telnet, or the Web-based management agent.The Command Line Interface (CLI) can be used to
configure and manage the Switch via the serial port or Telnet interfaces.
This manual provides a reference for all of the commands contained in the CLI. Configuration and management of the Switch via the Web-based management
agent is discussed in the User’s Guide.
1-1 Accessing the Switch via the Serial Port
The Switch’s serial port’s default settings are as follows:
• 115200 baud
• no parity
• 8 data bits
• 1 stop bit
A computer running a terminal emulation program capable of emulating a VT-100 terminal and a serial port configured as above is then connected to the Switch’s
serial port via an RS-232 DB-9 cable.
With the serial port properly connected to a management computer, the following screen should be visible. If this screen does not appear, try pressing Ctrl+r to
refresh the console screen.

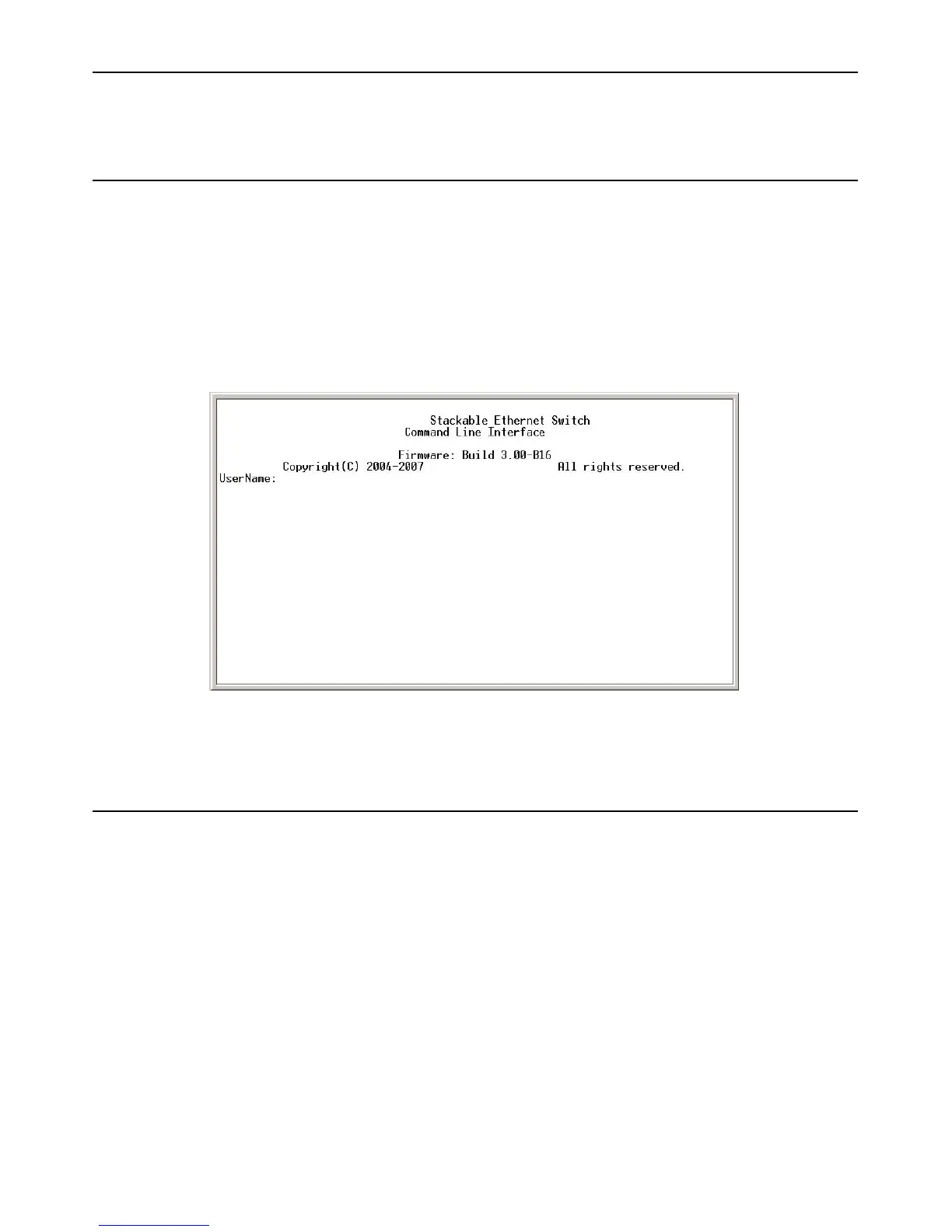

Figure 1- 1. Initial CLI screen
The default username and password is Username: manager Password: friend
1-2 Setting the Switch’s IP Address
Each switch must be assigned its own IP Address, which is used for communication with an SNMP network manager or other TCP/IP application (for example
BOOTP,TFTP).The switch’s default IP address is 10.0.0.1 You can change the default switch IP address to meet the specification of your networking address
scheme.
The Switch is also assigned a unique MAC address by the factory.This MAC address cannot be changed, and can be found on the initial boot console screen –
shown below.
8
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch • Command Line Interface Reference Manual
