• IP Range – 'From IP Address' and 'To IP Address' fields appear. Specify the IP
range.
7. In the 'Shared Secret' field, enter the IPSec shared secret, which is the encryption key
jointly decided upon with the network you are trying to access.
8. Click Next; the following is displayed if successfully configured:

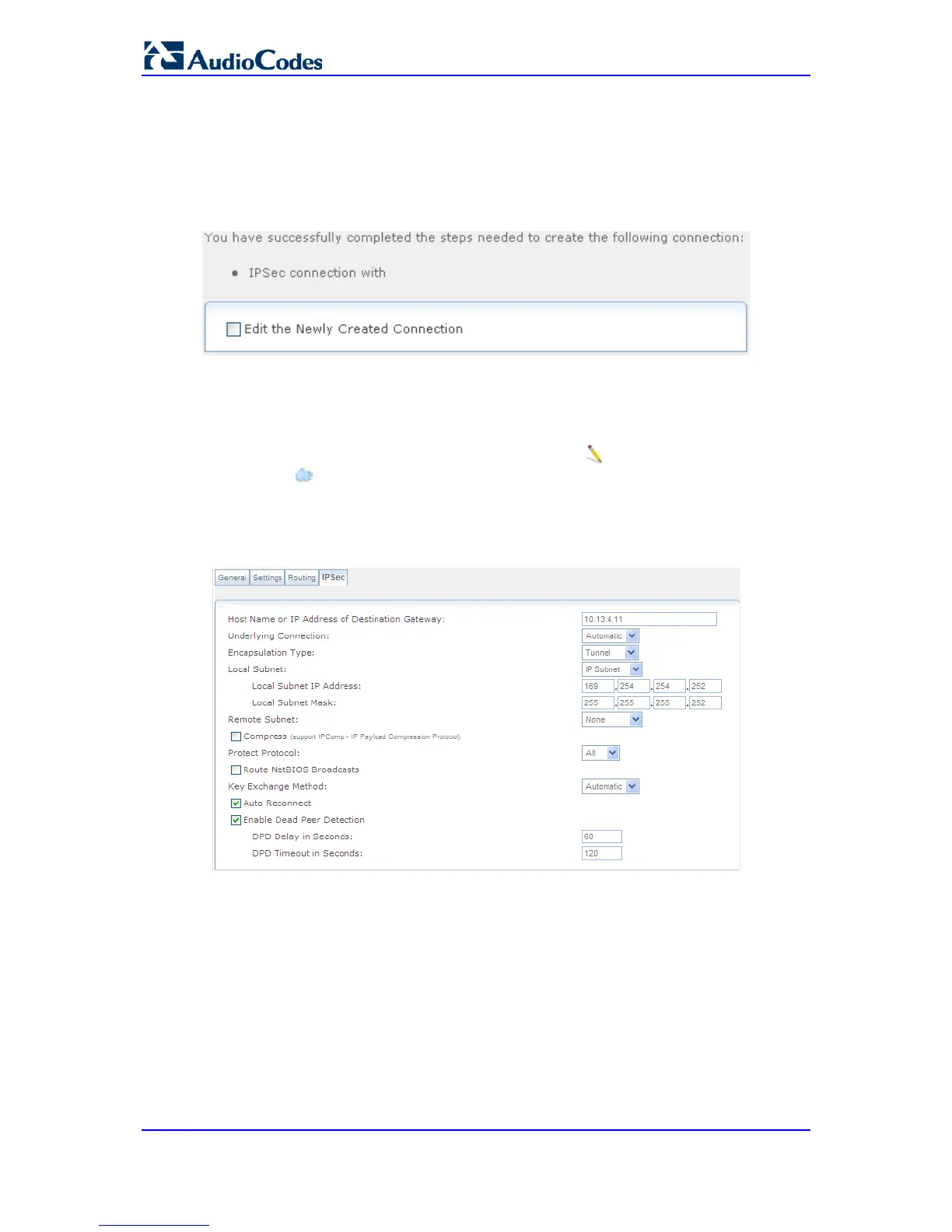

Figure 47-45: IPSec Added Successfully
9. Select the 'Edit the Newly Created Connection' check box if you want to edit the new
connection after clicking Finish.
10. Click Finish to save the settings; the new IPSec connection is added to the network
connections list.
11. To define (edit) additional properties, click the Edit icon corresponding to the VPN
IPSec connection in the connection list; the General, Settings, Routing, and
IPSec tabs appear. For descriptions of the parameters in the General, Settings, and
Routing tabs, see 'Editing Existing Connections' on page 614. Click the IPSec tab;
the following apears (only the first part of the page is displayed due to page size):
Figure 47-46: IPSec Tab
• Host Name or IP Address of Destination Gateway: The IP address of your
IPSec peer. If your connection is an IPSec Server, this field displays "Any
Remote Gateway".
• Underlying Connection: In a single WAN scenario, the underlying connection
parameter is set to "Automatic" (non-configurable). However, if you have multiple
WAN devices, a drop-down list appears, enabling you to choose the underlying
WAN device. The IPSec connection only uses your chosen device, unless
failover is enabled. In this case, the failed-to device is used instead (assuming its
route rules consent), until the chosen device is up again. Note that if you select
"Automatic", no attempt is made to return to the original device from the failed-to-
device.
