Brother LX27NT - Disassembly of Feed Bracket Sub Assy

3 - 28
Feed control mechanism Application of Disassembly
Application Application

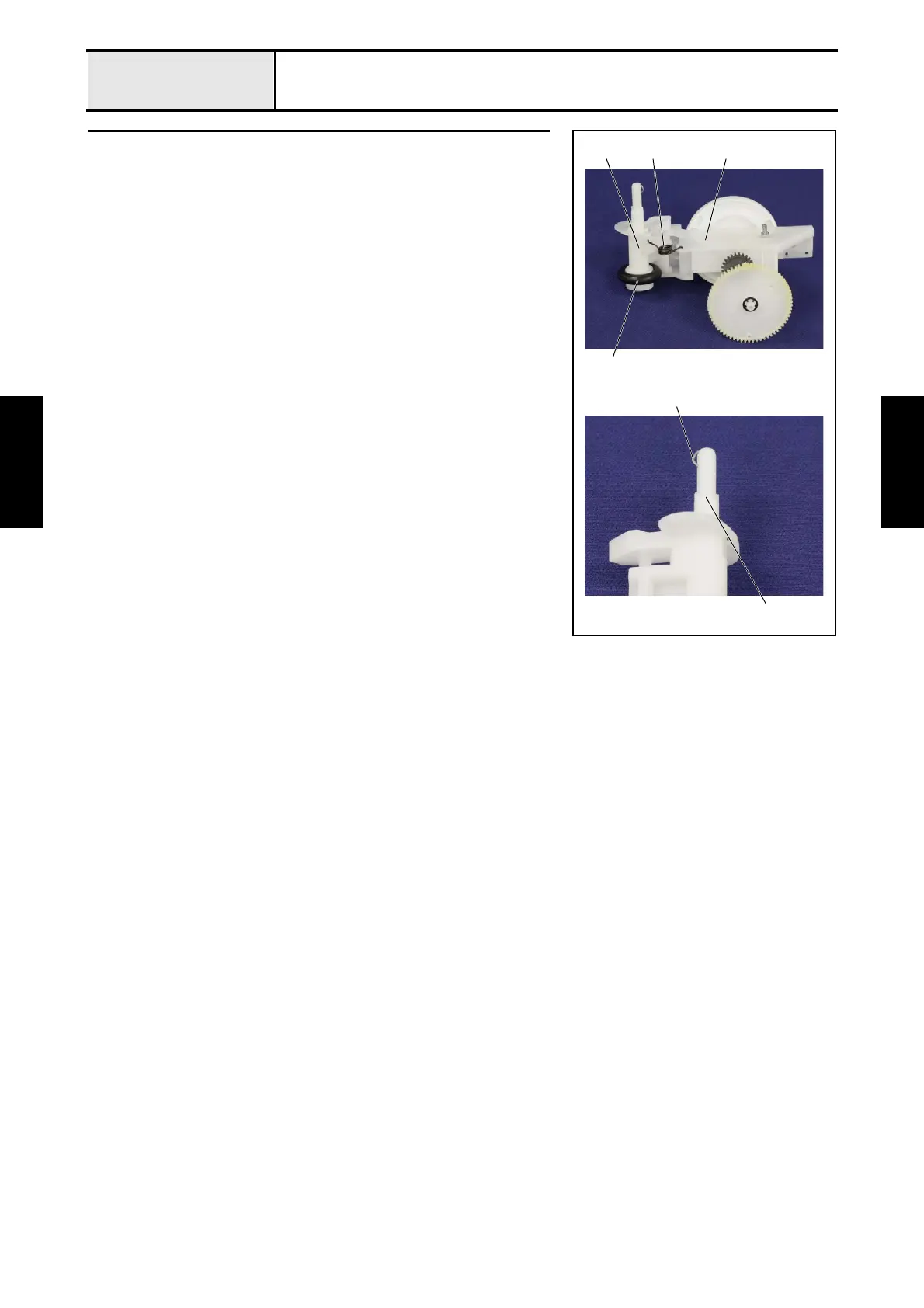

2 Disassembly of Feed bracket sub assy
1. Open the bobbin winder assy 1, and then remove the bobbin winder
spring 2 from the bobbin winder assy 1 and the feed bracket sub assy 3.
2. Remove the bobbin winder assy 1 from the feed bracket sub assy 3.
3. Remove the bobbin winder rubber band 4 from the bobbin winder assy
1.
4. Remove the bobbin winder shaft spring 5 from the bobbin winder assy 1.
