Brother LX27NT - Assembly of BH Stopper Assy; Attachment of Hexagon M4 X40.5

3 - 52
Buttonhole and Pattern selecting mechanism Application of Assembly
Application Application

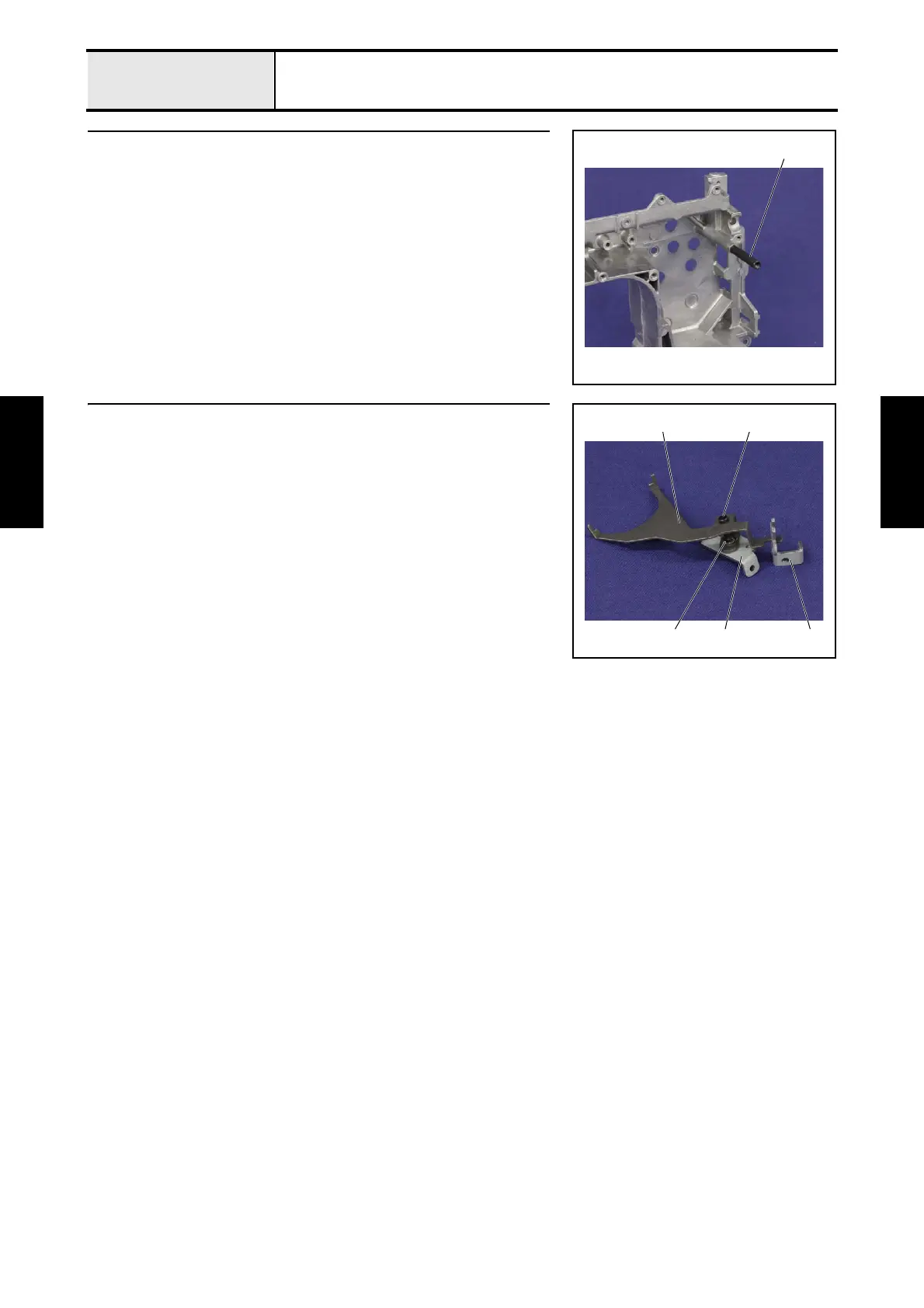

1 Attachment of Hexagon M4x40.5
1. Attach the hexagon M4x40.5 1 to the arm bed.
1
2 Assembly of BH stopper assy
1. Insert the shaft 1 of the BH stopper holder assy 2 to the BH stopper 3,
and then attach the retaining ring E4 4.
2. Set the BH change arm 5 to the BH stopper 3.
3
4
1
2 5
