Brother LX27NT - Removal of Feed Arm Assy; Removal of Feed Stand Sub Assy; Removal of Horizontal Feed Shaft

3 - 14
Feed unit Application of Disassembly
Application Application

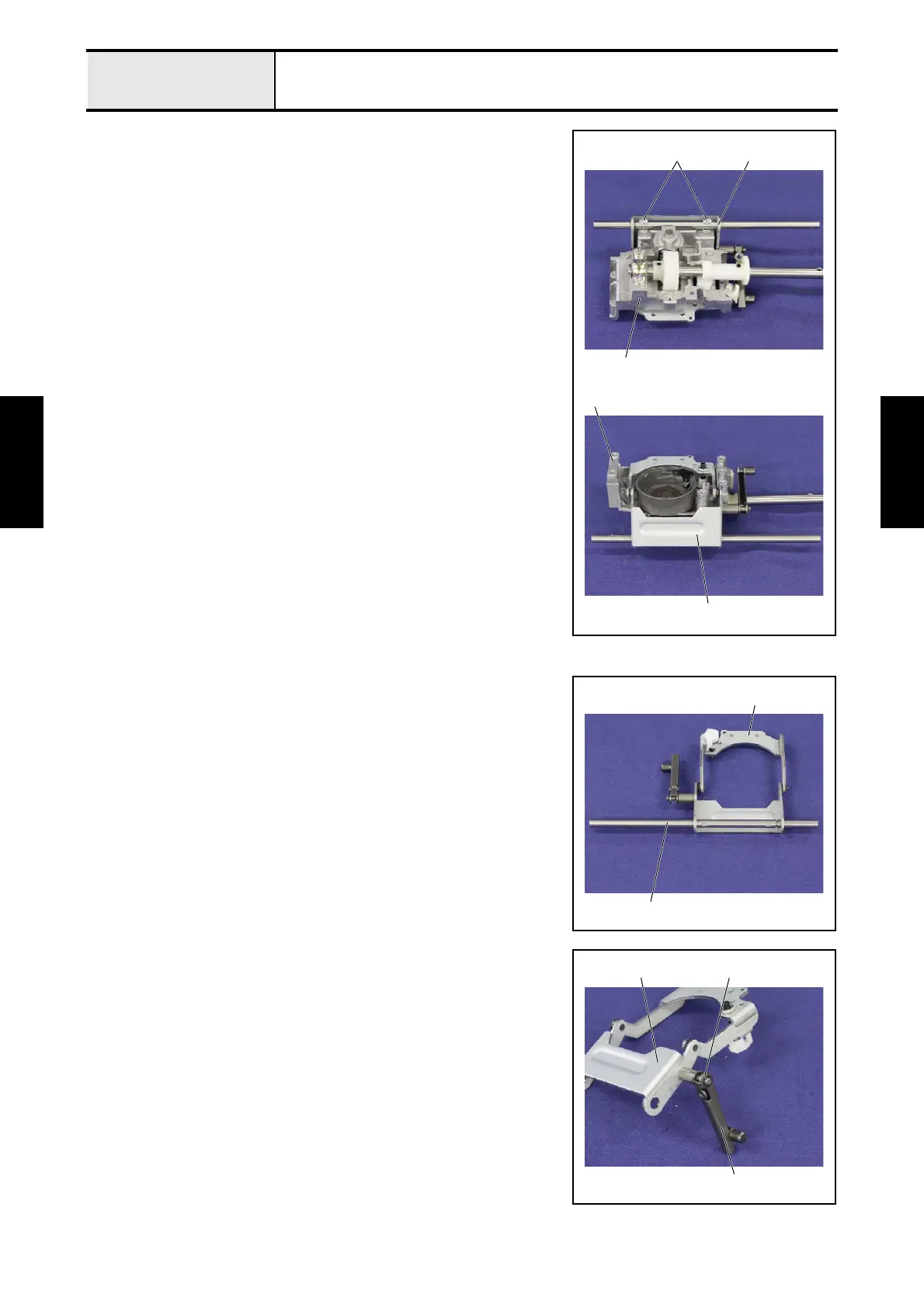

2-9 Removal of Feed stand sub assy
1. Remove the 2 screws 1, and then remove the feed stand sub assy 1 from
the feed holder 2.
1
2
1
2
1
2-10 Removal of Horizontal feed shaft
1. Remove the horizontal feed shaft 1 from the feed stand sub assy 2.
2
1
2-11 Removal of Feed arm assy
1. Remove the retaining ring CS4 1, and then remove the feed arm assy 2
and the polyester slider from the shaft of the feed stand sub assy 3.
2
3 1
