3 - 70

Feed unit

Application of Assembly

Application

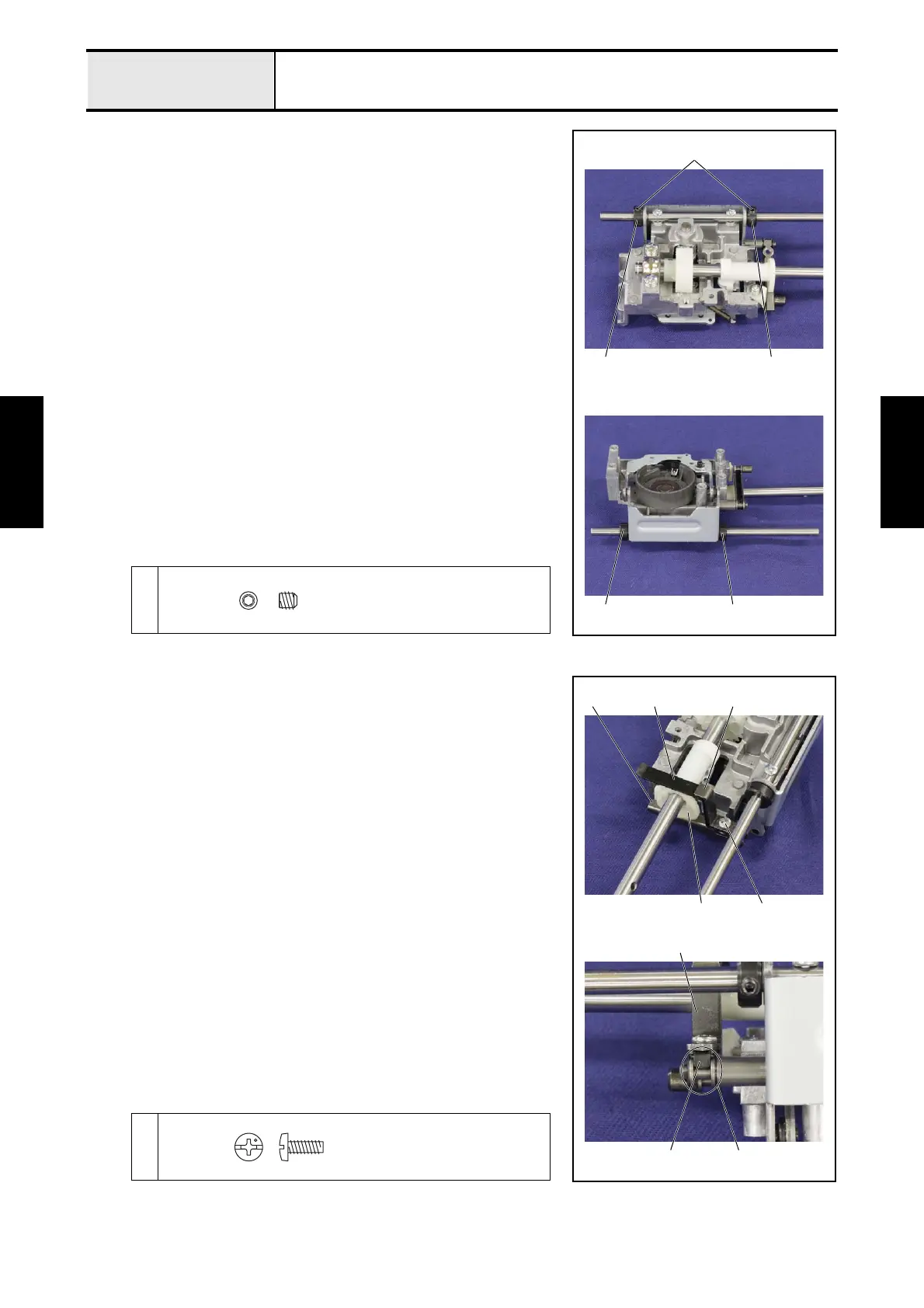

1-8 Attachment of Set screw collar

1. Set the washer thrust and the set screw collar 1 to the horizontal feed

shaft, and then tighten the screw 1 temporarily (2 locations).

*Key point

• Fully tighten the screw after performing "2-47 Attachment of

Feed module".

1 1

Set Screw, Socket (CP)

M4X4

1-9 Attachment of Feed supporting plate

1. Set the feed supporting plate 1 to the feed arm assy 2.

*Key point

• Check that engage the protrusion 3 of the feed supporting

plate 1 with the groove 4 of the feed arm assy 2.

2. Set the feed supporting plate B 5 to the feed supporting plate 1, and

attach the feed arm assy 2 with the screw 1.

*Key point

• Check that engage the boss of the feed supporting plate B 5

with the positioning hole of the feed supporting plate 1.

• Check that sandwich the feed cam 6 with the feed supporting

plate 1 and the feed arm assy 2.

Screw, Bind

M3X8
