Brother LX27NT - Removal of Inner Rotary Hook Assy; Removal of Needle Plate a; Removal of Stopper Plate R;M

3 - 11
Feed unit Application of Disassembly
Application Application

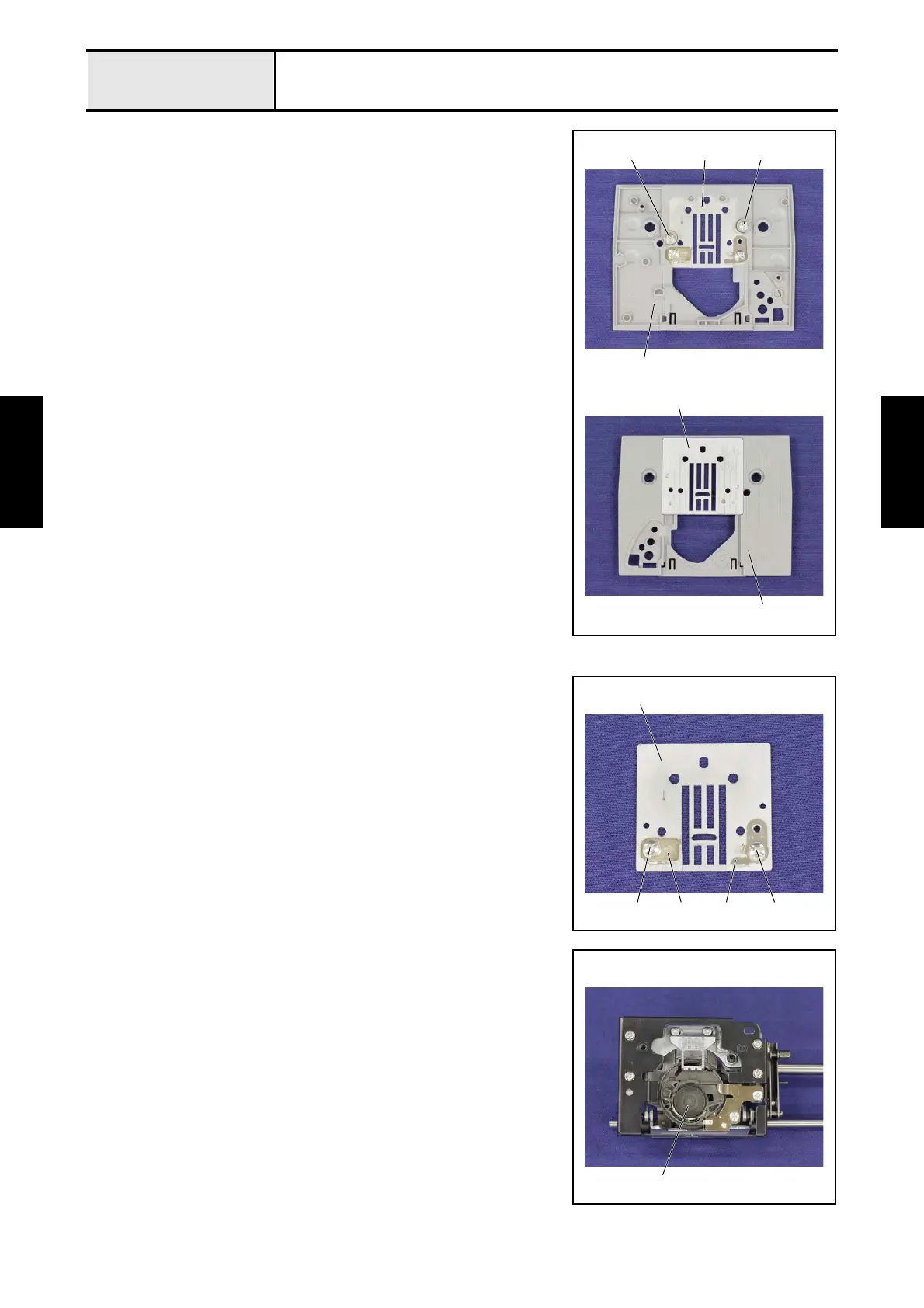

2-1-3 Removal of Needle plate A
1. Remove the 2 screws 1, and then remove the needle plate A 1 from the
needle plate B 2.
1
2
1 1
2
1
2-1-4 Removal of Stopper plate R/M
1. Remove the screw 1, and then remove the stopper plate R 1 from the
needle plate A 2.
2. Remove the screw 2, and then remove the stopper plate M 3 from the
needle plate A 2.
2
2311
2-2 Removal of Inner rotary hook assy
1. Remove the inner rotary hook assy 1.
1
