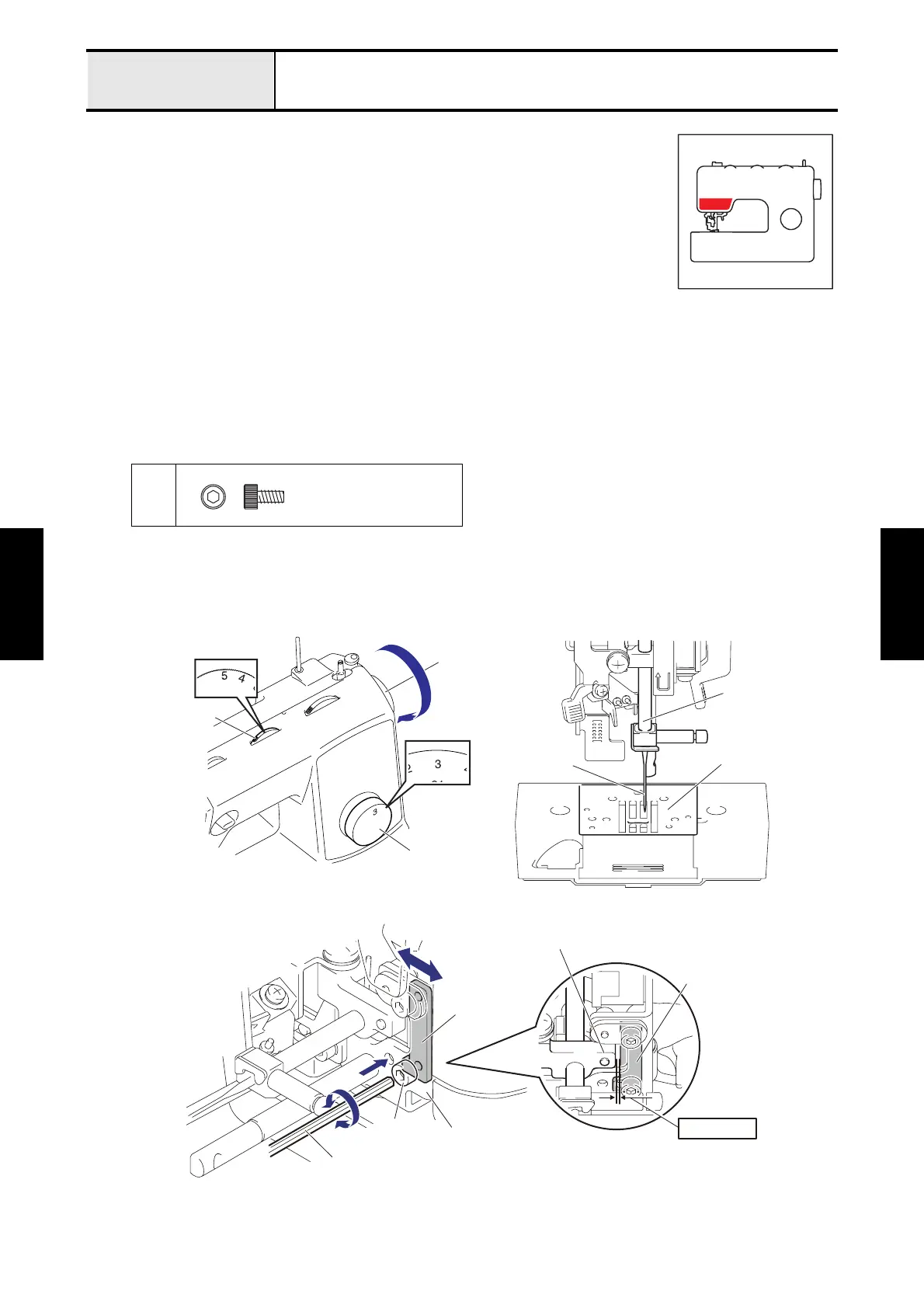

Adjustment Needle bar supporter stopper R position
[Standard]
At pattern selection dial [3] (zigzag stitch) and stitch width dial [5] (maximum), when the
needle is dropped to the right side and the pattern selection dial is turned, the minimum
clearance between the needle bar supporter and the stopper R should be 0 to 0.2 mm.
[Adjustment]
1. Remove the face plate and the accessory table.
2. Remove the presser foot.
3. Attach the size 90/14 needle.
4. Turn the pattern selection dial until the [3] is the topmost position.
5. Turn the stitch width dial until the [5] is the topmost position.
6. Turn the pulley by hand until the needle top comes to the needle plate surface. (Needle bar is right side.)
7. Loosen the screw 1 of the stopper R.
8. Move the position of the stopper R (screw 1) left and right, and adjust the minimum clearance between the
needle bar supporter and the stopper R when the pattern selection dial is turned.
9. Tighten the screw 1 of the stopper R to secure the stopper R to the base holder.
[Confirmation]
Turn the pulley by hand until the needle top comes into the needle hole of the needle plate. (Needle bar is right side.)
And then check that the needle top does not contact the needle plate when the needle bar supporter contacts the
stopper R by pushing the needle bar to the right side.
1
Bolt, Socket
M3X6
Needle
Needle plate
Needle bar
Pulley
Pattern
selection dial
Stitch width dial
Stopper R
Base holder
1
Hex wrench
2.5 mm
0 - 0.2 mm
Needle bar supporter
Stopper R
