Brother LX27NT - Removal of BH Stopper Assy; Removal of Pattern Selecting Unit Assy

2 - 24
Buttonhole and Pattern selecting mechanism Basic of Disassembly
Basic Basic

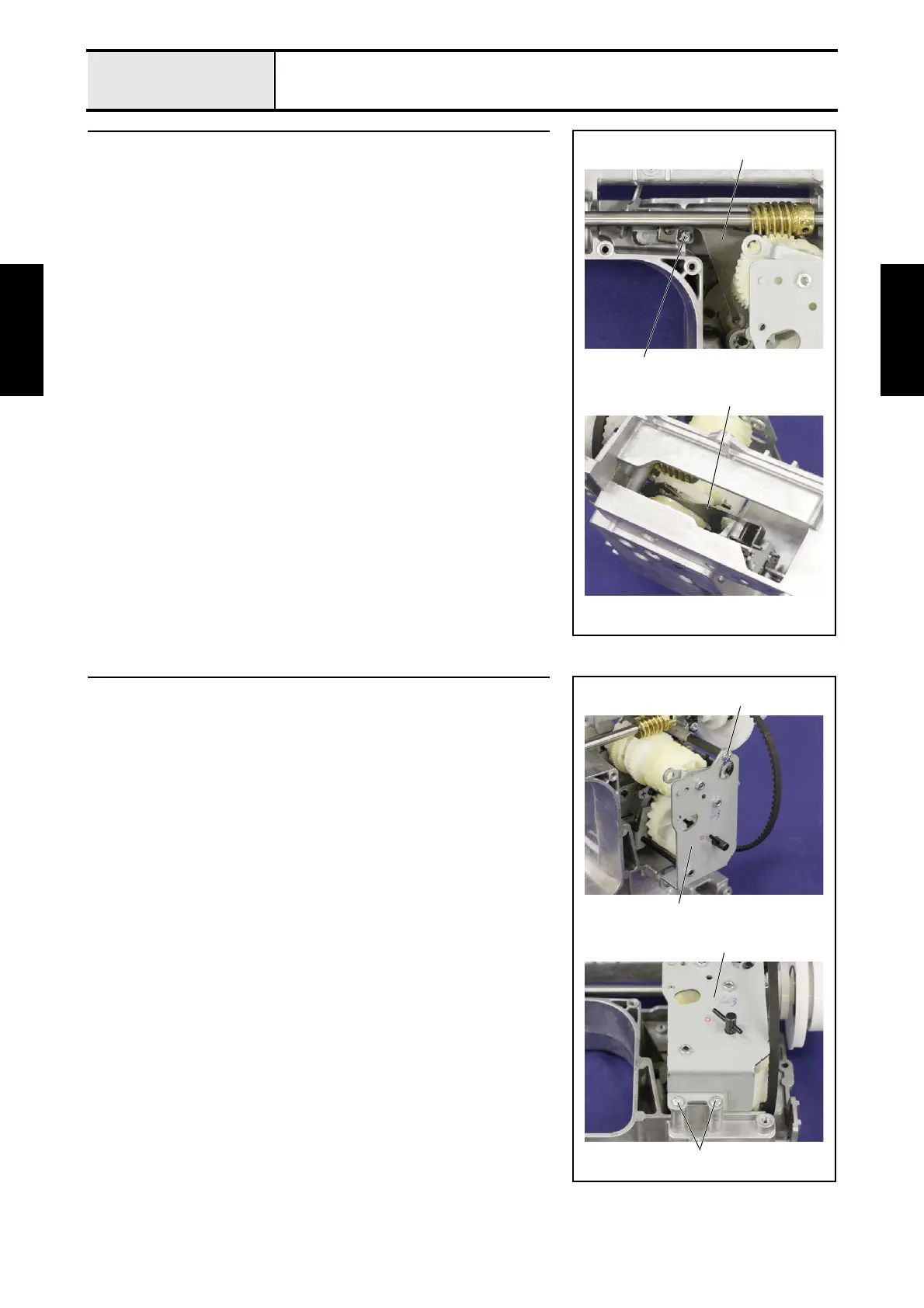

3 Removal of BH stopper assy
1. Remove the screw 1, and then remove the BH stopper assy 1.
→Refer to 3 - 30 of the Disassembly.
1
1
1
4 Removal of Pattern selecting unit assy
1. Remove the screw 1 and the 2 screws 2, and then remove the pattern
selecting unit assy 1.
1
1
2
1
