Feed unit Application of Assembly
Application Application
 Metal model

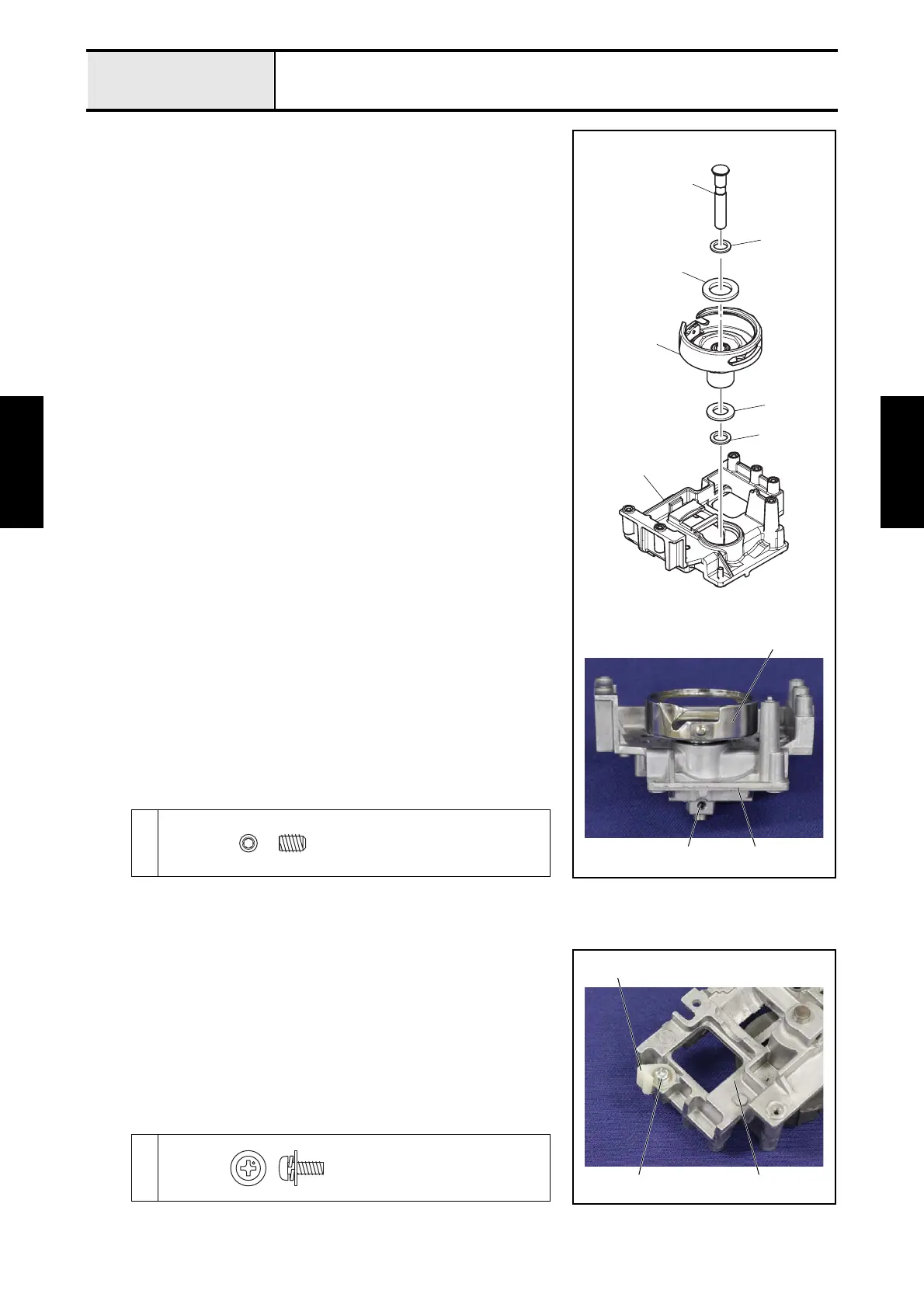

1. Set the spacer 1, the washer 6 2, the outer rotary hook assy 3, the
magnet 4 and the spacer 5 in this order to the feed holder 6, and then
insert the outer rotary hook shaft 7 to them.
2. Tighten the screw 1 to the feed holder 6.
<In case of plastic model, refer to previous page.>
1
7
5
4
3
6
2
1
61
3
Set Screw, Socket (CP)
M4X6
1-2 Attachment of Feed arm supporter
1. Set the feed arm supporter 1 to the back side of the feed holder 2 with
the screw 1.
1
1
1
2
Screw, Pan (S/P washer)
M3X8DB
