2 - 15

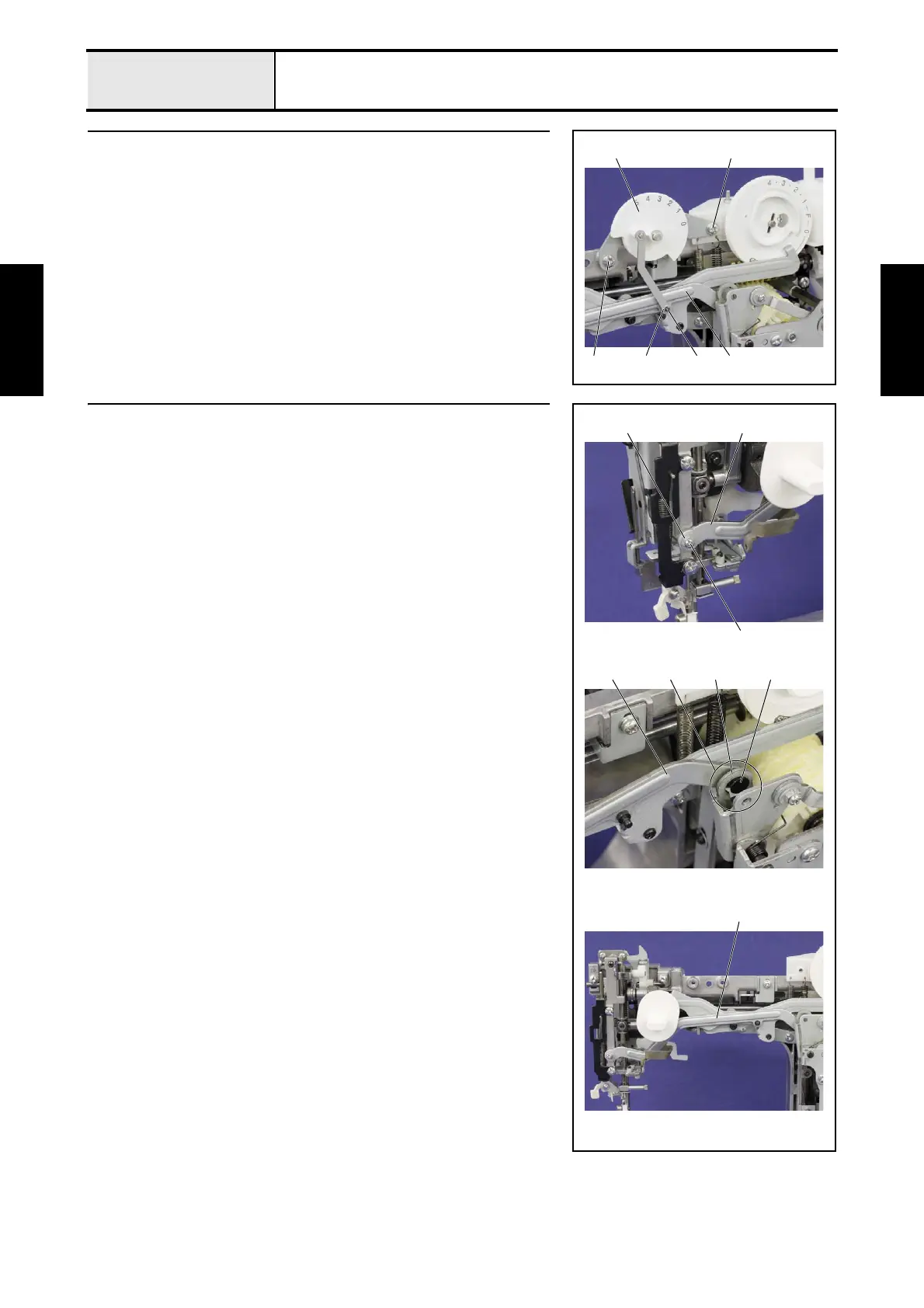

Zigzag mechanism
Basic of Disassembly
Basic
Basic
1 Removal of Z dial assy
1. Remove the retaining ring E2 1 from the shaft 2 of the zigzag connecting
rod assy 3.
2. Remove the screw 1 and the screw 2, and then remove the Z dial assy
4.
→Refer to 3 - 25 of the Disassembly.
2
2
4
1 1 3
2 Removal of Zigzag connecting rod assy
1. Remove the screw 1, and then remove the zigzag adjusting nut 1.
2. Remove the shaft 2 of the zigzag connecting rod assy 3 from the
positioning hole 4 of the zigzag link holder assy 5, and then remove it.
31
1
2543
3
