3 - 42

Upper shaft, Needle bar and Presser foot unit

Application of Assembly

Application

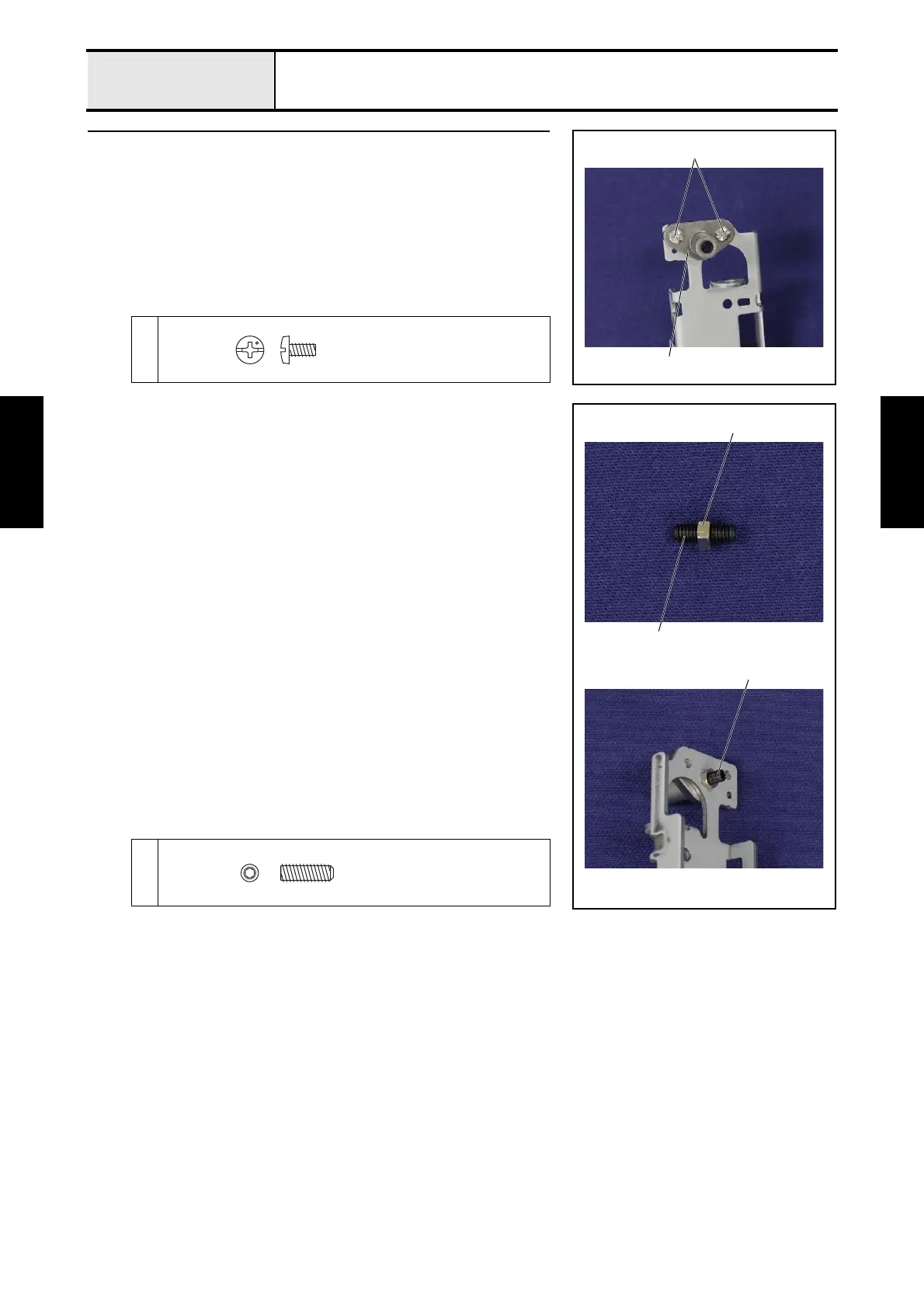

1 Assembly of Needle-presser module

1-1 Attachment of Shaft bushing

1. Set the shaft bushing 1 to the base holder assy, and then secure it with the

2 screws 1.

Screw, Bind

M3X6

1-2 Attachment of Lock nut

1. Attach the lock nut 1 to the screw 1.

*Key point

• Tighten the lock nut 1 to about half of the screw 1.

2. Attach the screw 1 to the base holder assy.

*Key point

• Tighten it until the lock nut 1 hit the base holder assy.

• Refer to "4-17 Adjustment: Needle drop position to presser

foot hole (front/back)".

Set Screw, Socket (CP)

M4X12
