3 - 57

Zigzag mechanism

Application of Assembly

Application

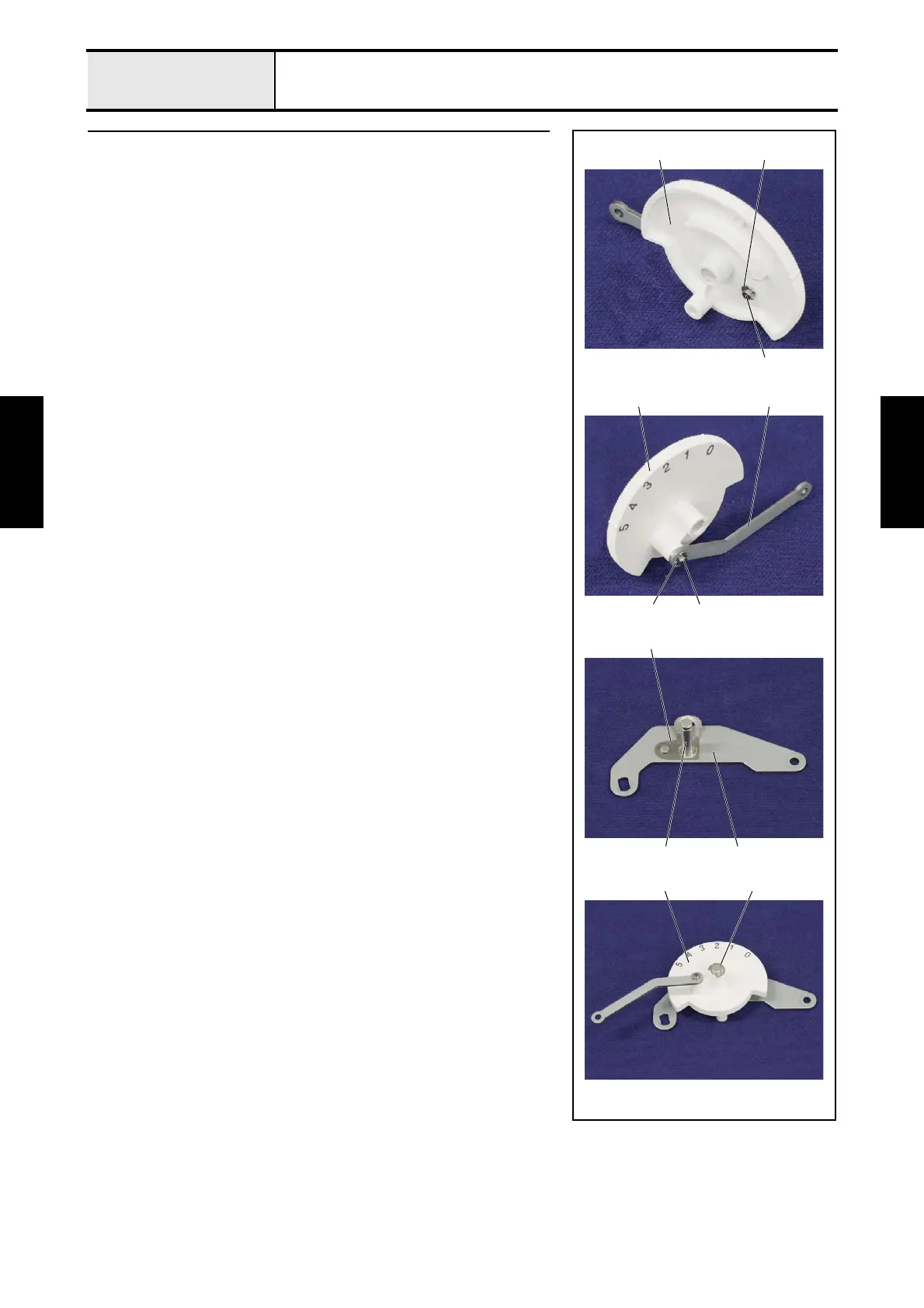

1 Assembly of Z dial assy

1. Attach the retaining ring E2 1 to the ES pin F-B 2.

2. Insert the ES pin F-B 2 into the back side of the Z dial 3 and the Z dial

connecting rod 4, and then attach the retaining ring E2 5.

3. Set the notched spring 6 and the Z dial 3 to the shaft 7 of the Z dial

holder assy 8, and then attach the retaining ring E4 9.

*Key point

• Check that align the boss of the Z dial holder assy 8 with the

positioning hole of the notched spring 6.

3 1

3 4

3 9
