Adjustment Motor belt tension

 220 to 240V specification

[Standard]

The belt slack should be 4.6 to 6 mm when pushing the center of the motor belt between

the T pulley of the upper shaft and the T pulley of the motor with a force of 0.98 N (100g).

[Adjustment]

1. Turn off the power, and then remove the foot controller.

2. Remove the face plate and the pattern selection dial, and remove the front cover and

the rear cover.

3. Loosen the 2 screws 1 of the motor holder.

4. Move the motor holder up and down to adjust the tension of the motor belt.

5. Tighten the 2 screws 1 of the motor holder to secure the motor holder to the arm bed.

XC2277001 Push-pull gauge (5N)

BOLT.

(S/P WASHER)

M5X12

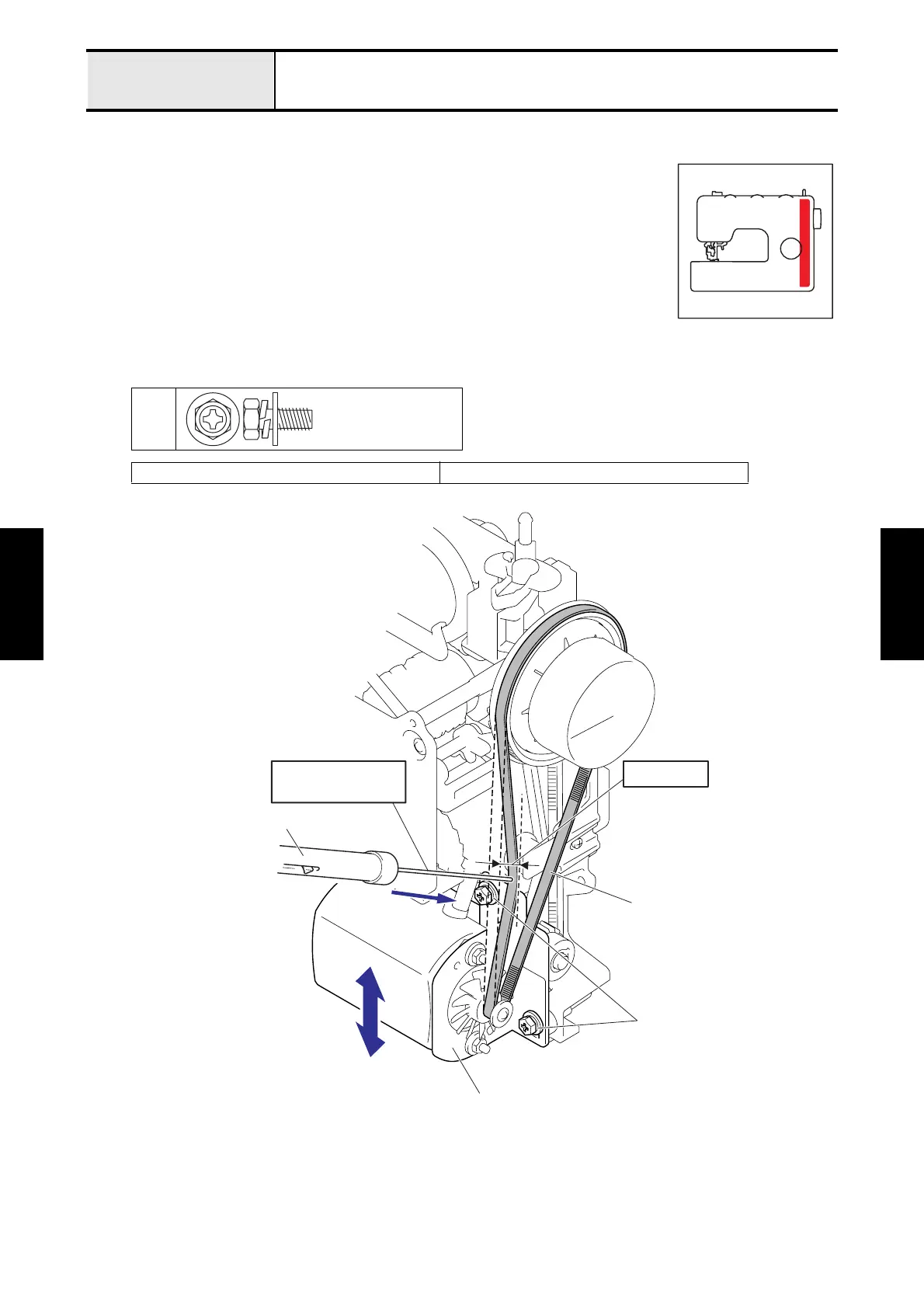

Motor belt

Motor holder

Push-pull gauge

4.6 - 6 mm

Motor belt tension

0.98 N (100g)
