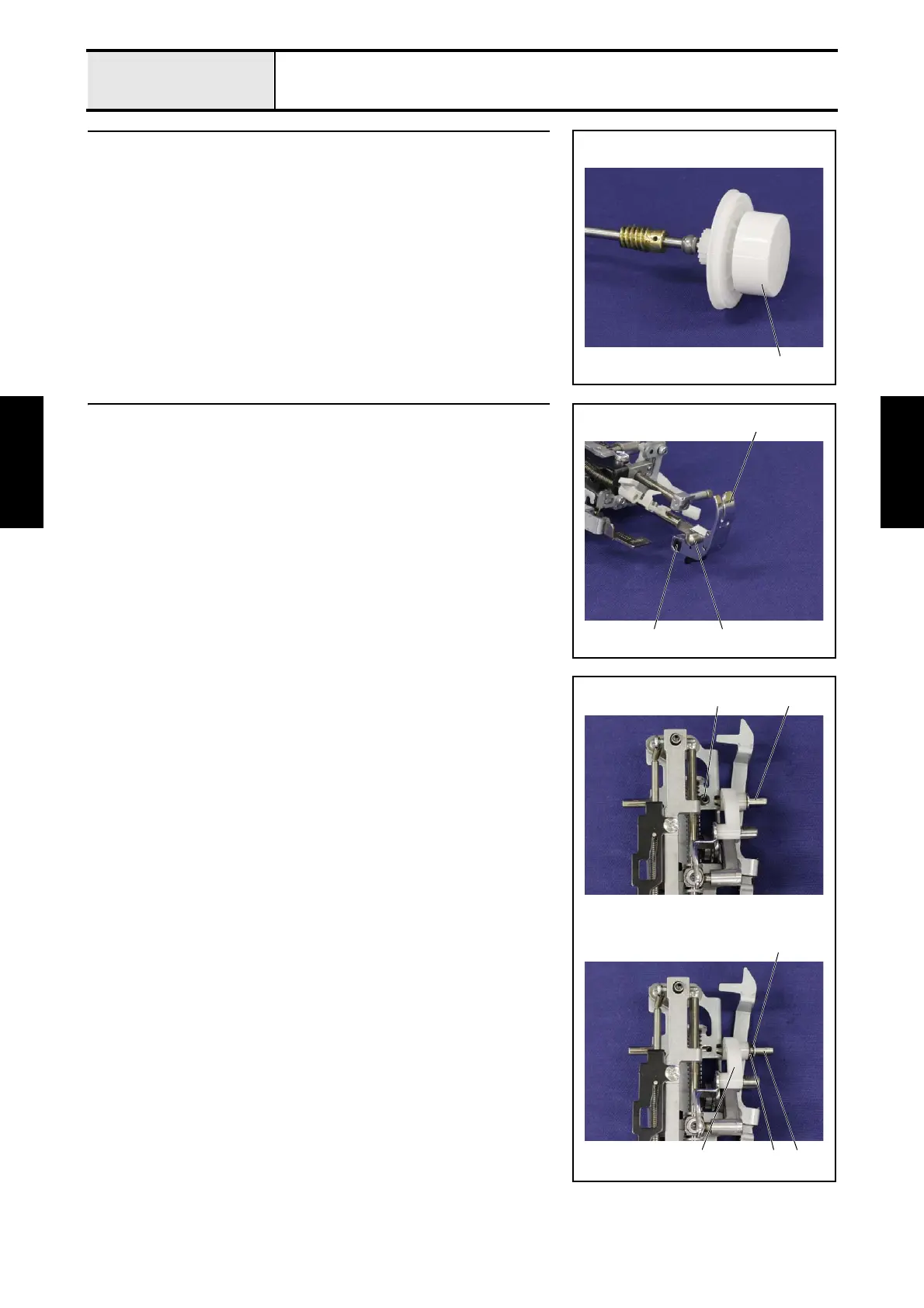

Upper shaft, Needle bar and Presser foot unit Application of Disassembly
Application Application
1 Disassembly of Upper shaft assy
1. Remove the pulley 1 from the upper shaft assy.
1
2 Disassembly of Needle-presser module
2-1 Removal of Presser foot holder assy
1. Remove the zigzag presser foot 1 from the presser foot holder assy 2.
2. Remove the screw 1, and then remove the presser foot holder assy 2
from the presser bar.
1
1
2
2-2 Removal of Thread take-up lever link
1. Remove the screw 1, and then pull out the shaft 1 to remove the thread
take-up lever link 2 and the washer,spring 3 from the base holder assy.
2. Remove the retaining ring E4 4 from the shaft 1.
1
1
4
1
32
