3 - 48

Upper shaft, Needle bar and Presser foot unit

Application of Assembly

Application

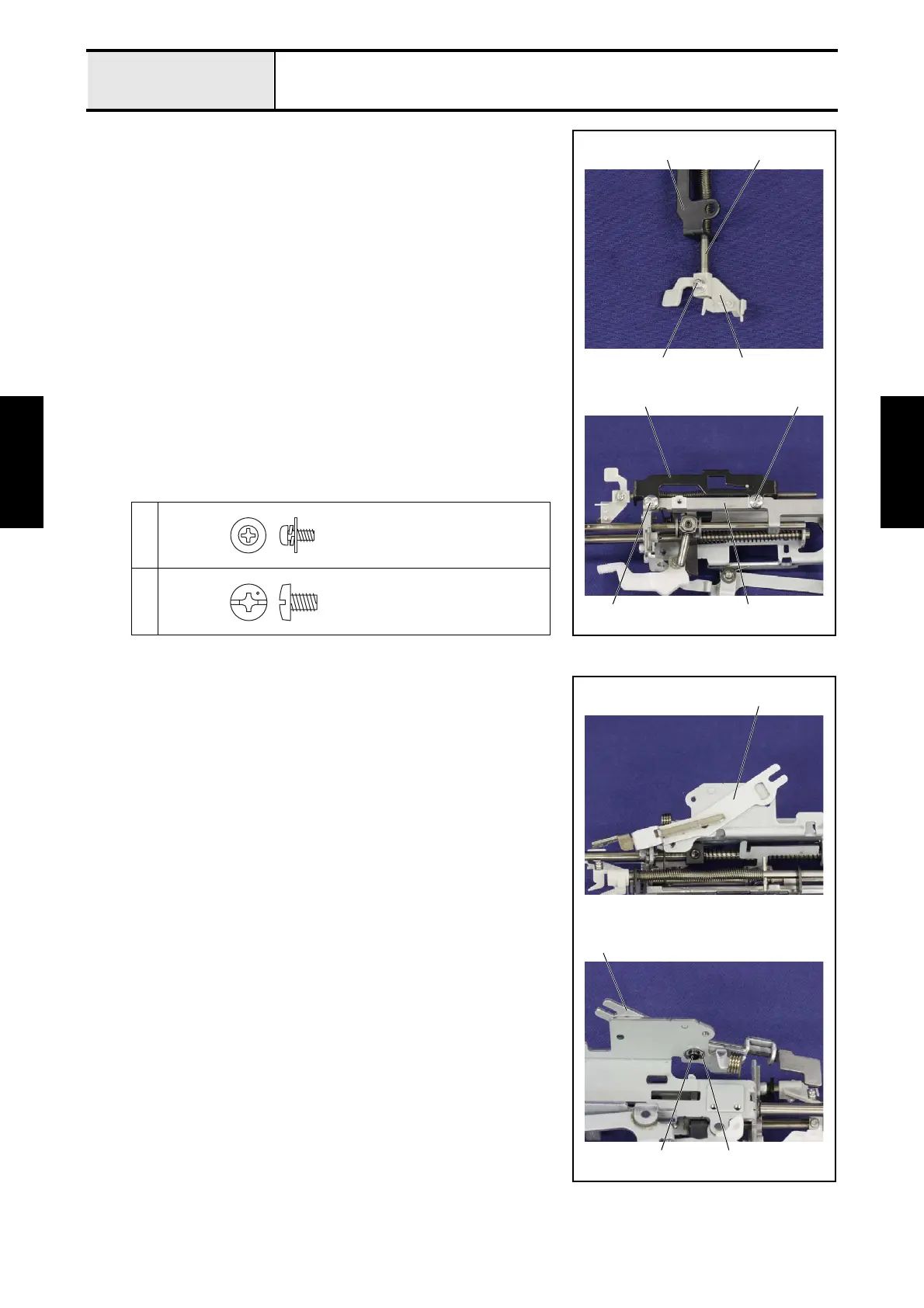

1-13 Attachment of Thread guide plate assy

1. Set the needle thread lever assy 1 to the thread guide shaft 2 of the thread

guide plate assy 3, and then tighten the screw 1 temporarily.

*Key point

• Fully tighten the screw 1 after performing "4-42 Adjustment:

Needle threader".

2. Set the thread guide plate assy 3 to the needle bar supporter assy 4, and

then tighten the screw 2 temporarily.

3. Tighten the washer plain S4.37 and the screw 3 temporarily.

*Key point

• Fully tighten the screw 2 and 3 after performing "4-42

Adjustment: Needle threader".

3 2

Screw, Pan (S/P washer)

M2.6X6DB

Screw, Bind

M4X6

1-14 Attachment of BH lever holder assy

1. Set the shaft 1 of the BH lever holder assy 2 to the hole of the base

holder assy, and then attach the retaining ring E4 3.

1 3
