Brother LX27NT - Assembly of Feed Bracket Sub Assy

3 - 54
Feed control mechanism Application of Assembly
Application Application

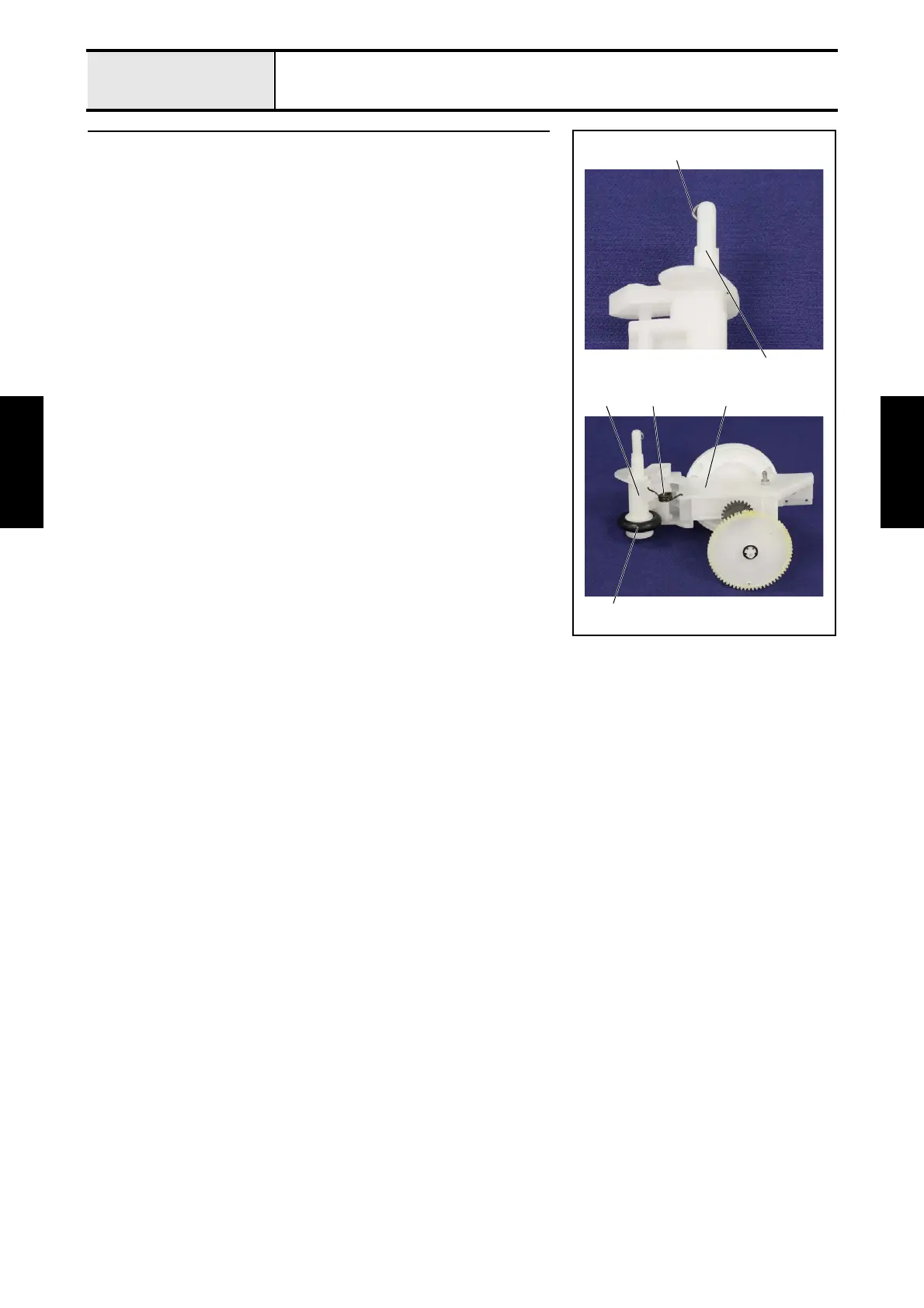

1 Assembly of Feed bracket sub assy
1. Set the bobbin winder shaft spring 1 to the bobbin winder assy 2.
2. Set the bobbin winder rubber band 3 to the bobbin winder assy 2.
3. Assemble the bobbin winder assy 2 and the feed bracket sub assy 5, and
then set the bobbin winder spring 4 to the bobbin winder assy 2 and the
feed bracket sub assy 5.
4. Close the bobbin winder assy 2.
4
3
52
1
2
