Brother LX27NT - Removal of Feed Module

2 - 11
Basic of Disassembly Feed unit
Basic Basic
3 Removal of Feed module

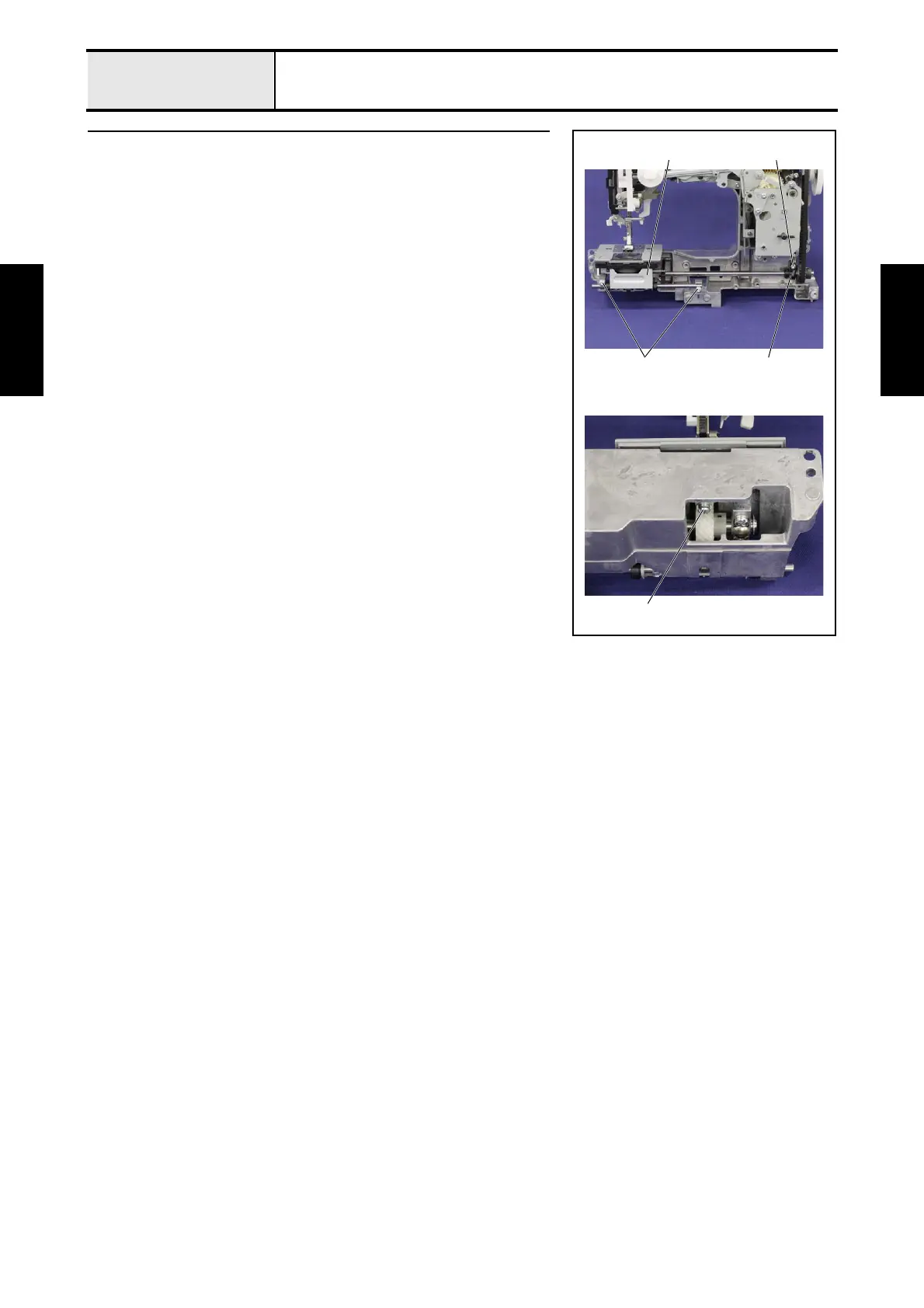

1. Remove the screw 1, and then remove the bushing presser 1.
2. Remove the screw 2 and the 2 screws 3, and then remove the feed
module 2.
→Refer to 3 - 9 of the Disassembly.
