Brother LX27NT - Disassembly of Rear Cover Assy; Removal of Bobbin Presser; Removal of Spool Pin; Removal of Thread Guide Assy

3 - 5
Main frame and Covers Application of Disassembly
Application Application

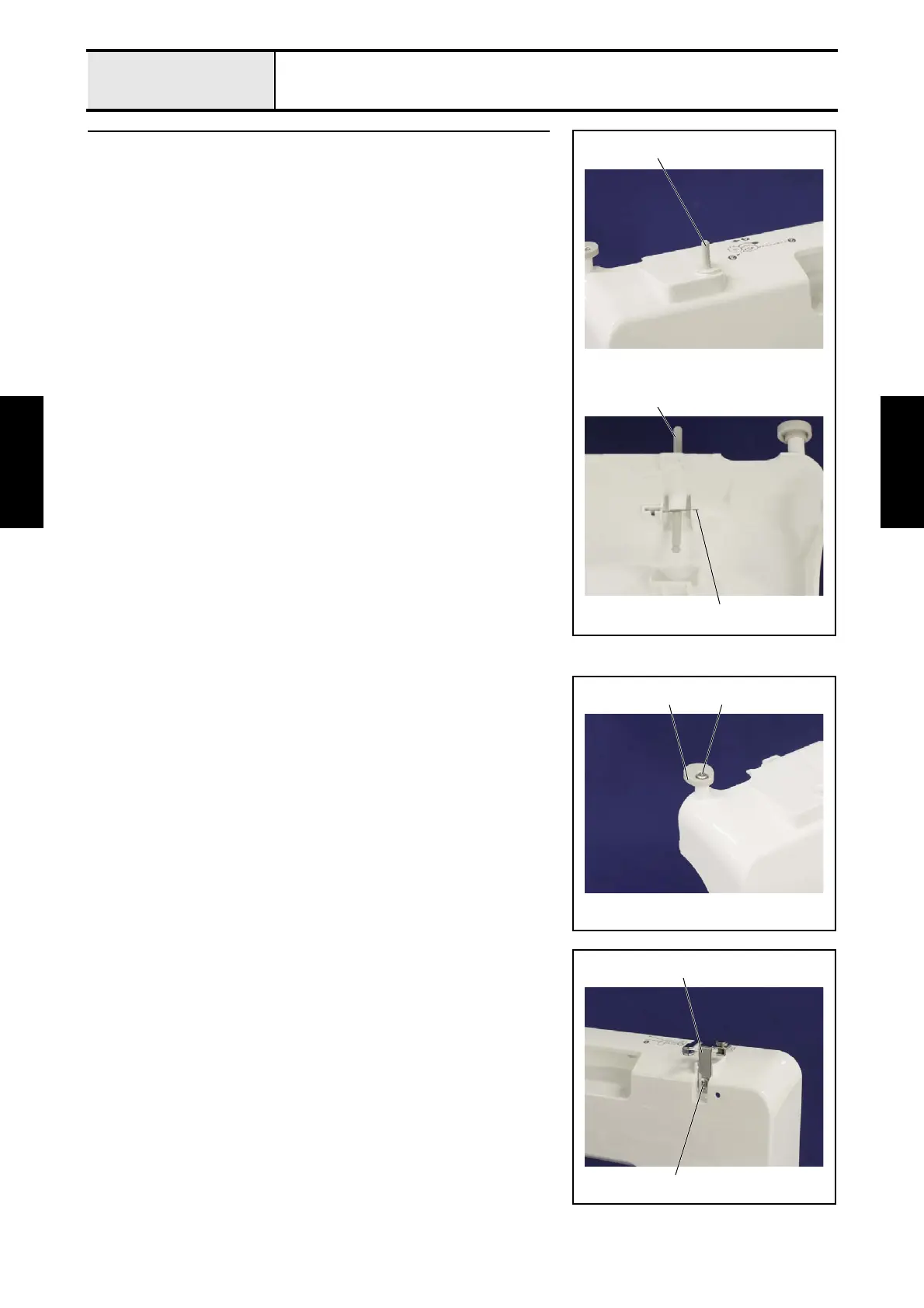

3 Disassembly of Rear cover assy
3-1 Removal of Spool pin
1. Remove the spool pin 1 while pulling the spool pin spring 2.
2. Remove the spool pin spring 2.
1
2
1
3-2 Removal of Bobbin presser
1. Remove the screw 1, and then remove the bobbin presser 1.
1 1
3-3 Removal of Thread guide assy
1. Remove the screw 1, and then remove the thread guide assy 1.
1
1
