Brother LX27NT - Removal of Tension Pulley Assy; Removal of Feed Adjuster Assy

2 - 10
Feed unit Basic of Disassembly
Basic Basic

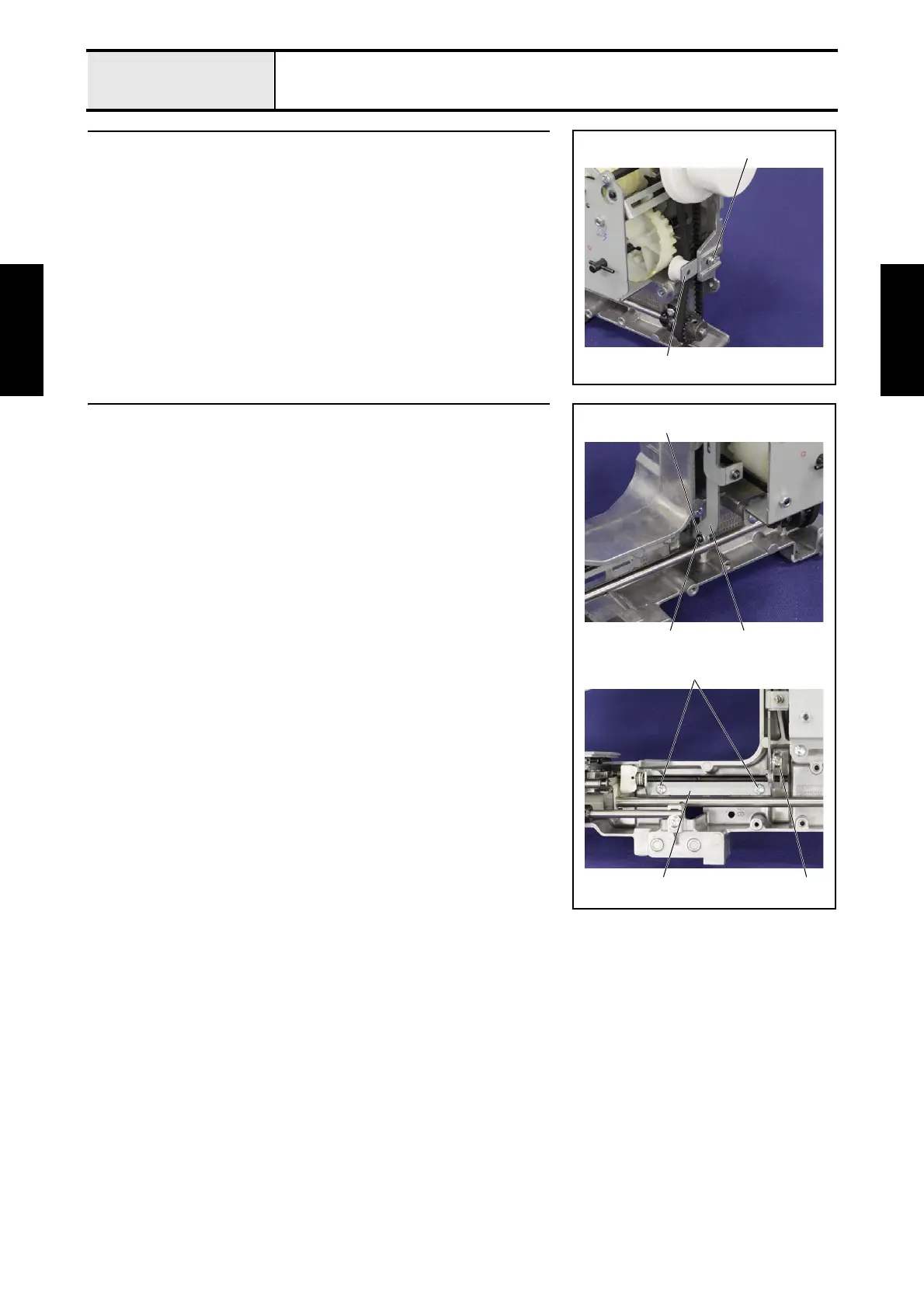

1 Removal of Tension pulley assy
1. Remove the screw 1, and then remove the tension pulley assy 1.
1
1
2 Removal of Feed adjuster assy
1. Remove the retaining ring E4 1, and then remove the connecting rod D 2
from the shaft 3 of the feed connecting lever assy 4.
2. Remove the 2 screws 1, and then remove the feed adjuster assy 5.
→Refer to 3 - 9 of the Disassembly.
3
1
5
1
2
4
