3 - 69

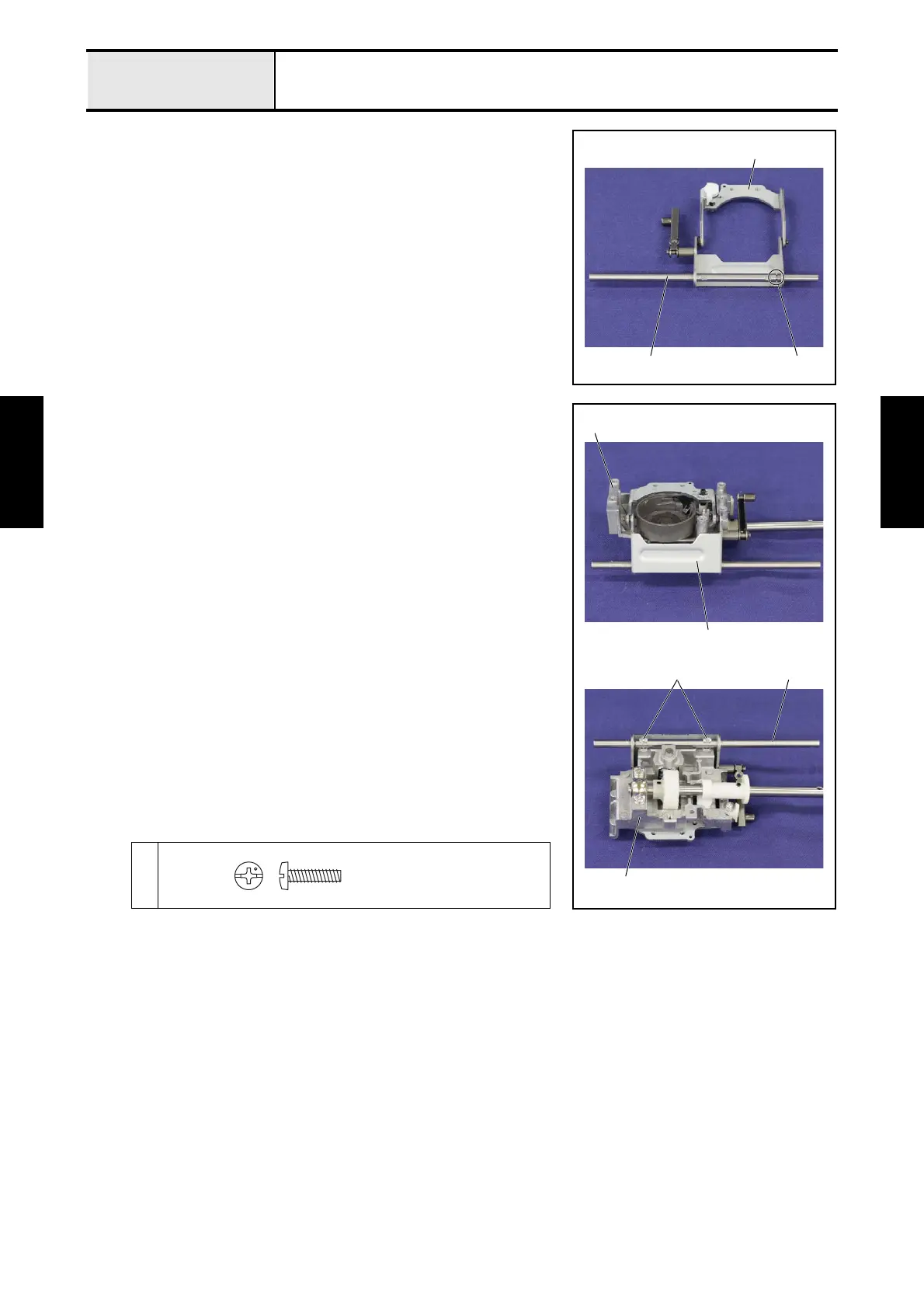

Feed unit
Application of Assembly
Application
Application
1-6 Attachment of Horizontal feed shaft
1. Insert the horizontal feed shaft 1 into the feed stand sub assy 2.
*Key point
Check that there is the groove 3 of the horizontal feed shaft
1 as shown in the right figure position.
3
2
1
1-7 Attachment of Feed stand sub assy
1. Set the feed stand sub assy 1 to the feed holder 2, and then secure the
horizontal feed shaft 3 with the 2 screws 1.
1
2
1
1
2
3
Screw, Bind
M3X12
