Brother LX27NT User Manual

3 - 39

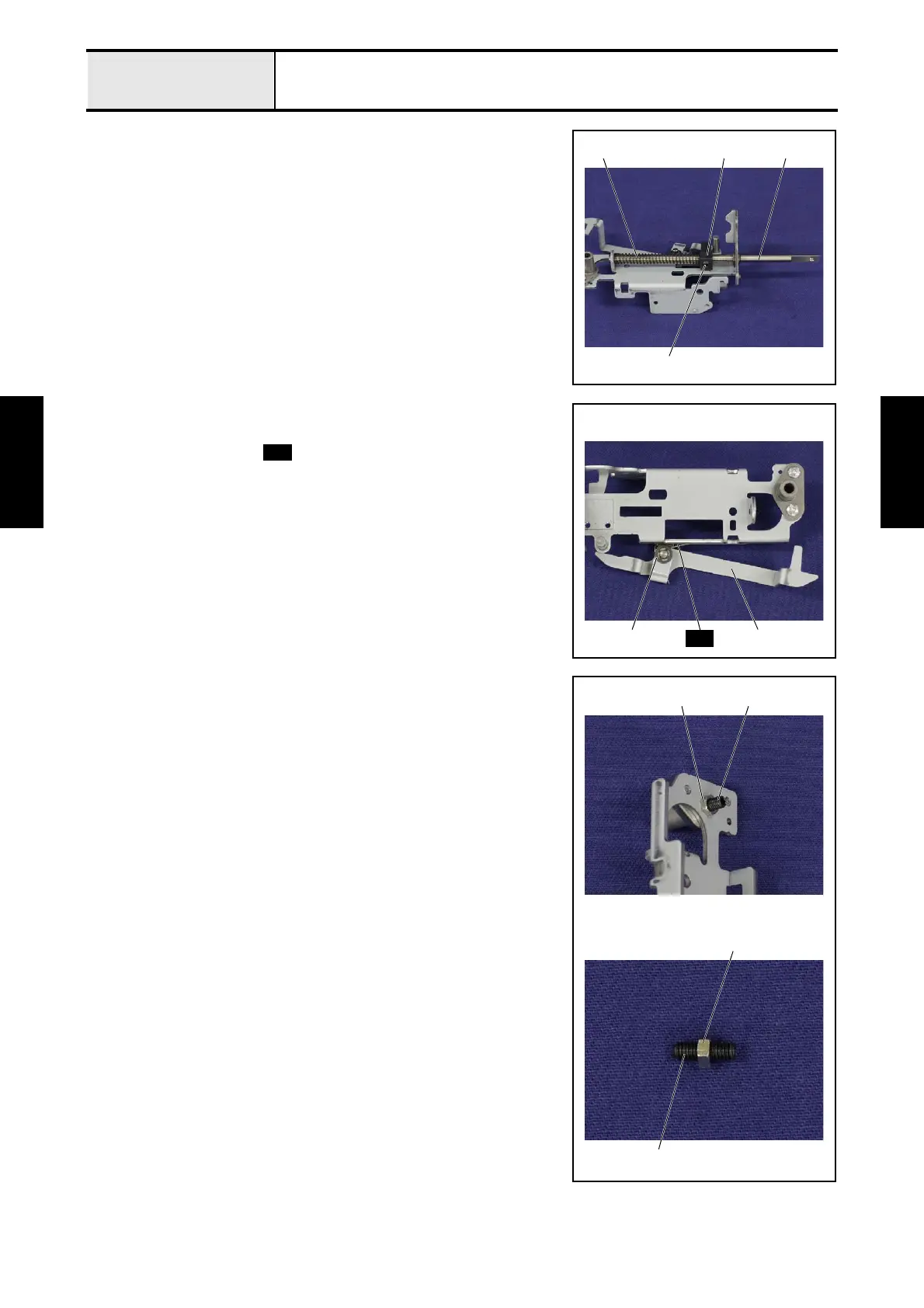

Upper shaft, Needle bar and Presser foot unit Application of Disassembly
Application Application
2-15 Removal of Presser bar
1. Remove the screw 1 from the presser bar clamp 1.
2. Pull out the presser bar 2 to remove the spring 3 and the presser bar
clamp 1 from the base holder assy.
1
1
23
2-16 Removal of Thread release lever
1. Remove the retaining ring CS4 1, and then remove the thread release
lever 2 and the spring from the shaft of the base holder assy.
2
S101
S10
2-17 Removal of Lock nut
1. Loosen the lock nut 1, and then remove the screw 1 from the base holder
assy.
2. Remove the lock nut 1 from the screw 1.
1
1
1
1
