2 - 7

Main motor unit

Basic of Disassembly

Basic

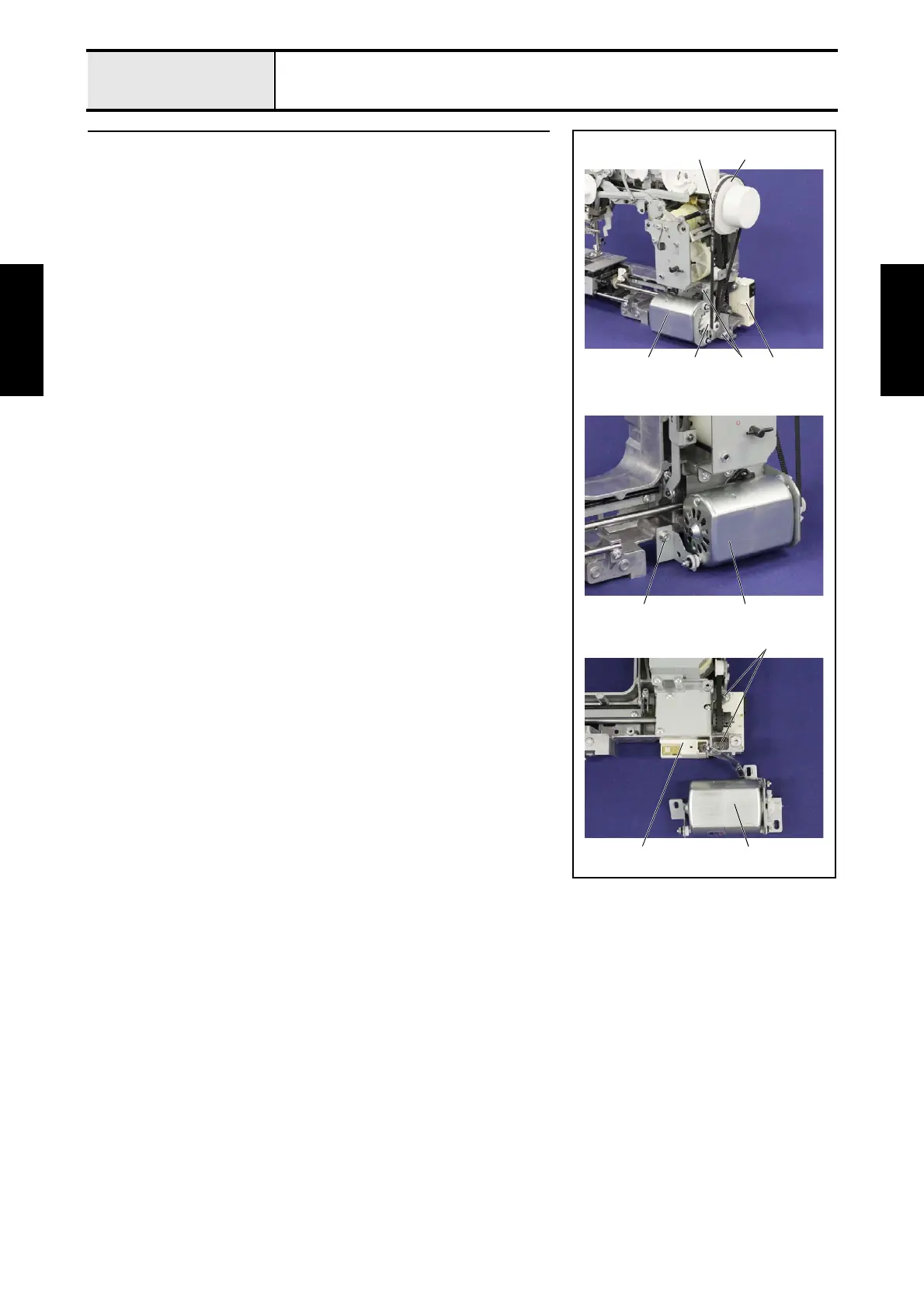

1 Removal of Motor 3P supply assy

 120V specification

1. Remove the timing belt 1 from the T pulley 2 and the motor T-pulley 3.

2. Remove the screw 1 and the 2 screws 2, and then remove the motor assy

4 of the motor 3P supply assy.

*Key point

• Be careful not to damage the fins of the motor T-pulley 3.

• Be careful not to pull the harness of the motor assy 4 by

force.

3. Remove the 2 screws 3, and then remove the 3P socket unit 5 of the

motor 3P supply assy.

→Refer to 3 - 7 of the Disassembly.

4 23
