3 - 75
Feed unit Application of Assembly
Application Application

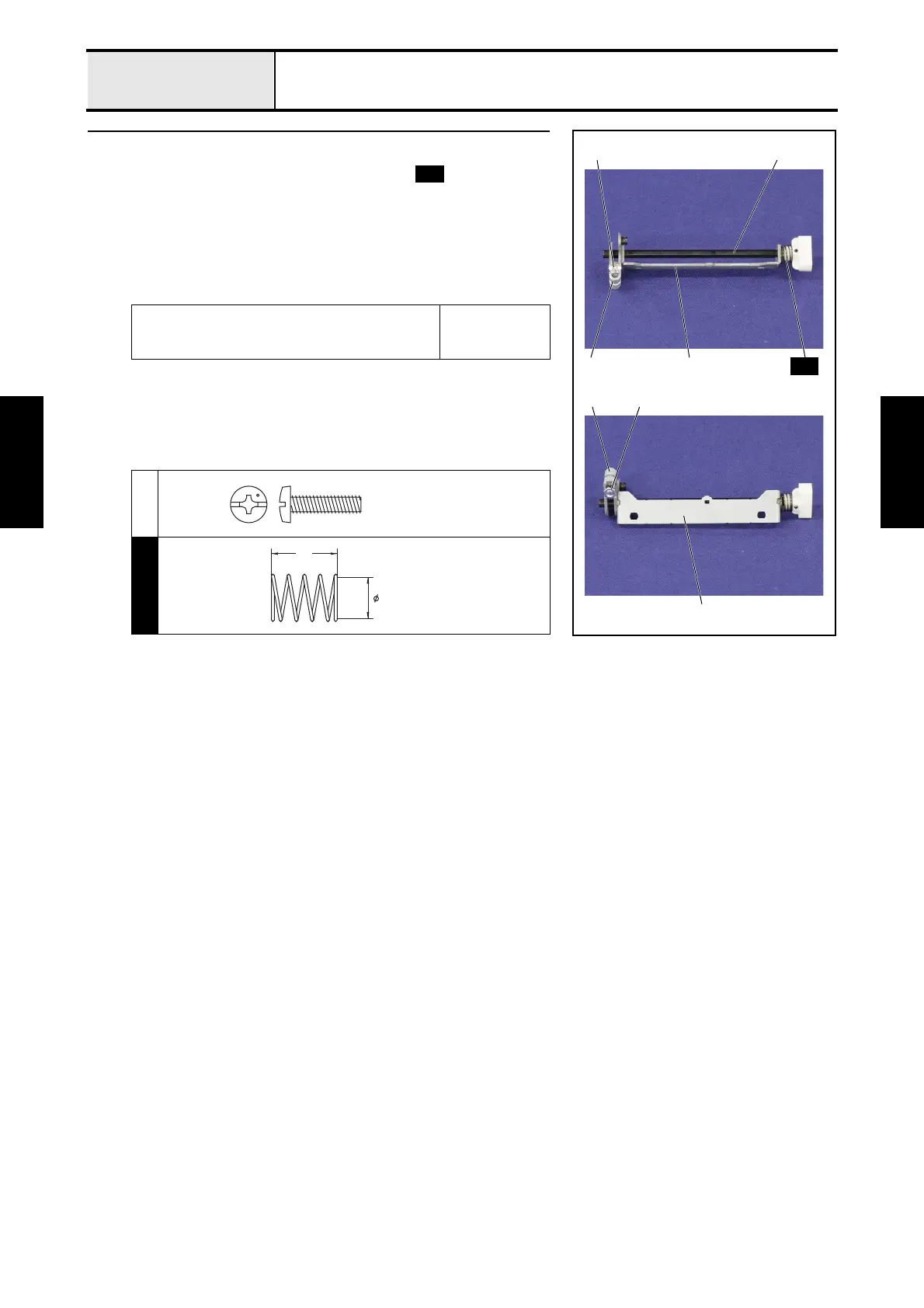

2 Assembly of Feed adjuster assy
1. Insert the feed adjuster sub assy 1 into the spring , the feed adjusting
shaft holder 2 and the feed connecting lever assy 3.
2. Set the screw 1 to the feed connecting lever assy 3, and then tighten the
nut 2 M4 4 temporarily.
*Key point
• Fully tighten the screw 1 after performing "2-49 Attachment of
Feed adjuster assy".
Lubricate the EPNOC AP(N) 0 to the 2 sliding
surfaces of the feed connecting lever assy 3 and
the feed adjuster sub assy 1.
3mm dia. ball
1
S04
1
2
1
3
S04
4
2
3
S04
Screw, Bind
M4X16
9.4
15
SPRING
XE9731***

Brother LX27NT Specifications

General

Type	Manual sewing machine
Sewing speed	800
Stitch width	5 mm
Feed dog type	5 point
Product color	White
Buttonhole type	1 Step
Number of programs	-
Number of button holes	1
Sewing machine functions	Sewing
Automatic needle threader	Yes
Number of stitch patterns	27
Power supply type	Electric
