Brother LX27NT - Feed Distance

Inspection and
Adjustment
Inspection and
Adjustment
4 - 31

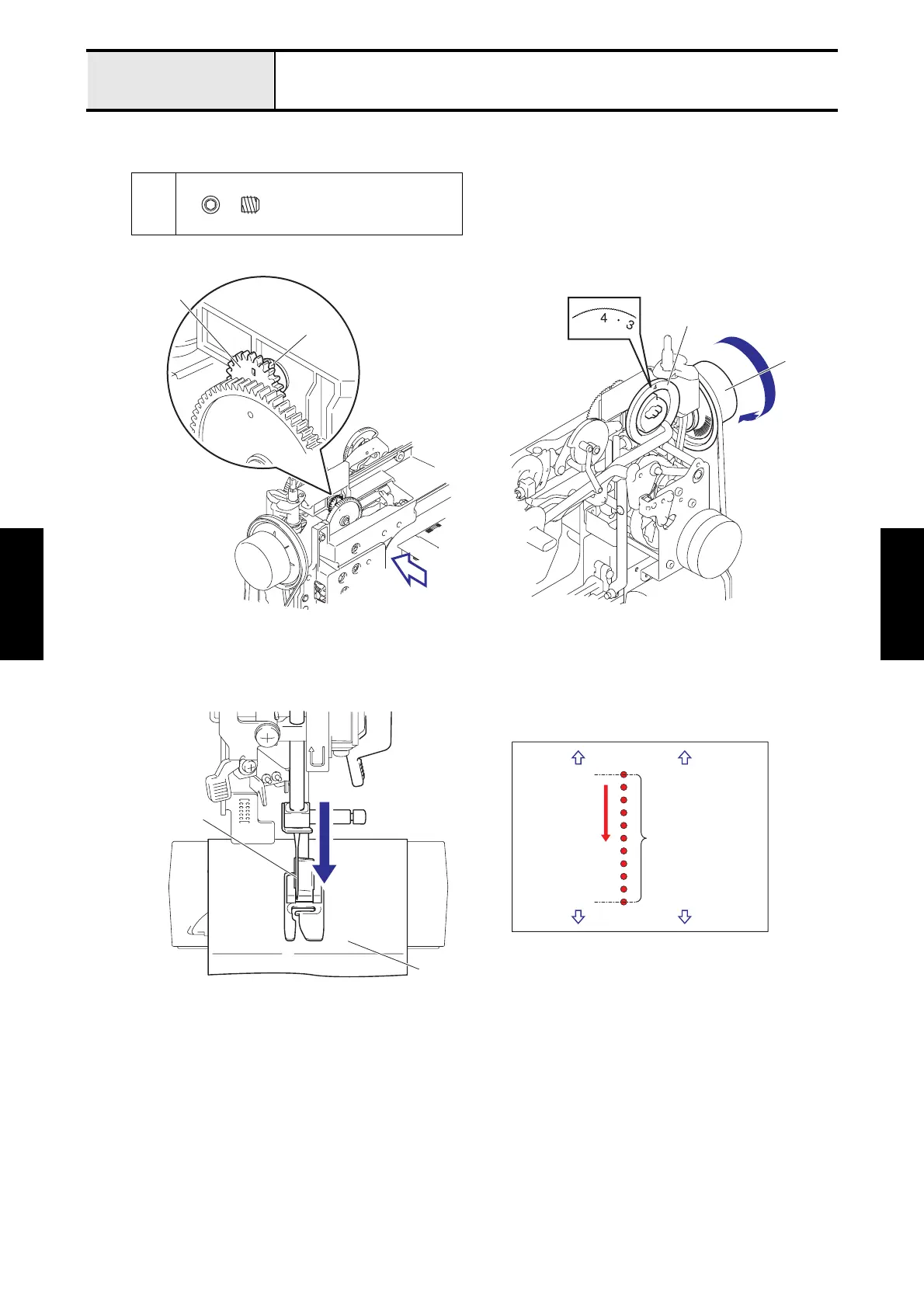

Adjustment Feed distance
<From previous page>
12. Tighten the screw 1 of the feed dial gear to secure the feed dial gear.
13. Turn the
stitch length dial until the [4] is the topmost position.
14. Turn the pulley by hand to the direction of the arrow and drop 11 stitches on a paper, and check the feed length.
*Key point
• At stitch length dial [4] (feed : maximum), the feed length should be more than 36 mm when sewing at 10
pitches. (Fig. 2)
1
Set Screw, Socket (CP)
M4X4
Stitch length dial
Feed dial gear
Back side view
Pulley
1
Needle
Paper
START
11th stitch
10 pitches:
more than 36 mm
OK
Rear side
Front side
Fig. 2
