Brother LX27NT - Disassembly of Z Dial Assy

3 - 25
Zigzag mechanism Application of Disassembly
Application Application

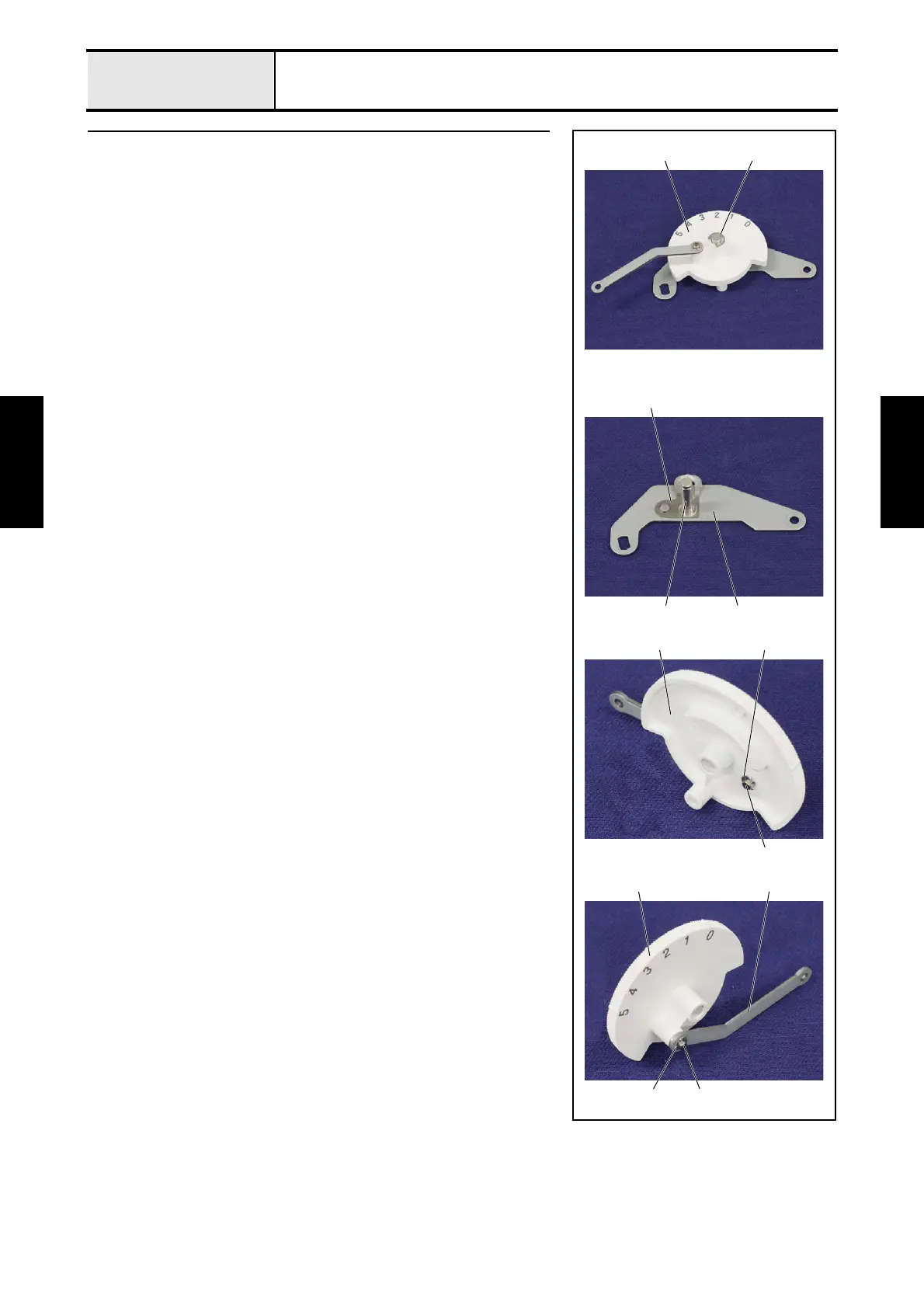

1 Disassembly of Z dial assy
1. Remove the retaining ring E4 1, and then remove the Z dial 2 and the
notched spring 3 from the shaft 4 of the Z dial holder assy 5.
2. Remove the retaining ring E2 6, and then remove the ES pin F-B 7 and
the Z dial connecting rod 8 from the Z dial 2.
3. Remove the retaining ring E2 9 from the ES pin F-B 7.
7
2 8
9
7
2 6
2 1
5
3
4
