Upper shaft, Needle bar and Presser foot unit

Application of Disassembly

Application

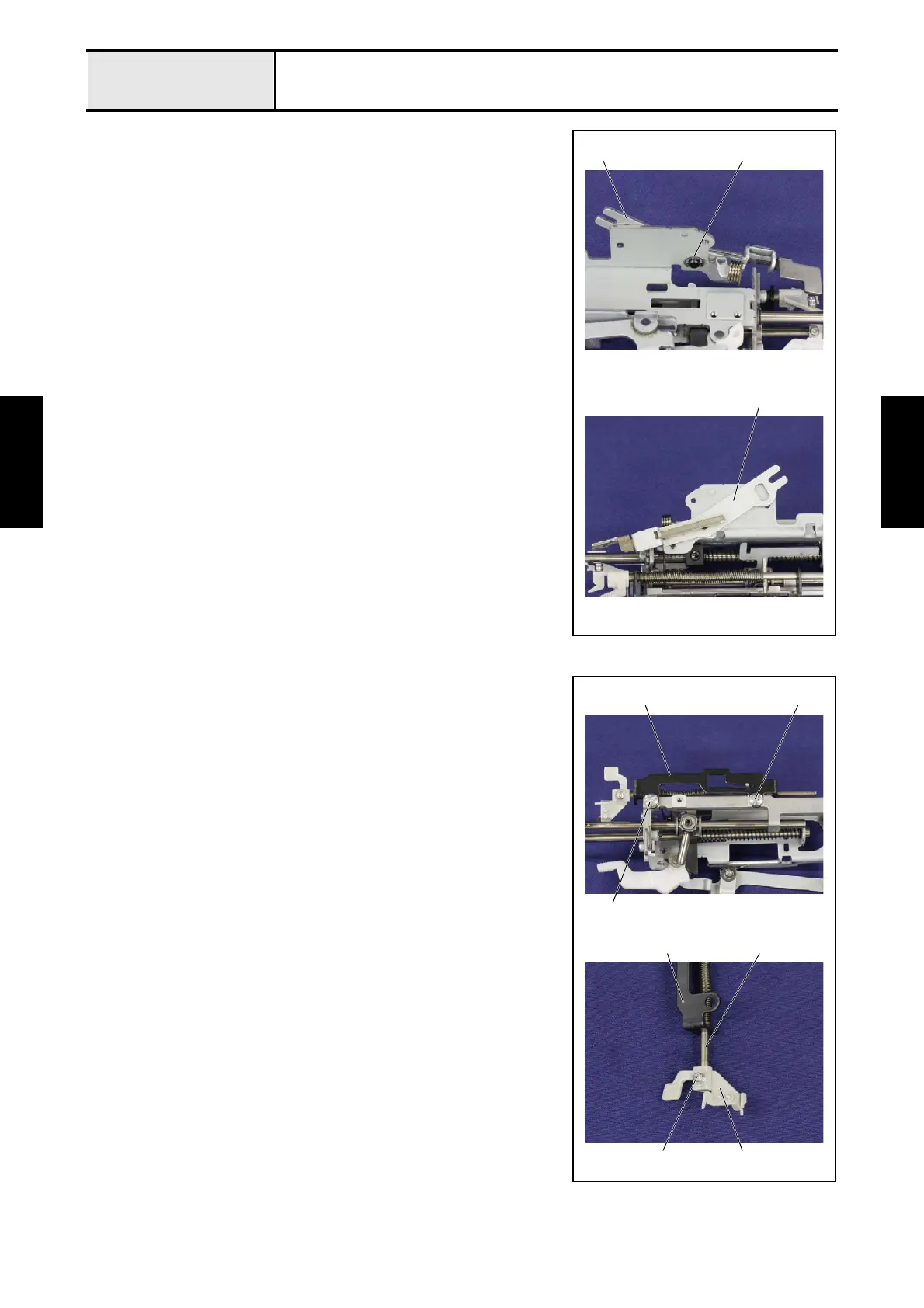

2-5 Removal of BH lever holder assy

1. Remove the retaining ring E4 1, and then remove the BH lever holder

assy 2 from the base holder assy.

2 1

2-6 Removal of Thread guide plate assy

1. Remove the screw 1 and the washer plain.

2. Remove the screw 2, and then remove the thread guide plate assy 1.

3. Remove the screw 3, and then remove the needle thread lever assy 2

from the thread guide shaft 3 of the thread guide plate assy 1.

1 2

1 3
