Upper shaft, Needle bar and Presser foot unit

Application of Disassembly

Application

2-3

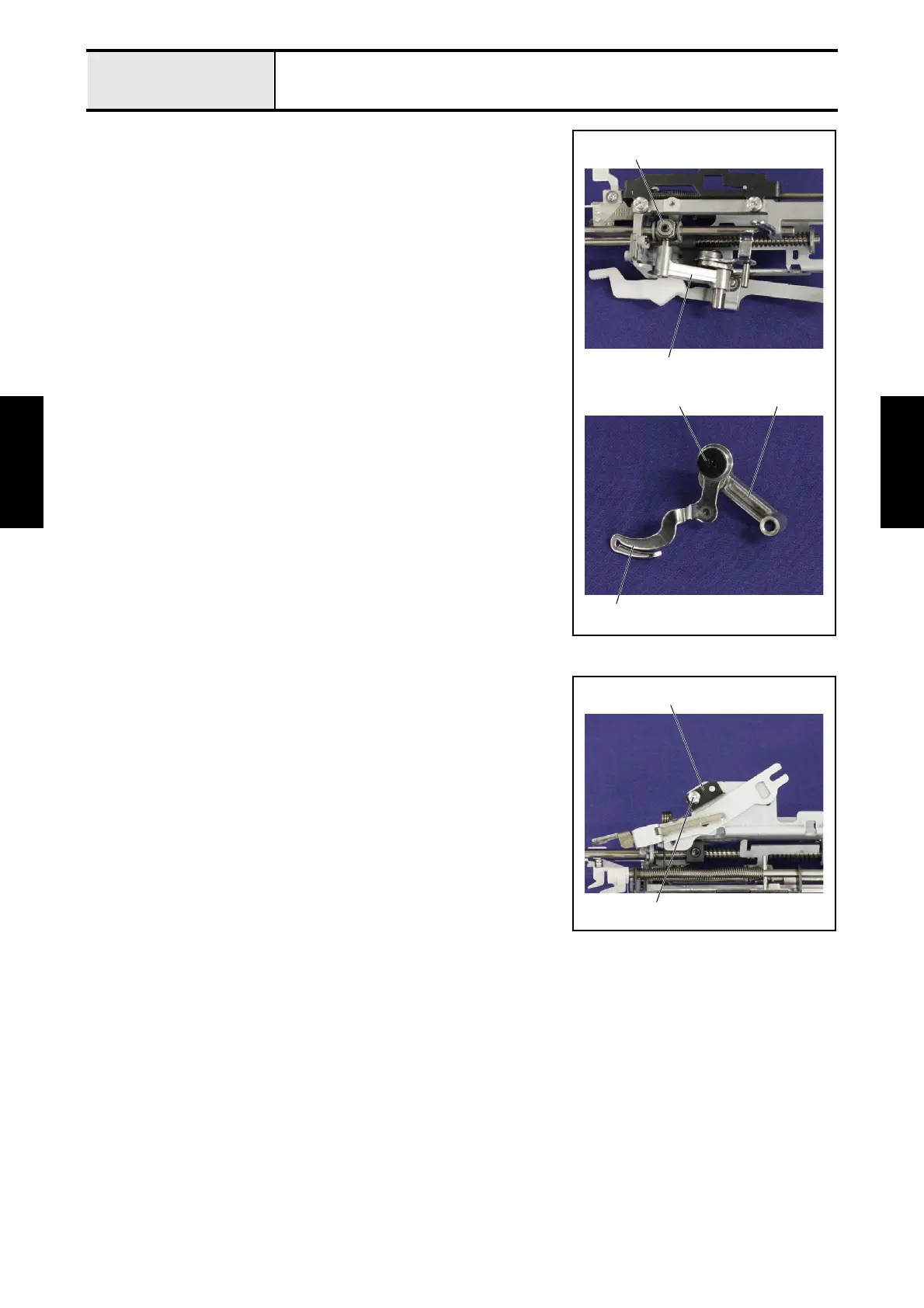

Removal of Needle bar crank rod assy / Thread take-up lever

1. Remove the needle bar crank rod assy 1 from the shaft of the needle bar

block 2.

2. Remove the screw 1, and then remove the thread take-up lever 3 from

the needle bar crank of the needle bar crank rod assy 1.

*Key point

• The screw is reverse threaded.

2-4 Removal of BH spring

1. Remove the screw 1, and then remove the BH spring 1 from the base

holder assy.
