Brother LX27NT - Attachment of BH Adjusting Plate

2 - 35
Basic of Assembly Buttonhole and Pattern selecting mechanism
Basic Basic

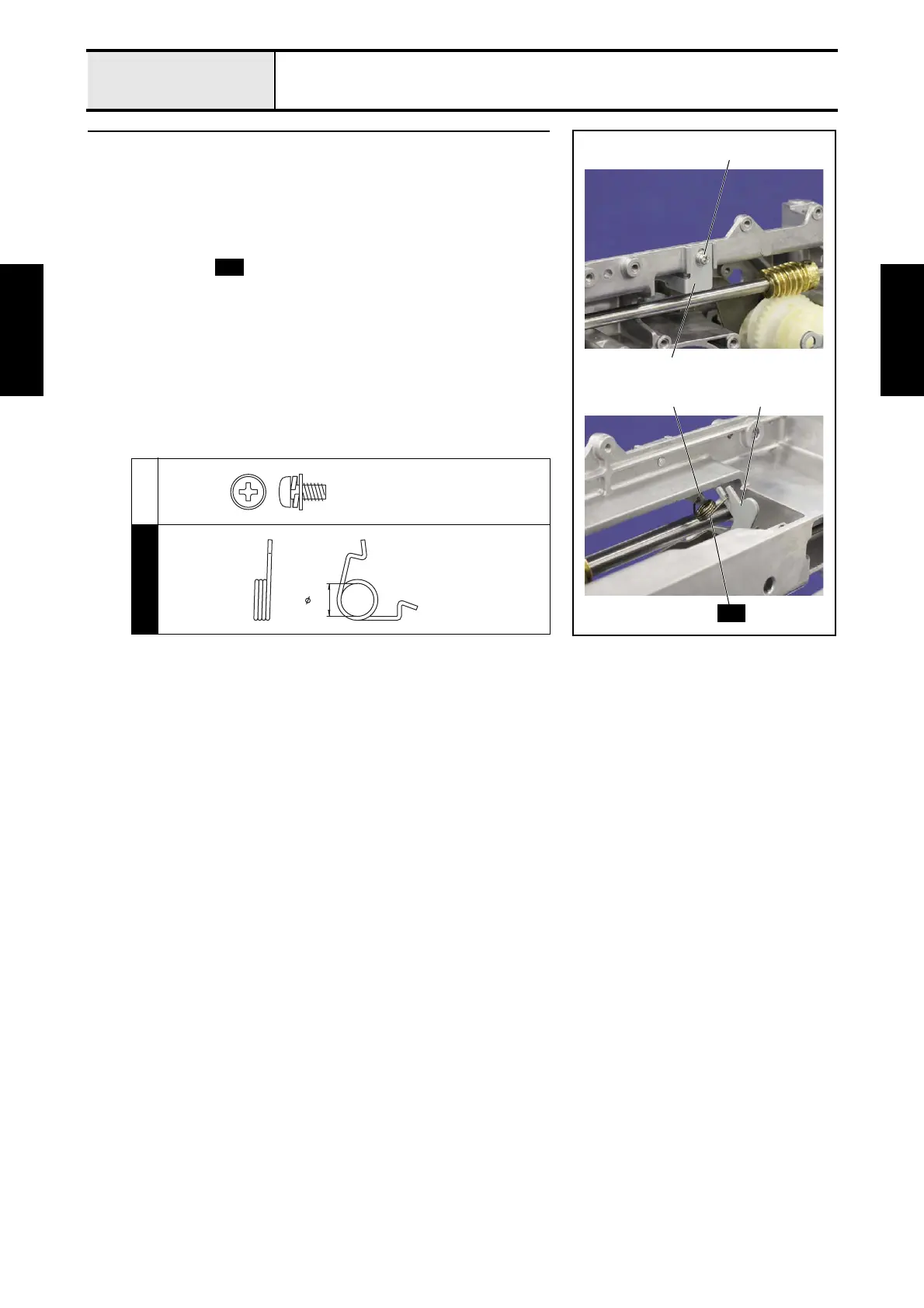

4 Attachment of BH adjusting plate
1. Set the BH adjusting plate 1 to the arm bed, and then tighten the screw 1
temporarily.
*Key point
• Fully tighten the screw 1 after performing "4-34 Adjustment:
BH lever switch load".
2. Set the spring to the BH change arm 2 and the BH adjusting plate
1.
1
S03
1
1
1
S03
2
S03
Screw, Pan (S/P washer)
M4X8DA
BH SPRING
XE9700***
7.5
