Brother LX27NT - Disassembly of Motor 3 P Supply Assy

3 - 7
Main motor unit Application of Disassembly
Application Application

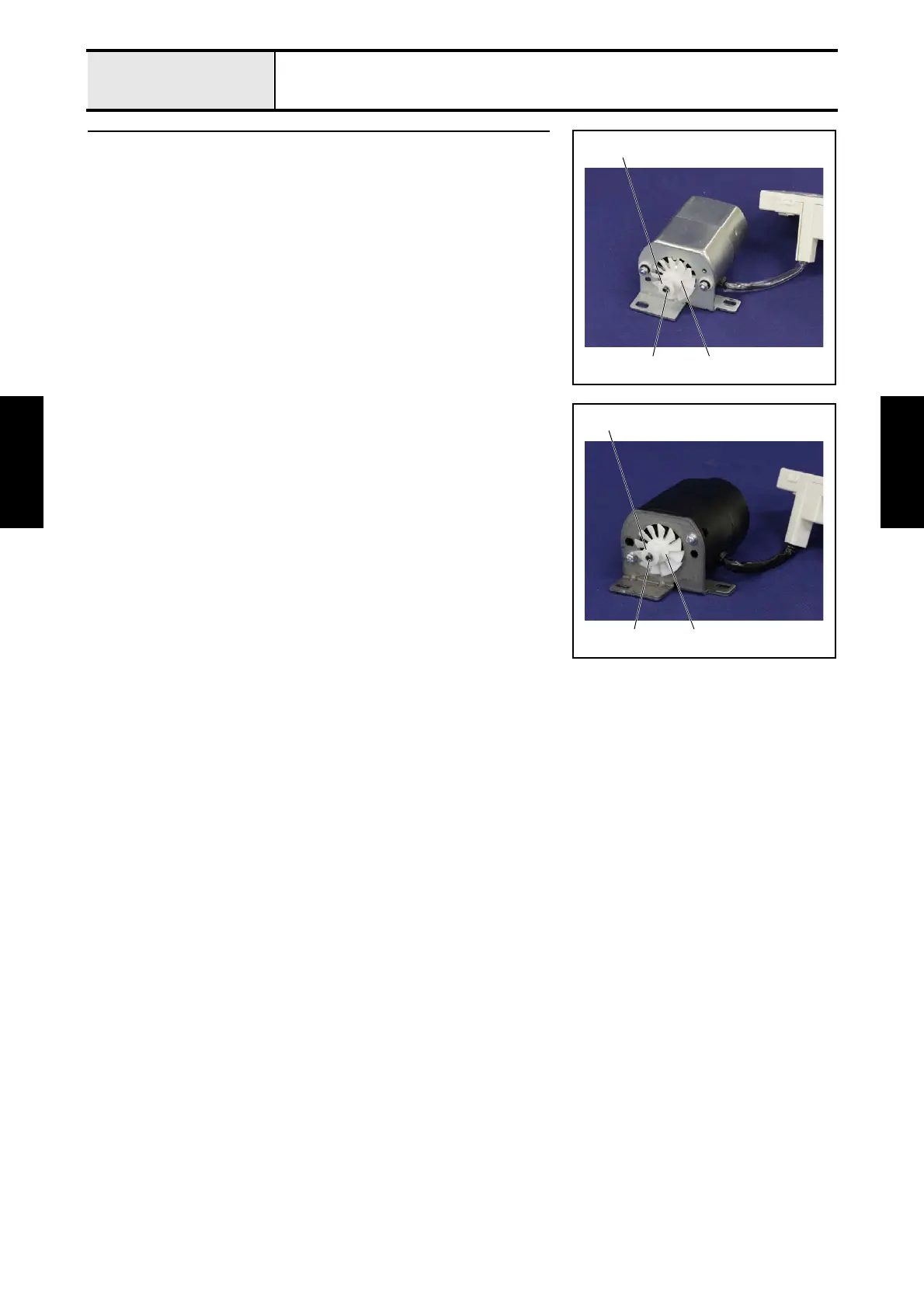

1 Disassembly of Motor 3P supply assy
 120V specification
1. Remove the retaining ring E3 1, and then remove the frange 2 and the
motor T-pulley 3.
31
2
 220 to 240V specification
1. Remove the retaining ring E3 1, and then remove the frange 2 and the
motor T-pulley 3.
31
2
