Brother LX27NT - Removal of Zigzag Link Holder Assy

2 - 16
Zigzag mechanism Basic of Disassembly
Basic Basic

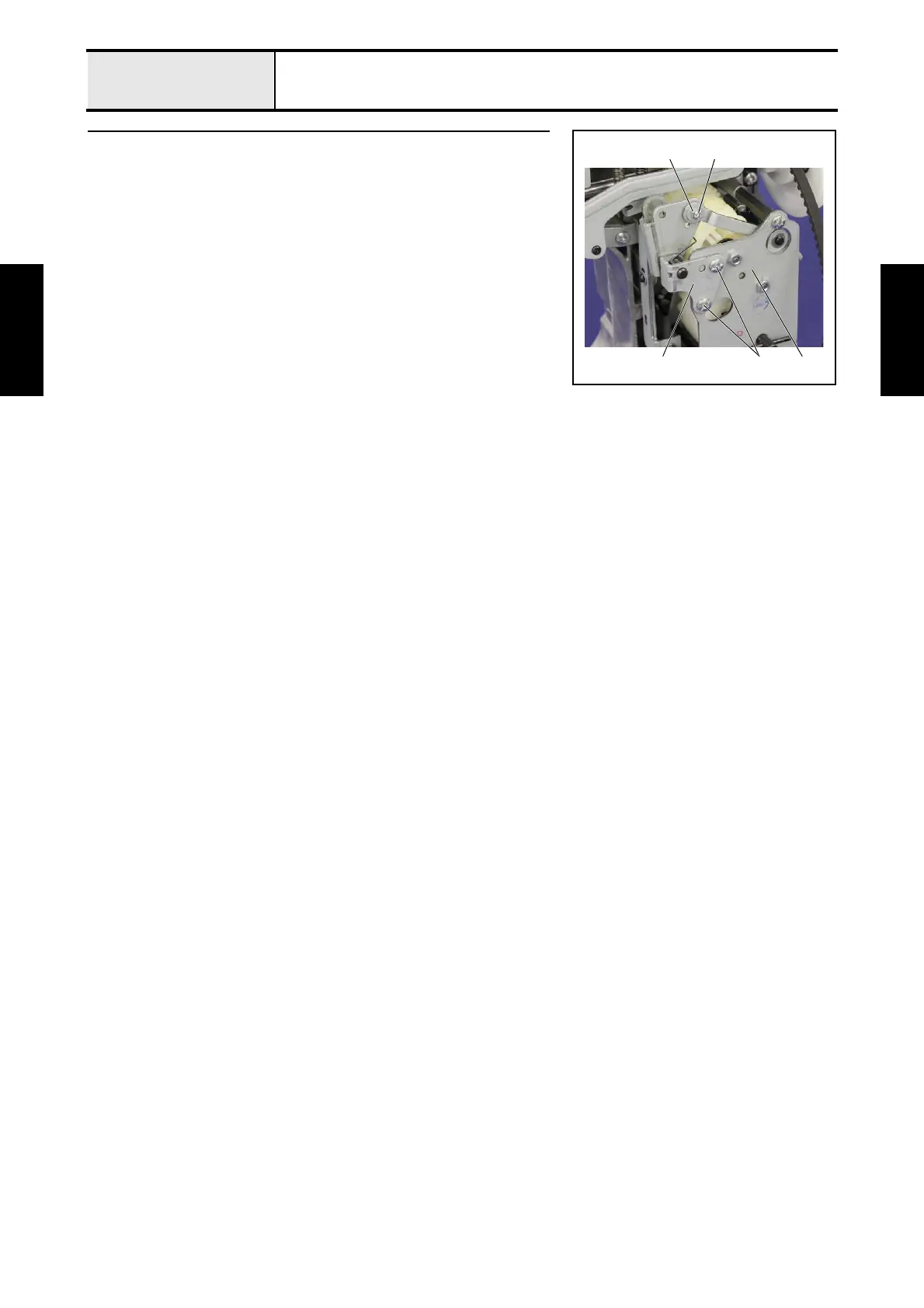

3 Removal of Zigzag link holder assy
1. Remove the screw 1, and then remove the zigzag adjusting nut 1.
2. Remove the 2 screws 2, and then remove the zigzag link holder assy 2
from the pattern selecting unit assy 3.
11
22 3
