Brother LX27NT - Attachment of Rear Cover Assy

2 - 54
Main frame and Covers Basic of Assembly
Basic Basic

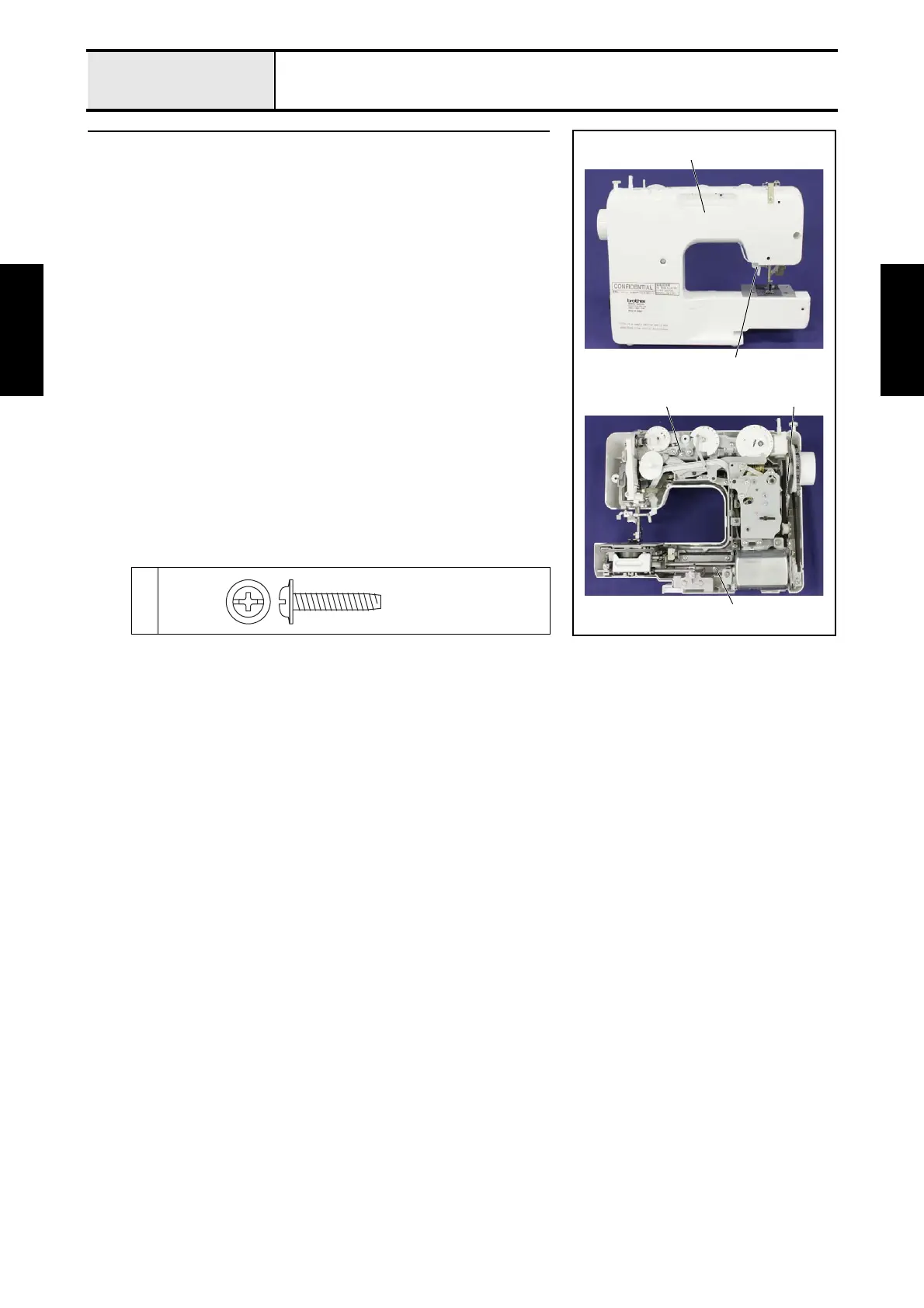

1 Attachment of Rear cover assy
1. Pull down the presser foot lifter 1.
2. Set the rear cover assy 2 to the arm bed, and then secure it with the 3
screws 1.
→Refer to 3 - 79 of the Assembly.
1
2
1
1
1
1
Taptite, Cup P
M4X20
