Brother LX27NT - Assembly of Rear Cover Assy; Attachment of Bobbin Presser; Attachment of Spool Pin; Attachment of Thread Guide Assy

3 - 79
Main frame and Covers Application of Assembly
Application Application

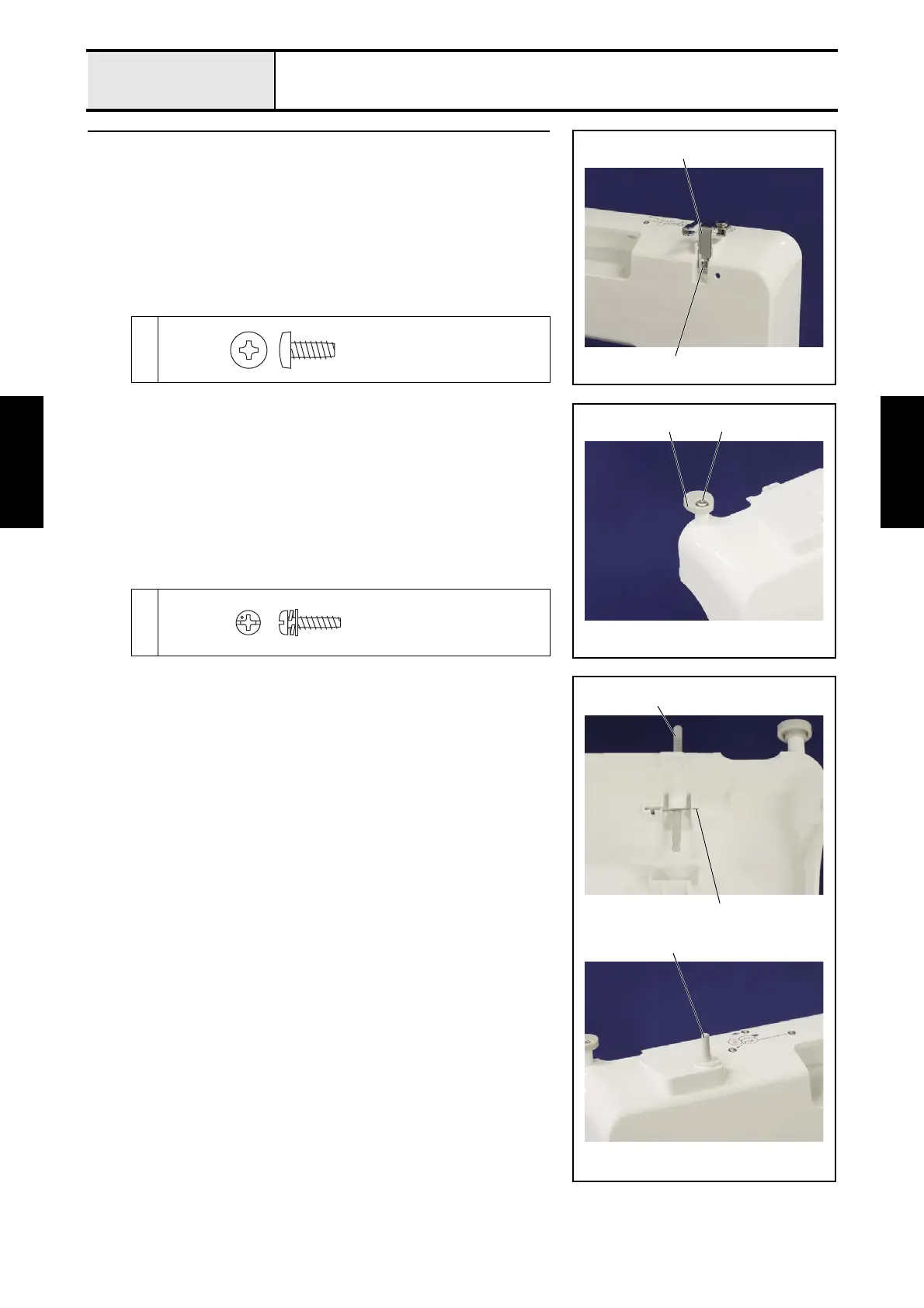

1 Assembly of Rear cover assy
1-1 Attachment of Thread guide assy
1. Set the thread guide assy 1 to the rear cover assy, and then tighten the
screw 1 temporarily.
*Key point
• Fully tighten the screw 1 after performing "4-41 Adjustment:
Bobbin winder".
1
1
1
Taptite, Bind B
M4X10
1-2 Attachment of Bobbin presser
1. Set the bobbin presser 1 to the rear cover assy, and then tighten the screw
1 temporarily.
*Key point
• Place the bobbin presser 1 with the smaller end facing the
rear.
• Fully tighten the screw 1 after performing "4-41 Adjustment:
Bobbin winder".
1
1 1
Taptite, Pan P (S/P W)
M3X12
1-3 Attachment of Spool pin
1. Set the spool pin spring 1 to the positioning groove of the rear cover assy.
2. Insert the spool pin 2 into the positioning hole of the rear cover assy while
pulling the spool pin spring 1.
2
1
2
