Brother LX27NT - Attachment of NT Lower Thread Cutter; Attachment of Slide Plate

3 - 74
Feed unit Application of Assembly
Application Application

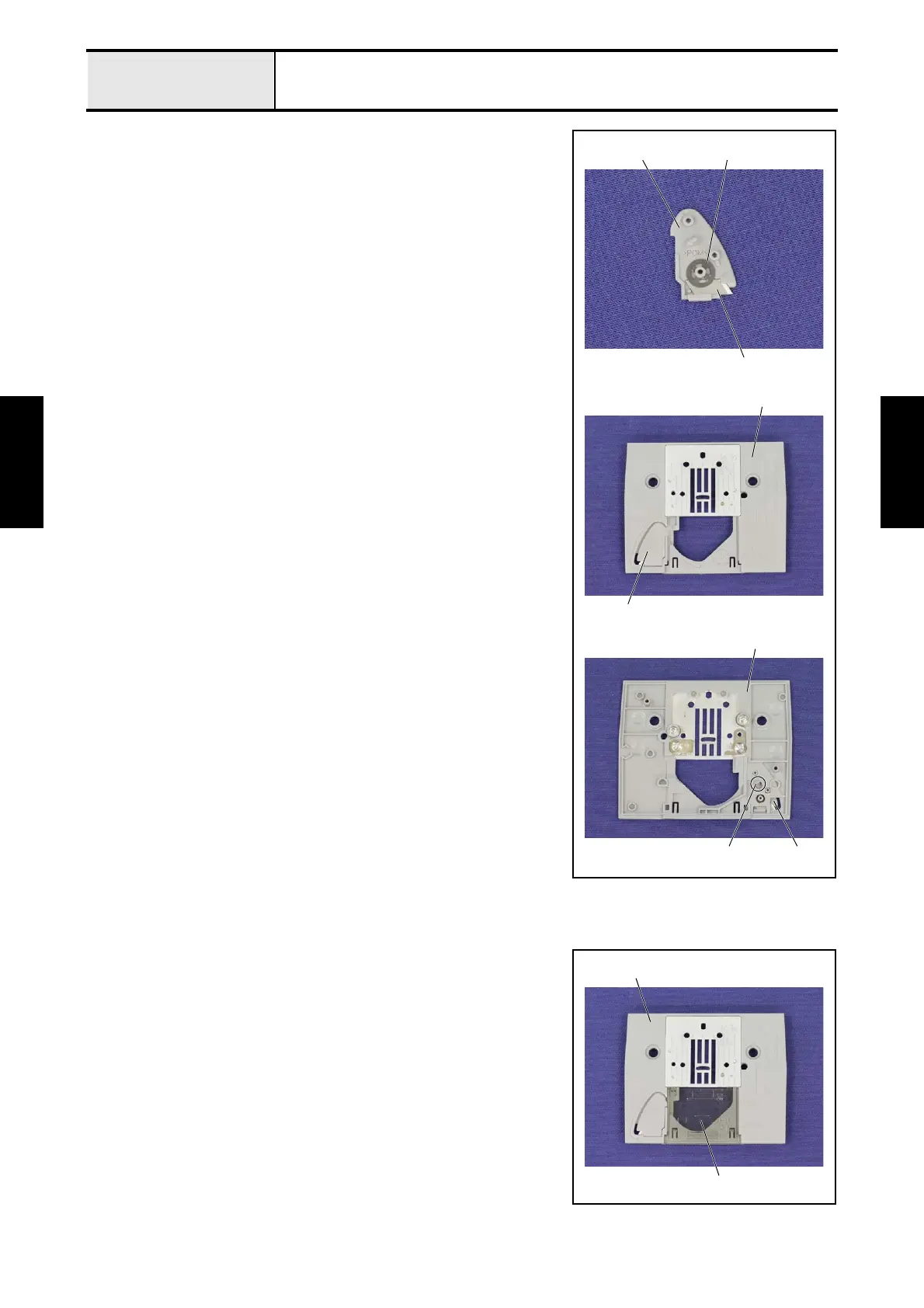

1-15-3 Attachment of NT lower thread cutter
1. Set the NT lower thread cutter 1 to the back side of the cutter cover 2,
and then attach the retaining ring CS3 3.
2. Set the cutter cover 2 to the needle plate B 4.
*Key point
• Check that hang the hook 5 of the cutter cover 2 on the back
side of the needle plate B 4.
1
32
2
4
5
4
1
1-15-4 Attachment of Slide plate
1. Set the slide plate 1 to the needle plate B 2.
2
1
