Brother LX27NT - Disassembly of Front Cover Assy; Removal of LED Lamp Supply Assy; Removal of Rubber Cushion a

3 - 4
Main frame and Covers Application of Disassembly
Application Application

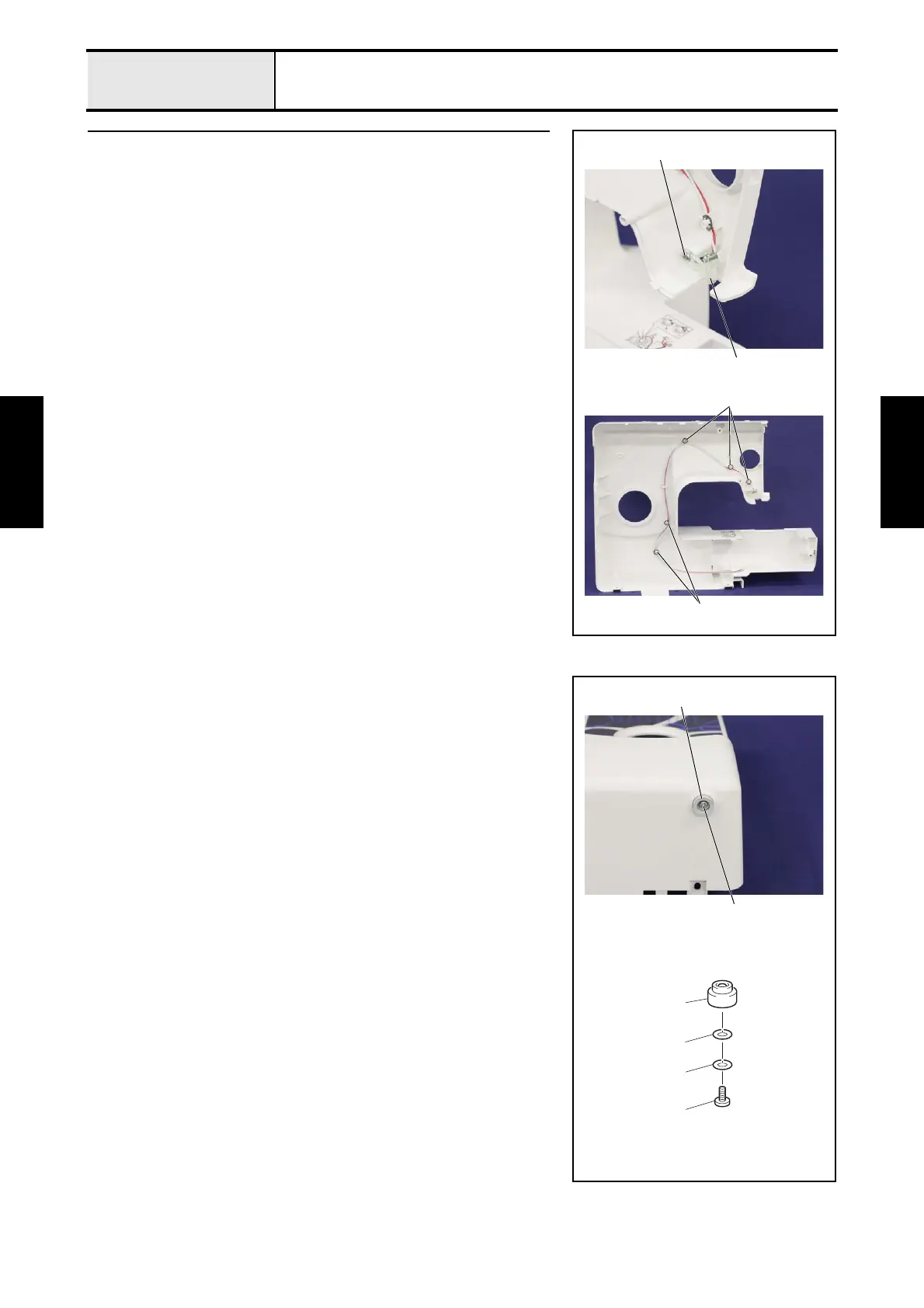

2 Disassembly of Front cover assy
2-1 Removal of LED lamp supply assy
1. Remove the screw 1, and then remove the LED lamp supply assy 1.
2. Remove the 5 retaining rings, CS4 2.
1
1
2
2
2-2 Removal of Rubber cushion A
1. Remove the screw 1, and then remove the washer plain M3.5 1, the
washer 2 and the rubber cushion A 3.
3
2
1
1
3
1
