Brother LX27NT User Manual

2 - 34
Basic of Assembly Buttonhole and Pattern selecting mechanism
Basic Basic

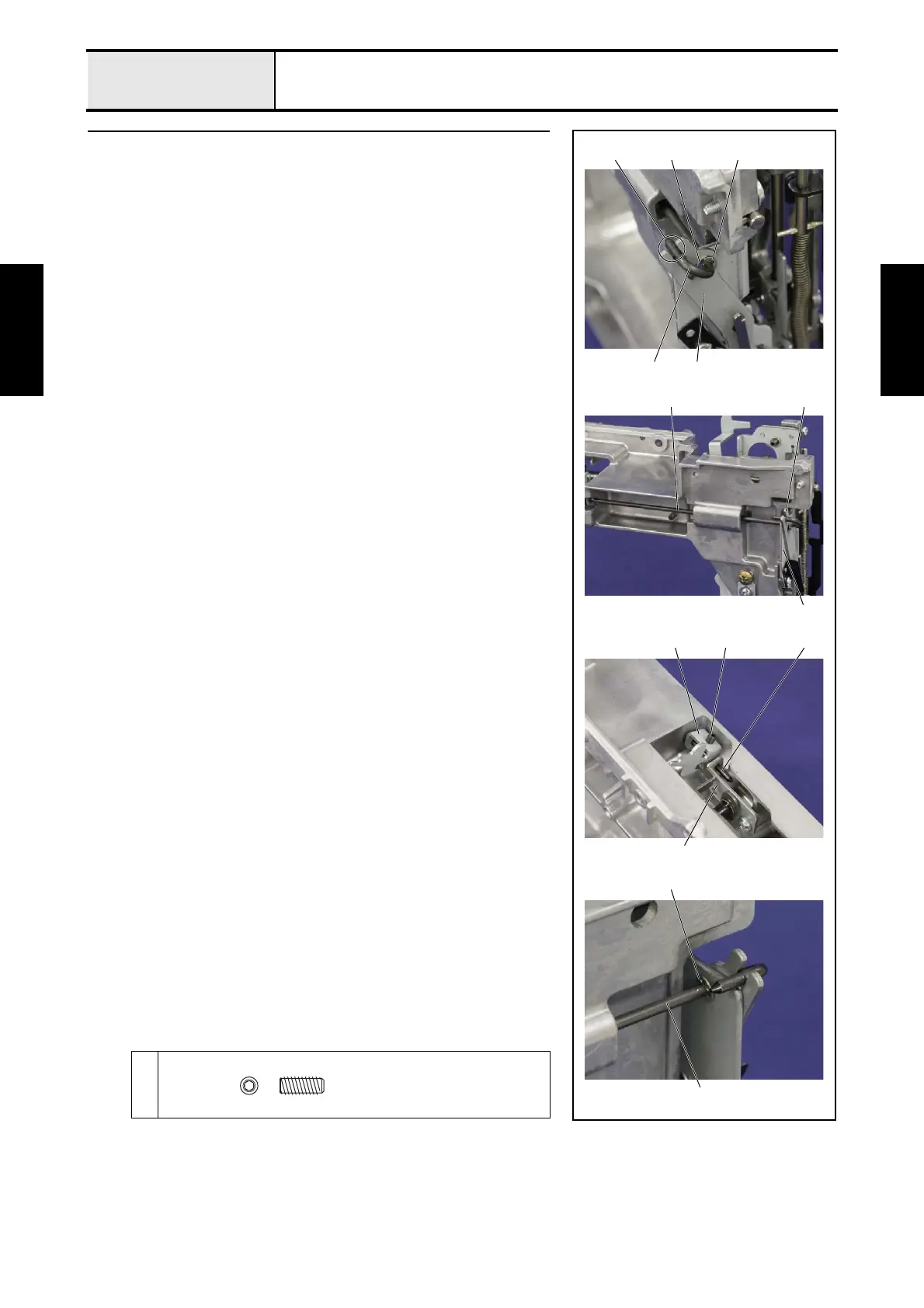

3 Attachment of BH connecting shaft
1. Attach the retaining ring E2.5 1 to the BH connecting shaft 2.
*Key point
• There is a model without the retaining ring.
2. Insert the BH connecting shaft 2 into the washer plain M3.5 3, the BH
lever holder 4, the base holder assy 5, the arm bed, the BH change arm
6 and the BH stopper holder assy 7, and then tighten the screw 1.
*Key point
• Check that hang the hook part 8 of the BH connecting shaft
2 on the notch part of the BH lever holder 4.
3. Attach the retaining ring E2.5 9 to the BH connecting shaft 2.
*Key point
• There is a model without the retaining ring.
1
3 1
4
2
8
4
5
2
2
7
6
2
9
1
Set Screw, Socket (FT)
M4X10

Brother LX27NT Specifications

General

Type	Manual sewing machine
Sewing speed	800
Stitch width	5 mm
Feed dog type	5 point
Product color	White
Buttonhole type	1 Step
Number of programs	-
Number of button holes	1
Sewing machine functions	Sewing
Automatic needle threader	Yes
Number of stitch patterns	27
Power supply type	Electric
