2 - 19
Feed control mechanism
Basic of Disassembly
Basic
Basic

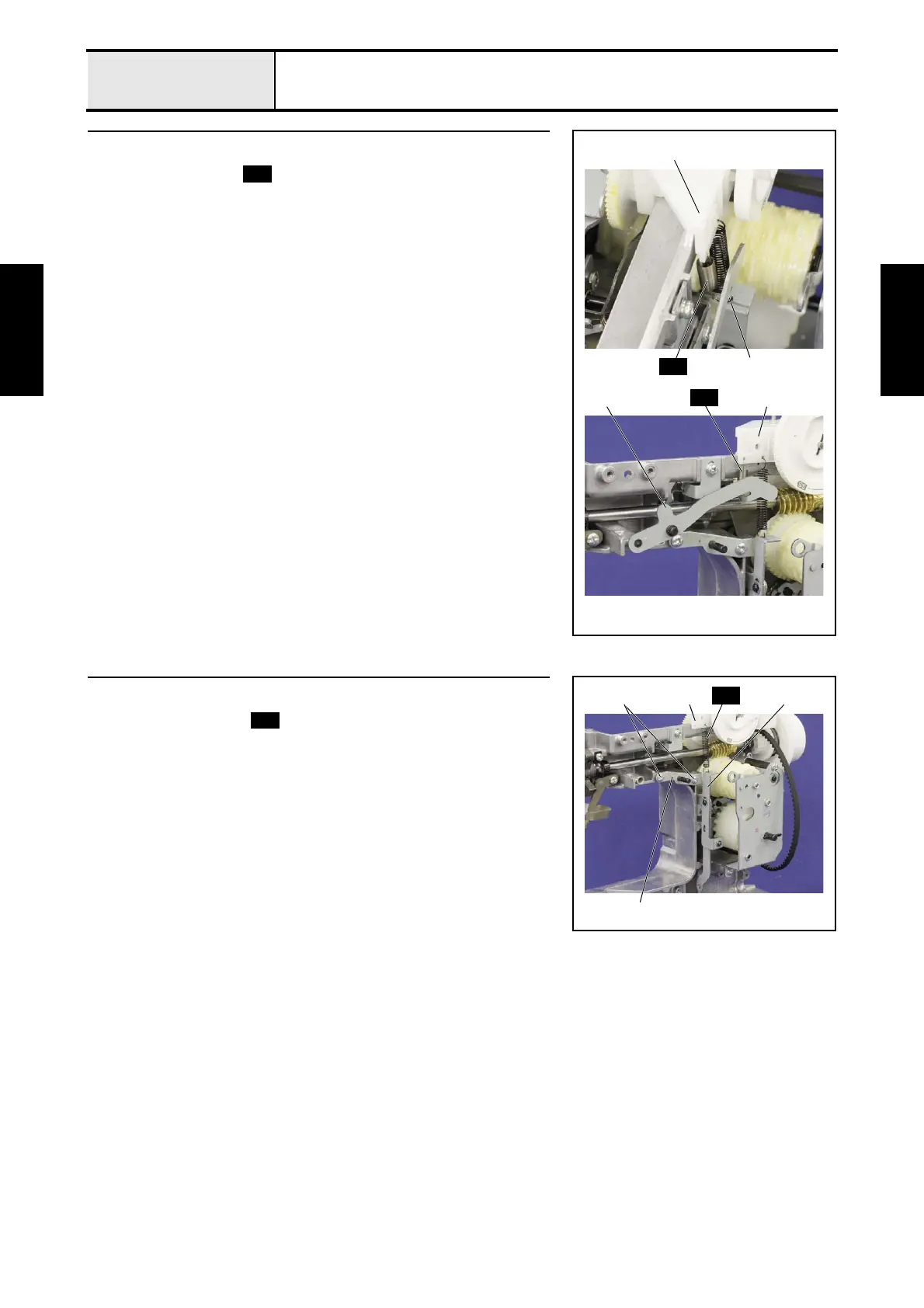

2 Removal of Reverse sewing lever B assy
1. Remove the spring from the reverse sewing lever B assy 1 and the
feed bracket sub assy 2.
2. Remove the reverse sewing lever B assy 1 from the arm bed.
1
2
S01
1
2
S01
S01
3 Removal of Lever holder assy
1. Remove the spring from the connecting rod U 1 and the feed
bracket sub assy 2.
2. Remove the 2 screws 1, and then remove the lever holder assy 3.
Refer to 3 - 27 of the Disassembly.
3
1 1
S02
2
S02
