6 - 3
Special Instructions of Wiring
Special Instructions
of Wiring
Special Instructions
of Wiring
Motor 3P supply assy

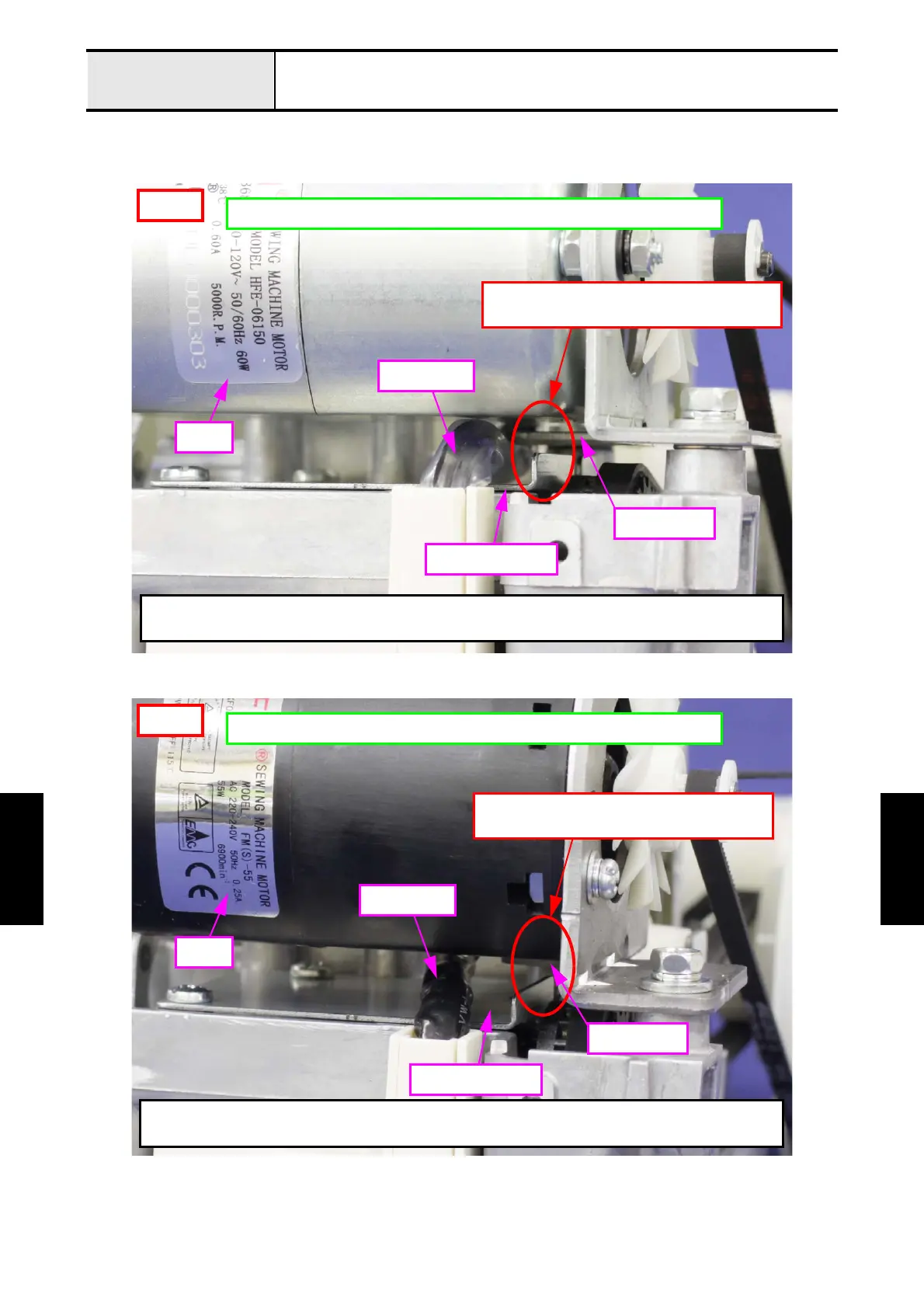

2. Wiring of motor cable
 120V specification
 220 to 240V specification
Do not pass the motor cable through between
the lower shaft plate and the motor holder.
Pass the motor cable through between the motor and the lower shaft plate.
Motor
Motor cable
Motor holder
Lower shaft plate
A view
CAUTION : If attach the motor cable through between the lower shaft plate and the motor holder,
damage the cable. Doing this might cause an electrical shock.
CAUTION : If attach the motor cable through between the lower shaft plate and the motor holder,
damage the cable. Doing this might cause an electrical shock.
Pass the motor cable through between the motor and the lower shaft plate.
Motor
Motor cable
Motor holder
Lower shaft plate
A view
Do not pass the motor cable through between
the lower shaft plate and the motor holder.

Brother LX27NT Specifications

General

Type	Manual sewing machine
Sewing speed	800
Stitch width	5 mm
Feed dog type	5 point
Product color	White
Buttonhole type	1 Step
Number of programs	-
Number of button holes	1
Sewing machine functions	Sewing
Automatic needle threader	Yes
Number of stitch patterns	27
Power supply type	Electric
