3 - 18

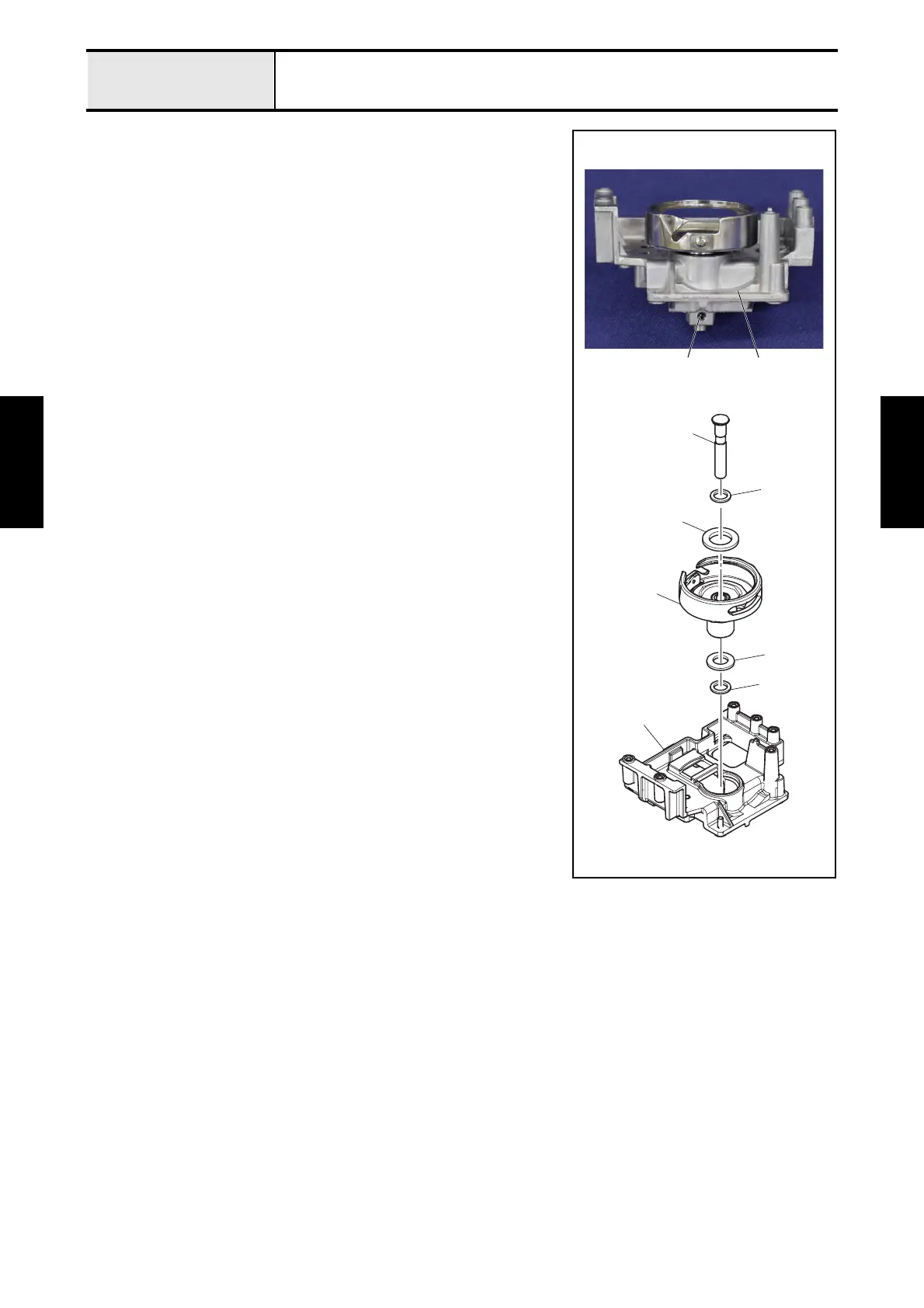

Application of Disassembly Feed unit
Application Application
 Metal model
1. Remove the screw 1 from the feed holder 1.
2. Pull out the outer rotary hook shaft 2 to remove the spacer 3, the magnet
4, the outer rotary hook assy 5, the washer 6 6 and the spacer 7 from
the feed holder 1.
<In case of plastic model, refer to previous page.>
2
3
4
5
1
6
7
11
