f. Removing Seal from the Cleaner Edge

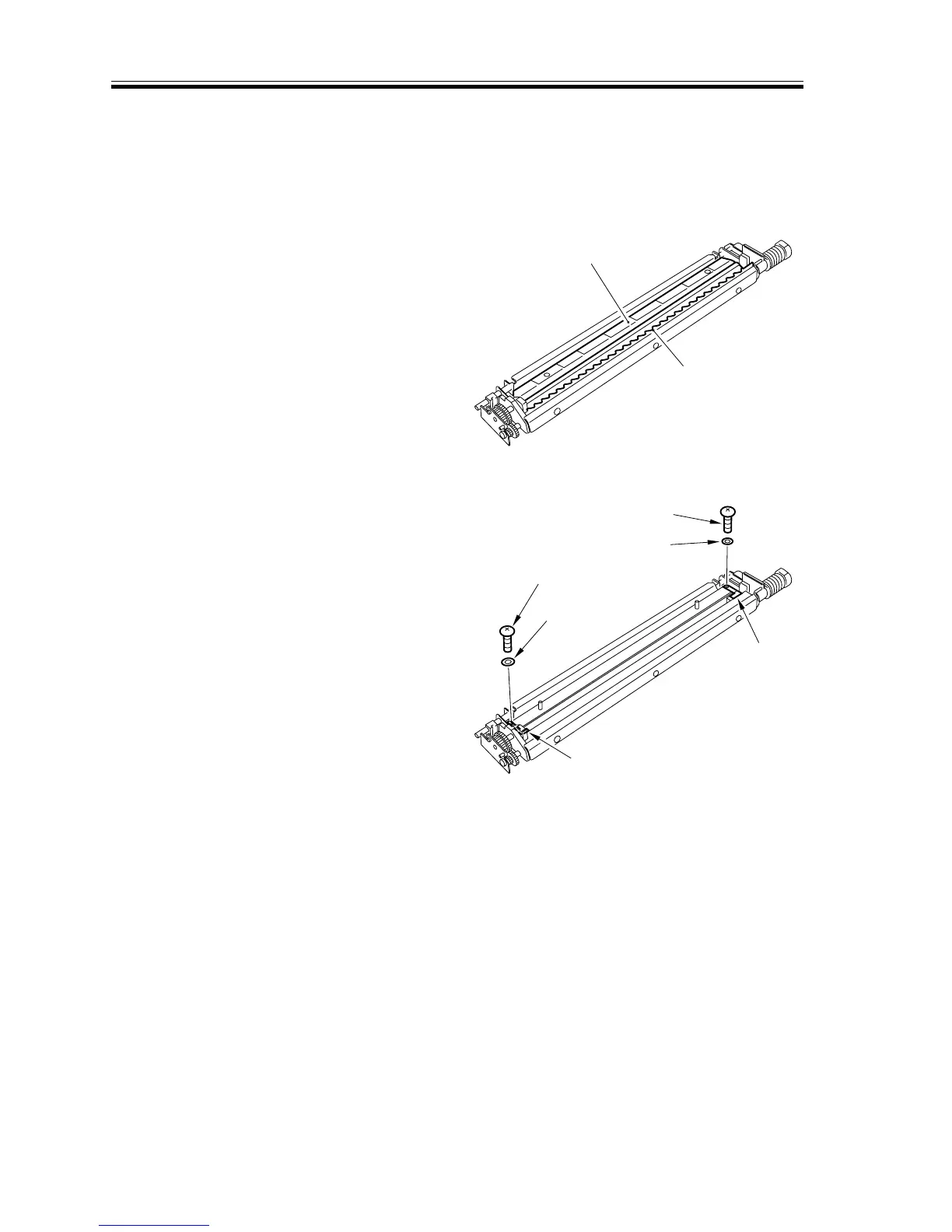

1) Remove the process unit from the
copier. (See the instructions on how to
remove the process unit.)
2) Remove the cleaning blade.
3) Remove the spacer [1] and the scraping
sheet [2].
[1]
[2]
F02-405-31
4) Remove the screw [3] from the front
and the rear, and remove the washer [4];
then, detach the cleaner edge seal [5].
[3]
[3]
[4]
[4]
[5]
[5]
F02-405-32
