2-63
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
REF.

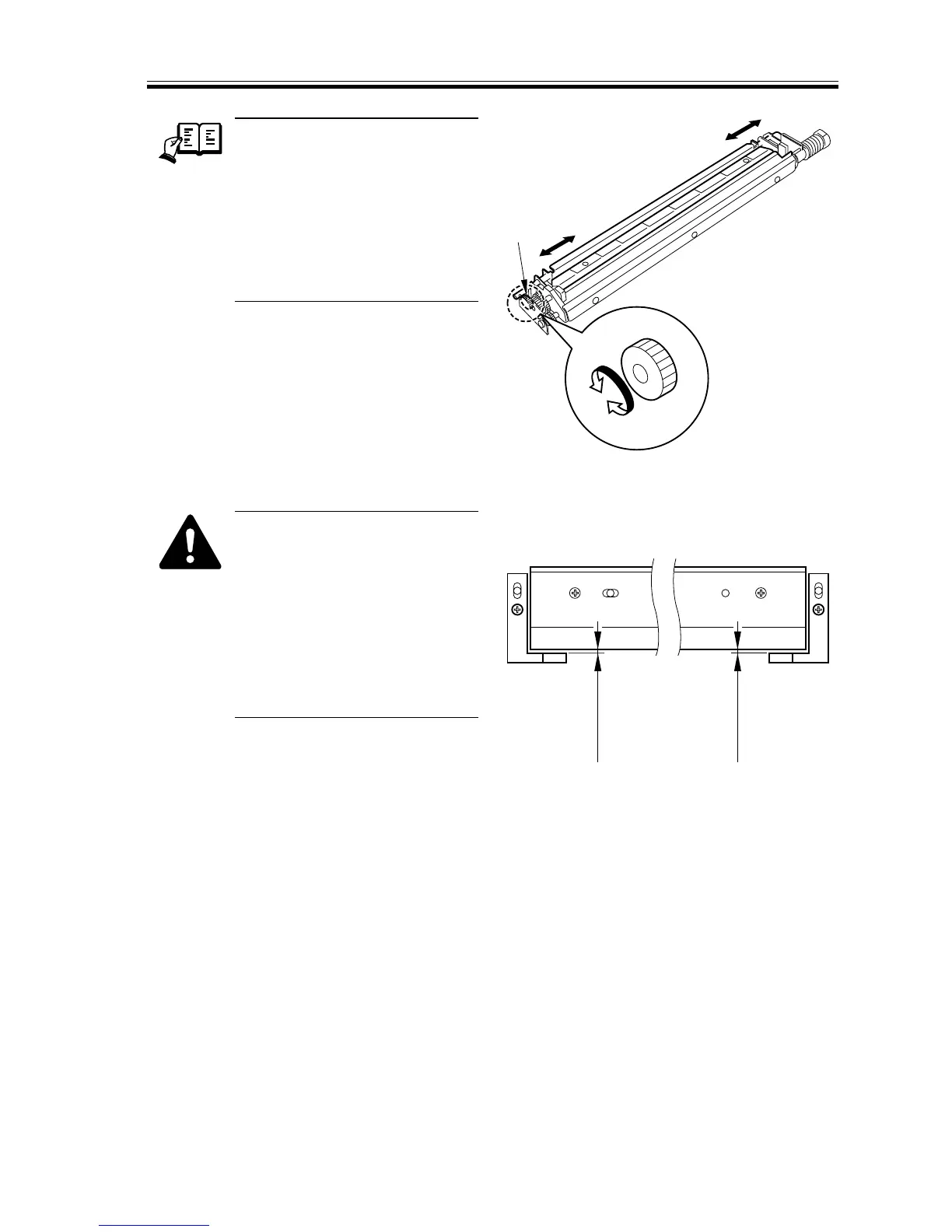

Points to Note When Removing
the Cleaning Blade Seal
■ Turn the reciprocating gear
[3], and shift the blade base
so that a gap will show where
the seal is attached at the edge
of the cleaner to facilitate the
work.
[3]
F02-405-29
Points to Note When Mounting
the Cleaning Blade Seal
■ Make sure that the gap be-
tween the blade and the
cleaning blade seal is about
0.5 mm as shown. Try push-
ing the cleaning blade seal to
be sure that it will not get
trapped by the blade.
0~0.5mm 0~0.5mm
F02-405-30
